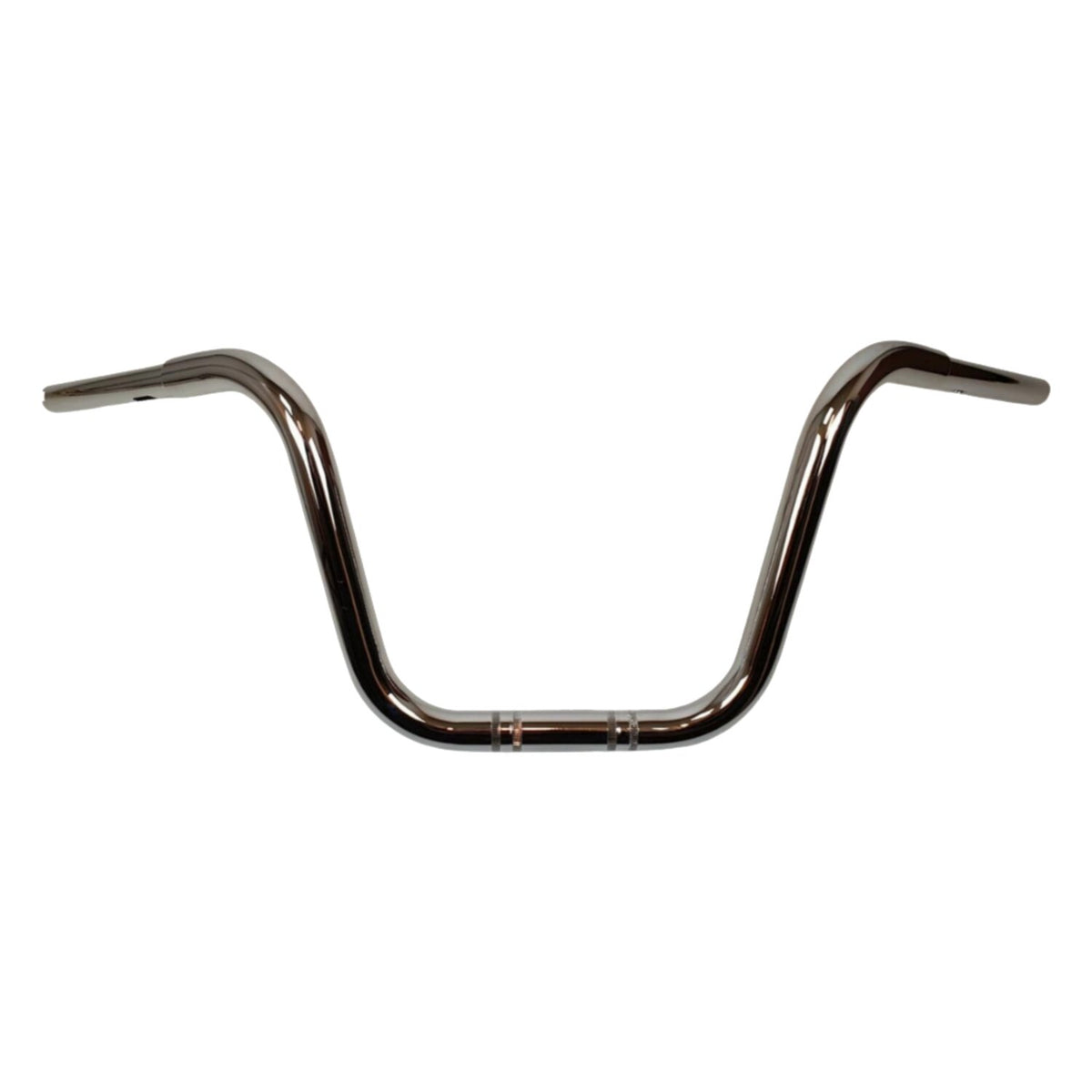

Westland Customs. 1-1/4" Apehanger. Chrome. 11" high
Choose options
The details that matter
Details
Description
Bars are 32mm (1-1/4") diameter and have a 32mm (1-1/4") diameter riser clamp area and a 1" (25.4mm) grip area. Nothing better than an Apehanger to feel true freedom. From style to quality, these EU made Westland bars tick all the boxes!
Note: Cables / wiring / brake lines may require extending.
- 1-1/4" (32mm) diameter handlebar
- 1-1/4" (32mm) diameter riser clamp area
- 1" (25.4mm) diameter grip area

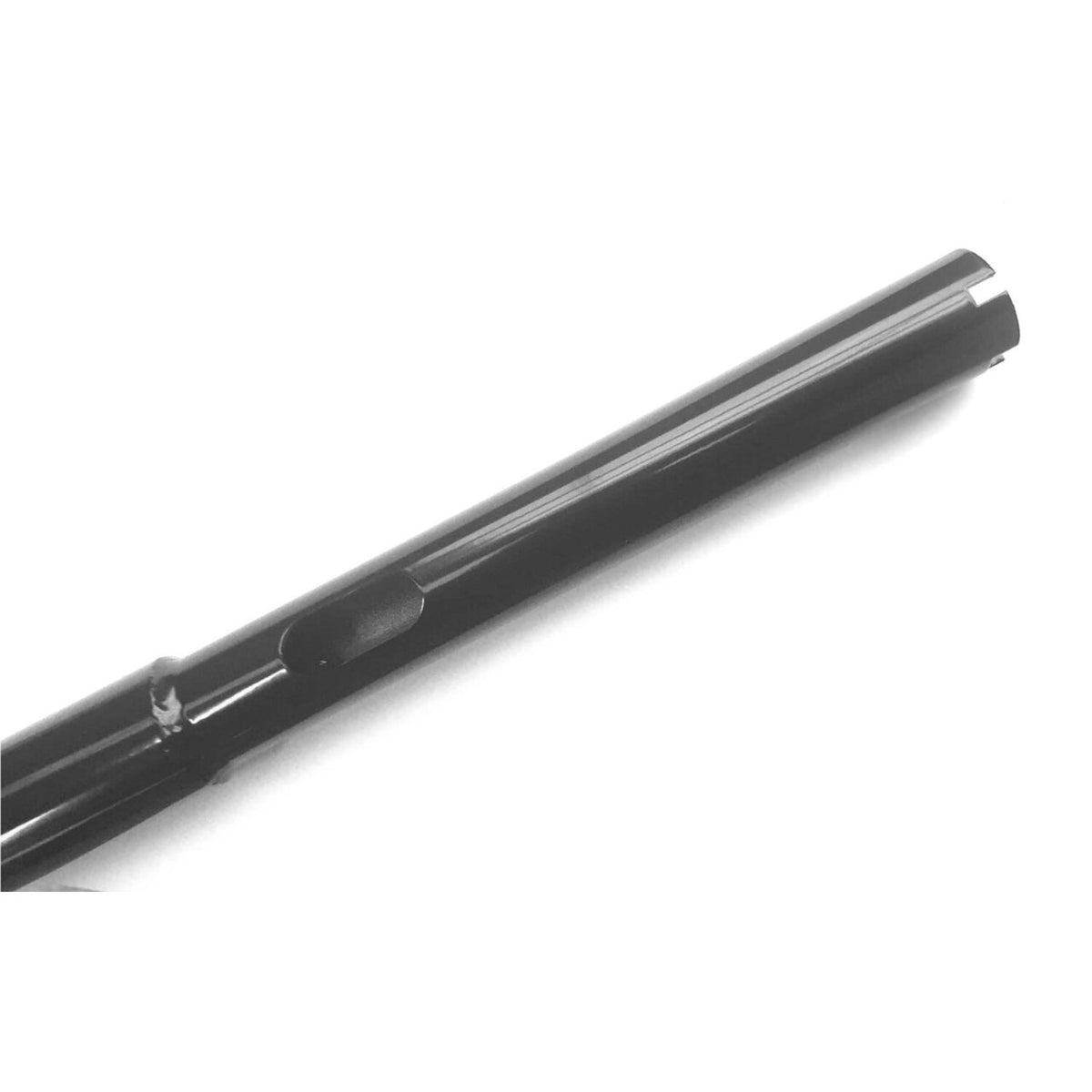

- Slotted for internal wiring
- Notched for H-D e-throttle (TBW / Throttle By Wire).
- Made of certified EN 10305-3 CR1 E195 S5) 3mm thick steel tubing
- Precision TIG welded

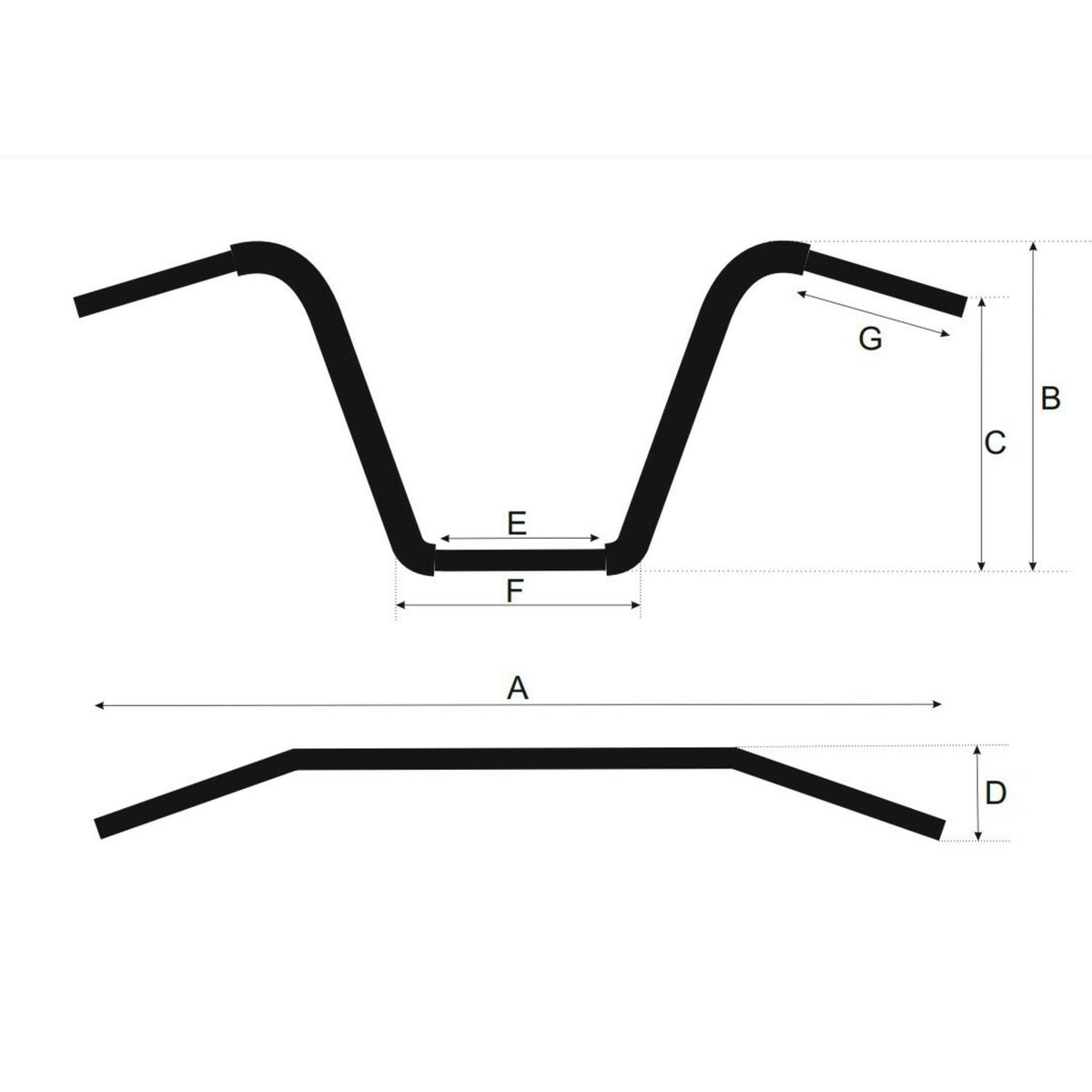

- Dimensions 30cm (11") high handlebar: A 930mm, B 300mm, C 300mm, D 160mm, E 140mm, F 350mm, G 200mm
Specifications
| Unit | 1 |
|---|
Fitment
08-24 Gen1 H-D e-throttle with 1-1/4" I.D. risers (excl. 15-24 FLTR) (NU)
Part numbers
| Supplier SKU | 703826 |
|---|---|
| Manufacturer part | 203205 |
Specifications
| Brand | Westland Customs |
|---|---|
| Category | Handlebars |
Fitment
