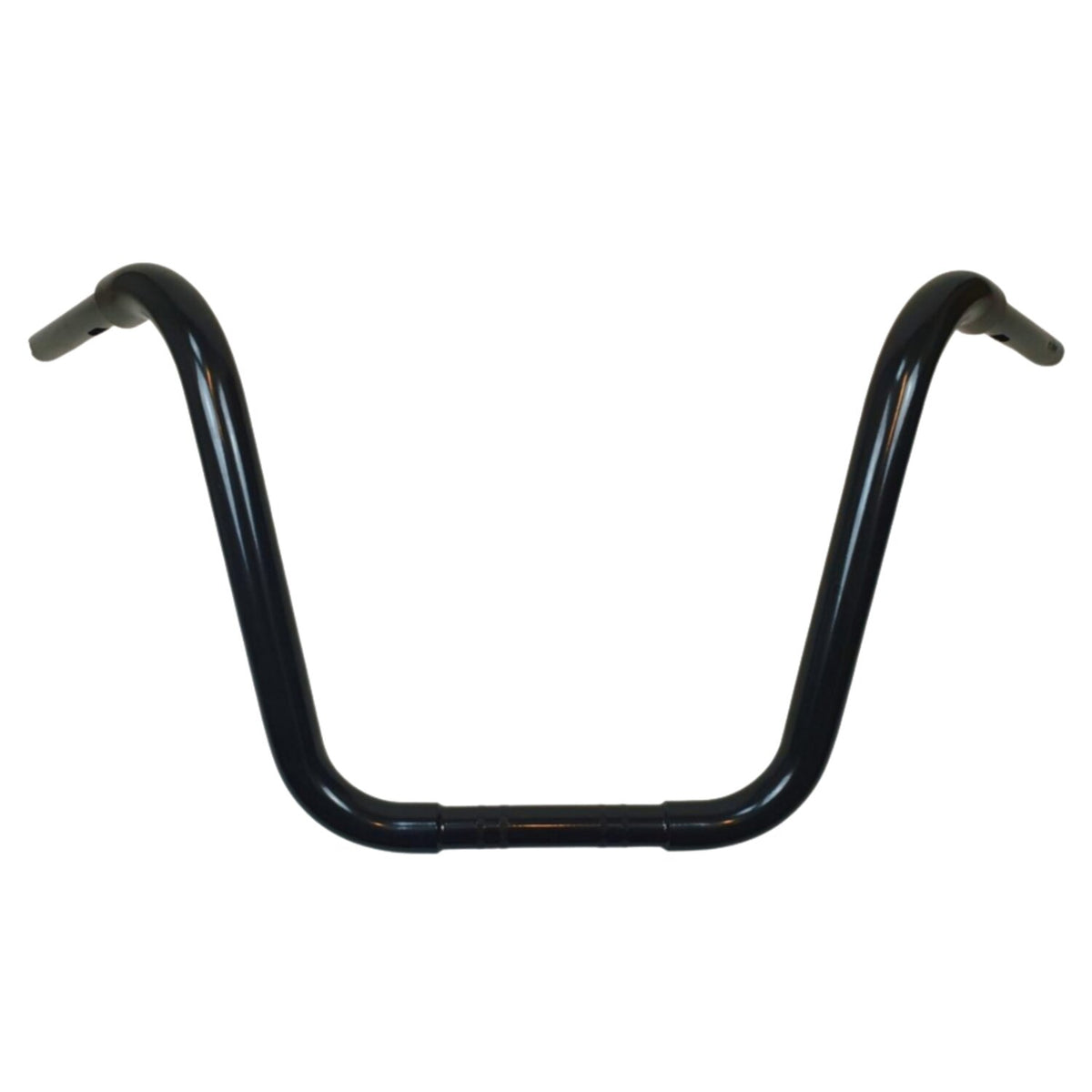

Westland Customs, 1-1/2" Ultra Ape. Black. 16" high

Description

Ultra Ape bars come in an extra thick 38mm (1-1/2") diameter, have a 32mm (1-1/4") diameter riser clamp area and a 1" (25.4mm) grip area. With a powder coated satin gloss black finish. Nothing better than an apehanger to feel true freedom. From style to quality, these EU made Westland bars tick all the boxes!
Note: Cables / wiring / brake lines may require extending.
- 1-1/2" (38mm) diameter handlebar
- 1-1/4" (32mm) diameter riser clamp area
- 1" (25.4mm) diameter grip area

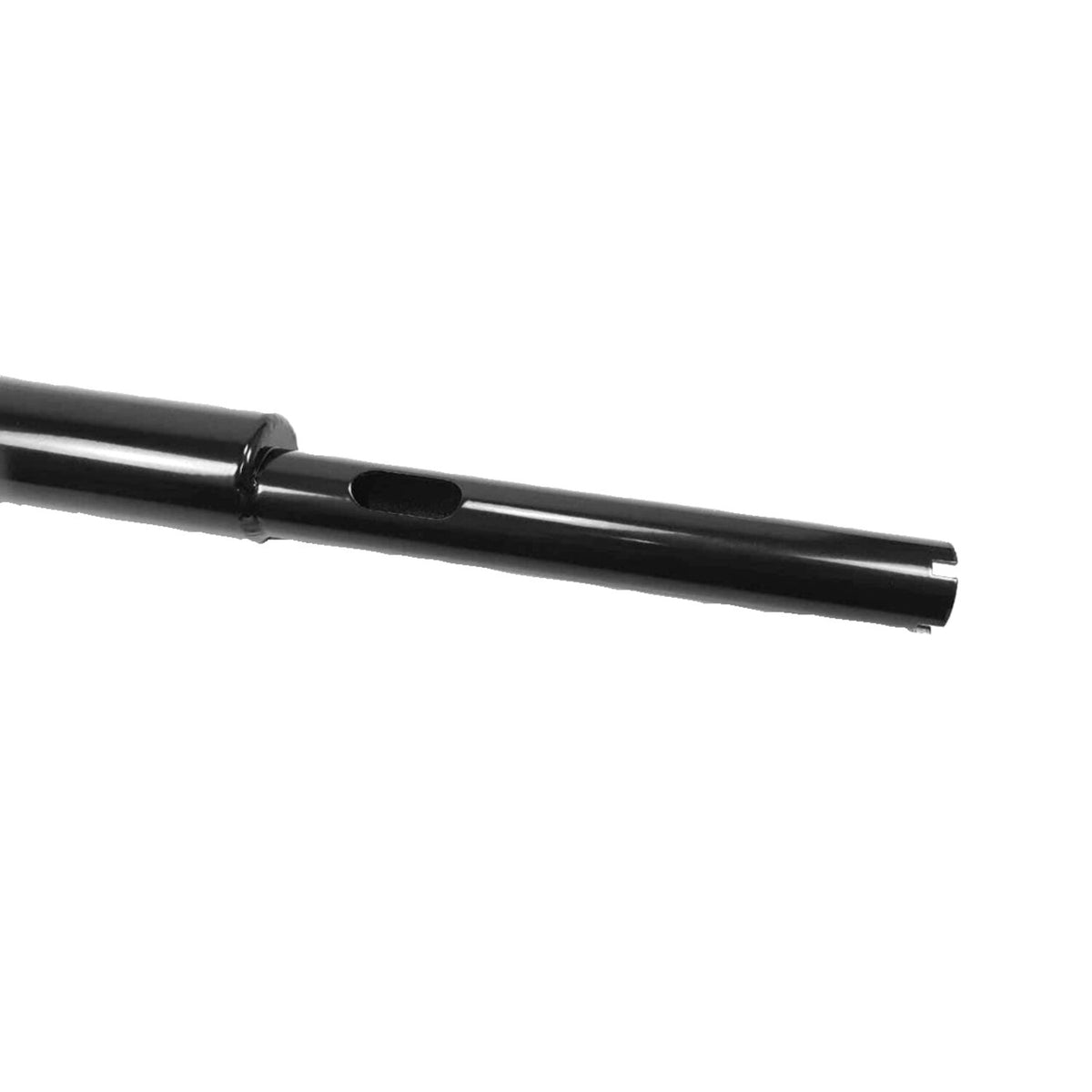

- Slotted/pre-drilled for internal wiring
- Notched for H-D e-throttle (TBW / Throttle By Wire)
- Made of 38x3mm, 32x3mm and 25.4x2mm EN 10305-3 CR1 E195 S5 certified cold rolled steel tubing
- Precision TIG welded

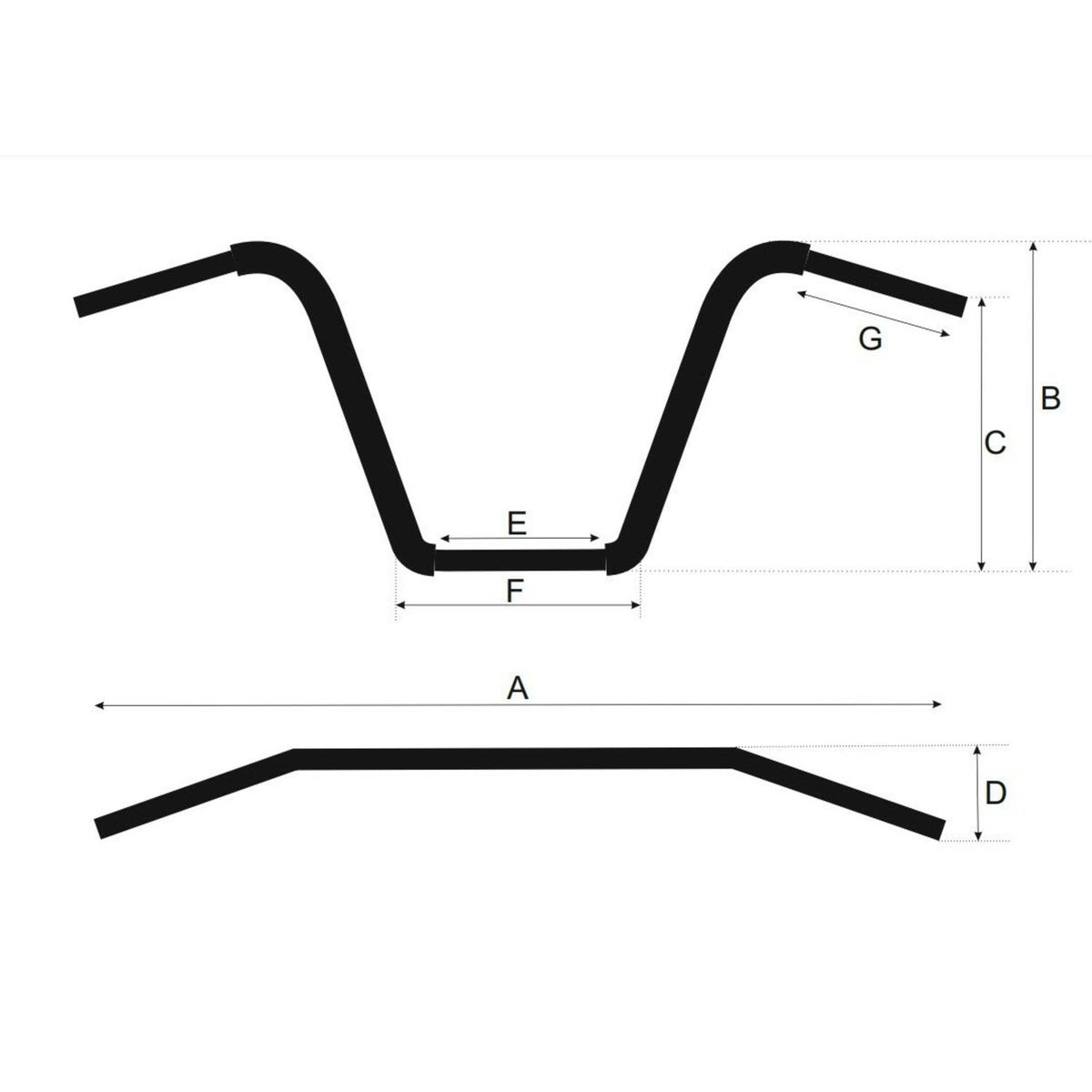

- Dimensions 41cm (16") high handlebar in mm: A= 900, B= 410, C= 370, D= 250, E= 155, F= 350, G= 200

Specifications

Fitment

08-24 Gen1 H-D e-throttle with 1-1/4" I.D. risers (excl. 15-24 FLTR) (NU)

Part numbers
