ThunderMax Pigtail Harness — 309-424
EU Stock
Estimated delivery: 7–10 days
ThunderMax Pigtail Harness — 309-424
Sale price£24.62
Choose options
ThunderMax Pigtail Harness — 309-424
Sale price£24.62
The details that matter
Details
Description

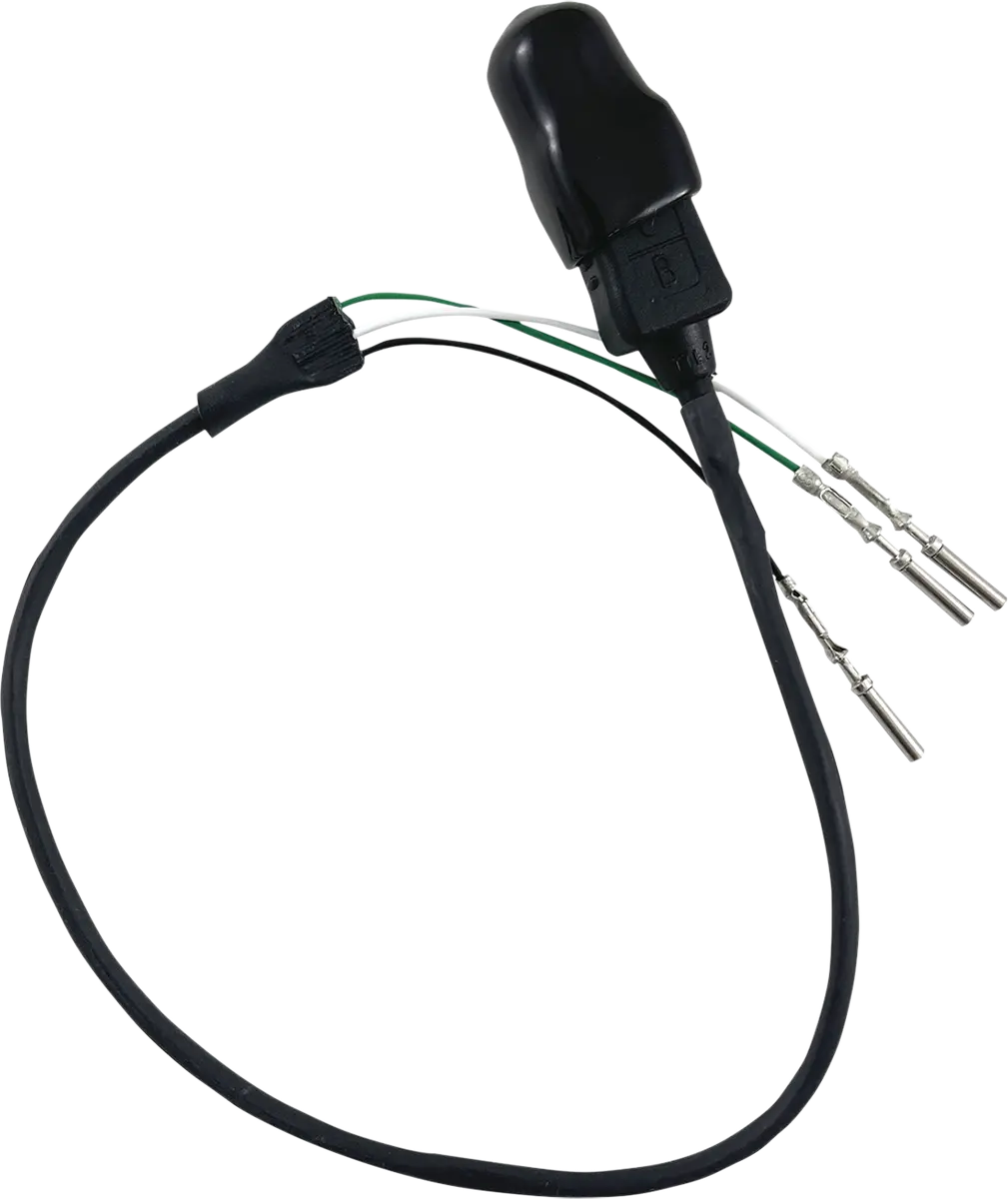

ThunderMax Pigtail Harness (manufacturer part 309-424) is listed for the Harley-Davidson applications shown below. Key specifications: USB; Black. Check the exact model, year and market before ordering.
- Handy for motorcycle models with tight clearances around the ECM such as Dyna, Softail Rocker and '02-'05 V-Rod models
- Allows a second port for the communication cable connection to the ThunderMax
- Made in the USA
Requires ThunderMax ECM with mini USB communication port (beginning November 2012). Will not work on previous model ThunderMax ECM or part # 1020-0836 (Touring TBW units). Installed into the bike's wiring harness at the 36-pin ECM connector (connection requires harness plug disassembly; two terminated wires are inserted into two unused ports in the 36-pin connector, and a ground wire added).
Specifications
| Type | USB |
|---|---|
| Base Color | Black| White |
| Units | Each |
| Product Name | Pigtail Harness |
| Riding Style | Street |
| Color/Finish | Black |
Fitment
View exact Harley-Davidson applications
| Model | Years | Market | Position / notes |
|---|---|---|---|
| Harley Davidson FLHTCI 1450 EFI Electra Glide Classic | 2004 | ALL | |
| Harley Davidson FLHTCI 1450 EFI Electra Glide Classic | 2003, 2005, 2006 | AMERICA | |
| Harley Davidson FLHTI 1450 EFI Electra Glide | 2004, 2005, 2006 | ALL | |
| Harley Davidson FLSTCI 1450 EFI Heritage Softail Classic | 2001, 2002, 2003, 2004, 2005, 2006 | ALL | |
| Harley Davidson FLSTFB 1584 Fat Boy Lo | 2010 | AMERICA | |
| Harley Davidson FLSTFI 1450 EFI Fat Boy | 2002, 2003, 2004, 2005, 2006 | ALL | |
| Harley Davidson FLSTFI 1550 EFI Fat Boy 15th Anniversary | 2005 | ALL | |
| Harley Davidson FLSTI 1450 EFI Heritage Softail | 2006 | ALL | |
| Harley Davidson FLSTNI 1450 EFI Softail Deluxe | 2005, 2006 | ALL | |
| Harley Davidson FLSTSB 1584 Cross Bones Springer | 2008, 2009, 2010, 2011 | EUROPE | |
| Harley Davidson FLSTSCI 1450 EFI Softail Springer Classic | 2005, 2006 | ALL | |
| Harley Davidson FLSTSI 1450 EFI Heritage Softail Springer | 2003 | AMERICA | |
| Harley Davidson FXCWC 1584 Rocker C | 2008, 2009, 2010 | ALL | |
| Harley Davidson FXDB 1584 Dyna Street Bob | 2007, 2008, 2009, 2010, 2011 | ALL | |
| Harley Davidson FXDCI 1450 EFI Dyna Super Glide Custom | 2005, 2006 | ALL | |
| Harley Davidson FXDF 1584 Dyna Fat Bob | 2008, 2009, 2010, 2011 | ALL | |
| Harley Davidson FXDI 1450 EFI Dyna Super Glide | 2004 | ALL | |
| Harley Davidson FXDI 1450 EFI Dyna Super Glide | 2005, 2006 | AMERICA | |
| Harley Davidson FXDI35 1450 EFI Dyna Super Glide 35th Anniversary | 2006 | ALL | |
| Harley Davidson FXDL 1584 Dyna Low Rider | 2007, 2008, 2009 | ALL | |
| Harley Davidson FXDWGI 1450 EFI Dyna Wide Glide | 2004, 2005, 2006 | ALL | |
| Harley Davidson FXDXI 1450 EFI Dyna Super Glide Sport | 2004, 2005 | ALL | |
| Harley Davidson FXSTBI 1450 EFI Softail Night Train | 2004, 2005, 2006 | ALL | |
| Harley Davidson FXSTBI 1450 EFI Softail Night Train | 2003 | AMERICA | |
| Harley Davidson FXSTDI 1450 EFI Softail Deuce | 2001, 2002, 2003, 2004, 2005 | ALL | |
| Harley Davidson FXSTDI 1450 EFI Softail Deuce | 2006 | AMERICA | |
| Harley Davidson FXSTI 1450 EFI Softail | 2004, 2005, 2006 | ALL | |
| Harley Davidson FXSTI 1450 EFI Softail | 2003 | AMERICA | |
| Harley Davidson FXSTSI 1450 EFI Softail Springer | 2004, 2005, 2006 | ALL | |
| Harley Davidson FXSTSI 1450 EFI Softail Springer | 2003 | AMERICA | |
| Harley Davidson FXSTSSE3 1800 Softail Springer CVO | 2009 | ALL | |
| Harley Davidson XL 1200 L Low | 2007, 2008, 2009 | ALL | |
| Harley Davidson XL 1200 N Nightster | 2007 | AMERICA | |
| Harley Davidson XL 1200 N Nightster | 2008, 2009, 2010, 2011, 2012 | ALL | |
| Harley Davidson XL 1200 V Seventy-Two | 2012, 2013 | ALL | |
| Harley Davidson XL 1200 X Forty-Eight | 2010, 2011, 2012, 2013 | ALL | |
| Harley Davidson XL 883 L Super Low | 2011, 2012, 2013 | ALL | |
| Harley Davidson XL 883 N Iron | 2009, 2010, 2011, 2012, 2013 | ALL | |
| Harley Davidson XL50 1200 50th Anniversary | 2007 | AMERICA | |
| Harley Davidson XR 1200 | 2009, 2010 | ALL |
Part Numbers
| Supplier SKU (Parts Europe) | 10201855 |
|---|---|
| Manufacturer Part Number | 309-424 |
Specifications
| Brand | THUNDERMAX |
|---|
