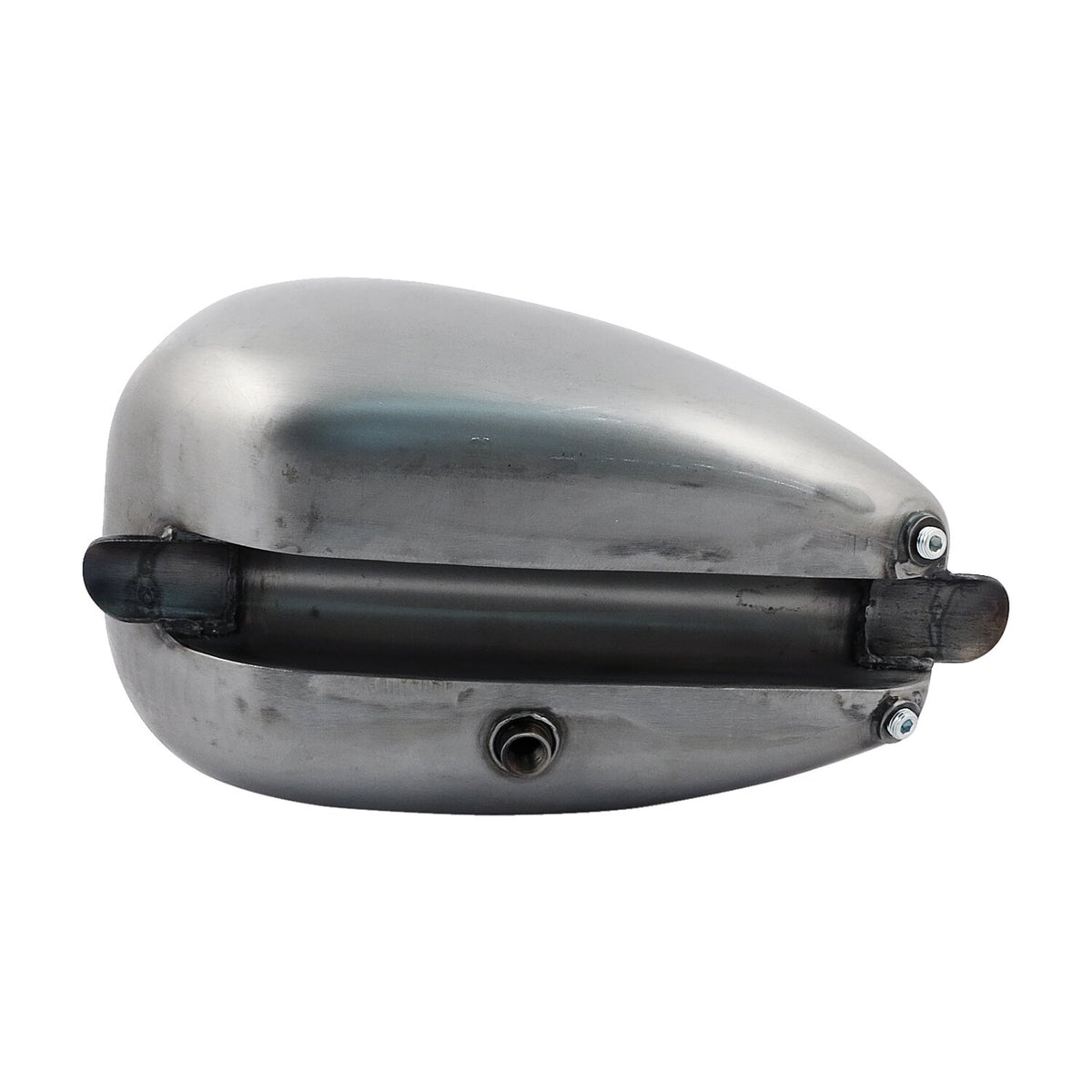

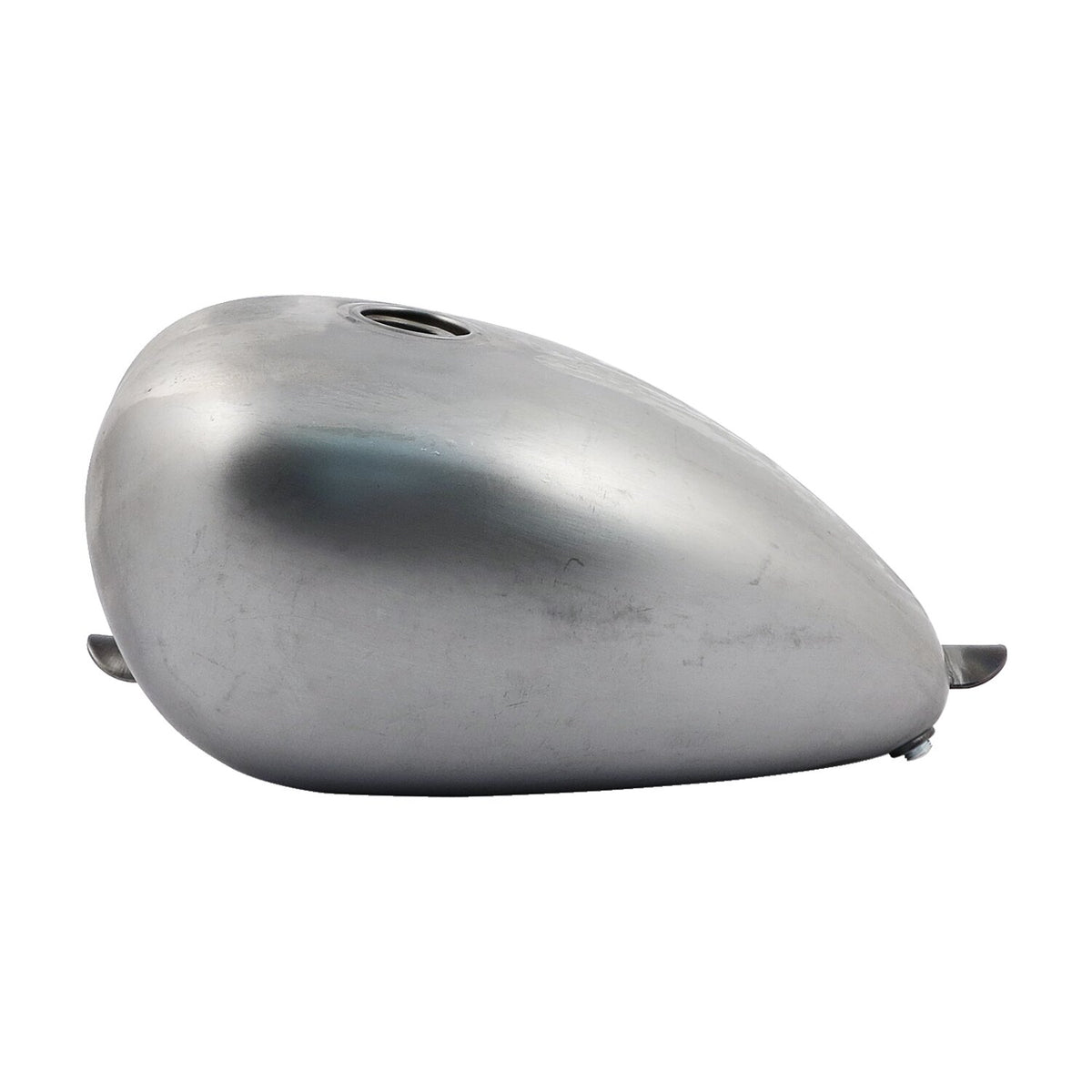

'True Egg' gas tank, 1.8 gallon low tunnel
Choose options
The details that matter
Details
Description
1.8 gallon (6.8 liter). Takes 83-up screw type gas caps. Fuel tanks are half way 3/8" internal threaded and 1/4" internal threaded on the rear end, on both left & right side. Approx. dimensions: 14.7" (37cm) long x 8.66" (22cm) wide. Tunnel width 2". Depth front 2", rear 1".
Note: It is advised to pressure test, seal and test fit all tanks before tanks are painted and installed. Some tanks are painted, but this coat is applied for rust prevention during storage only.
Note: Dimensions are approximate and for reference only.
Specifications
| Unit | 1 |
|---|
Fitment
Universal
Part numbers
| Supplier SKU | 516592 |
|---|---|
| Manufacturer part |
Specifications
| Brand | MCS |
|---|---|
| Category | Gastanks |
Fitment
Part numbers
Need a hand choosing? Talk to the workshop
