Tecmate OptiMATE Monitor O-127 cable. Lithium

Description

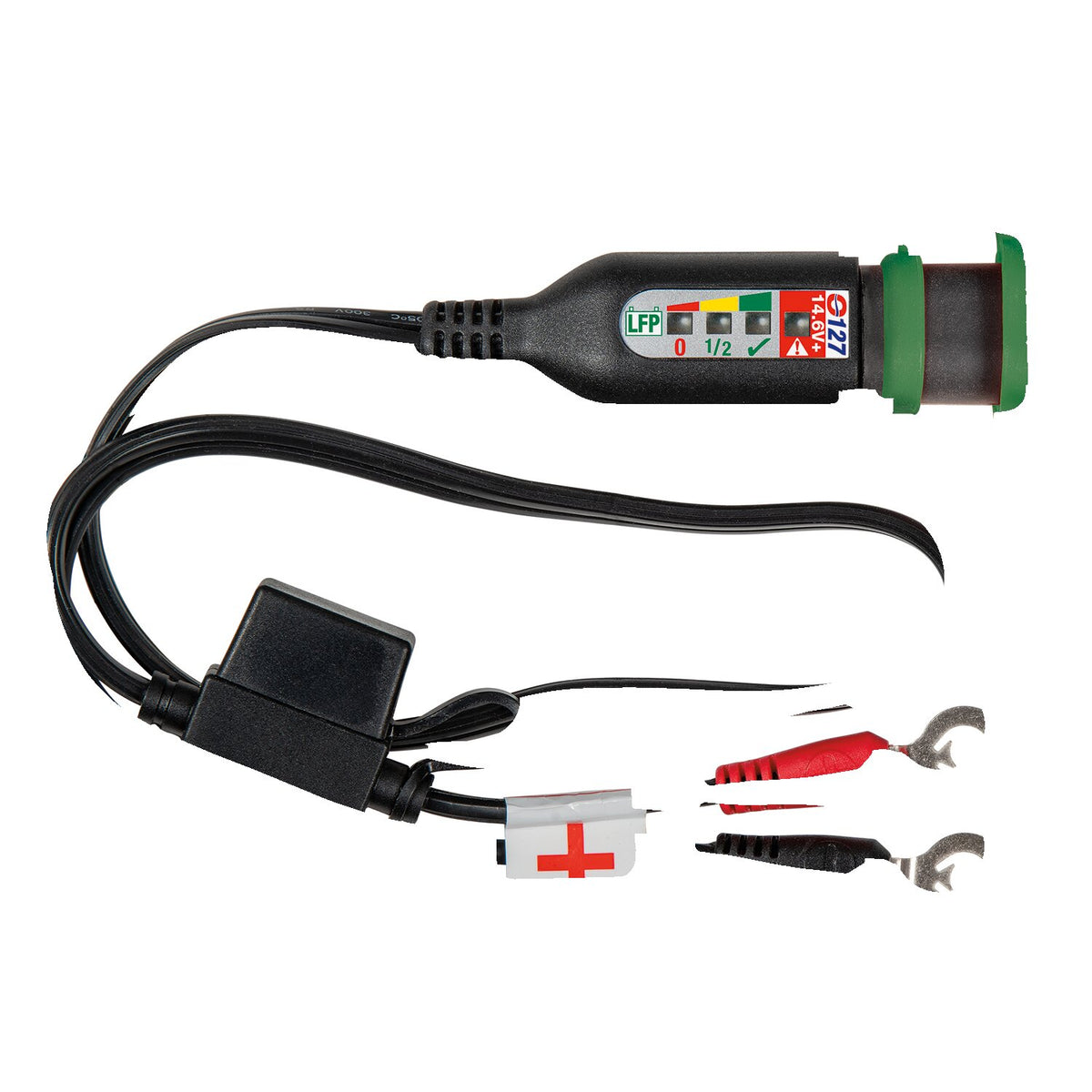

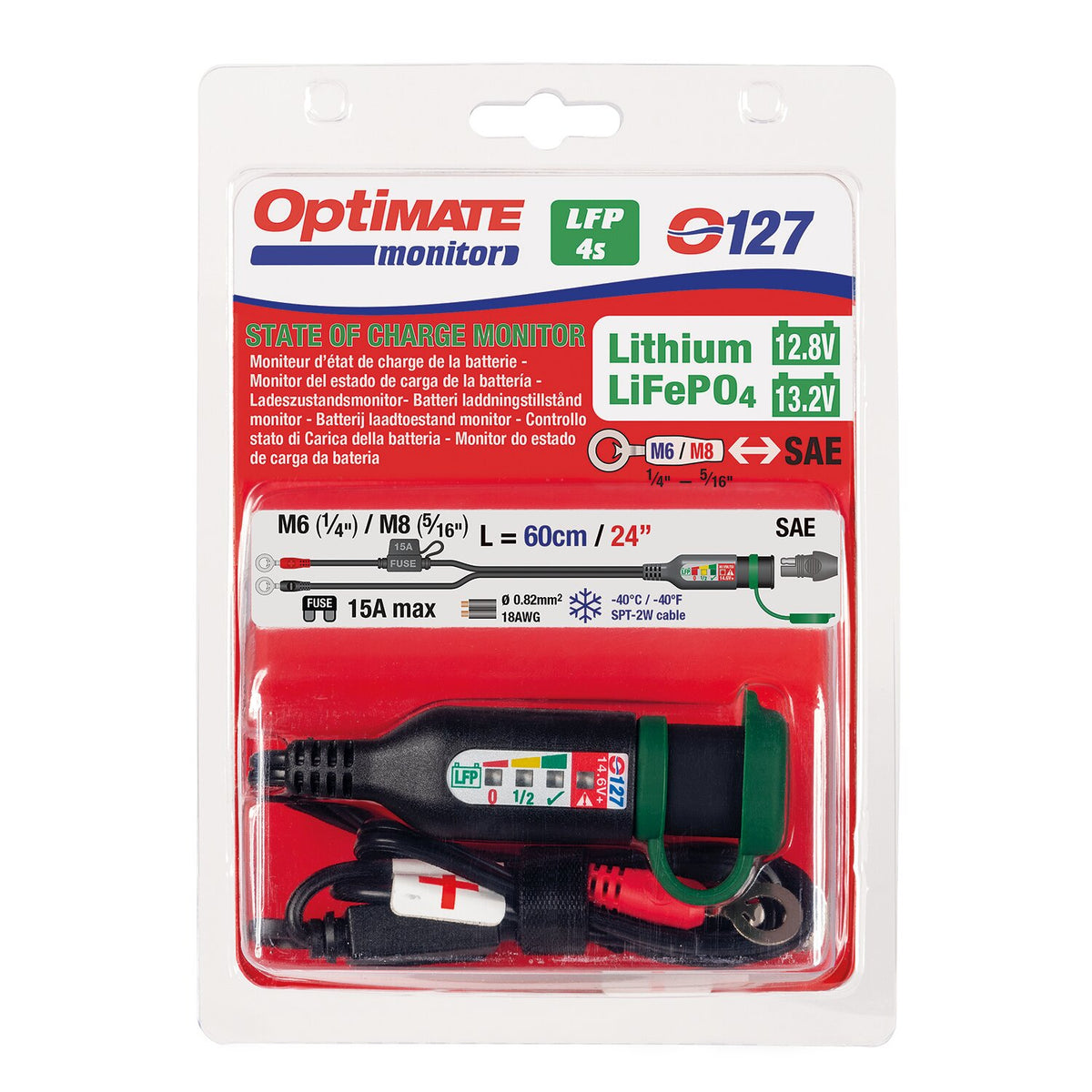

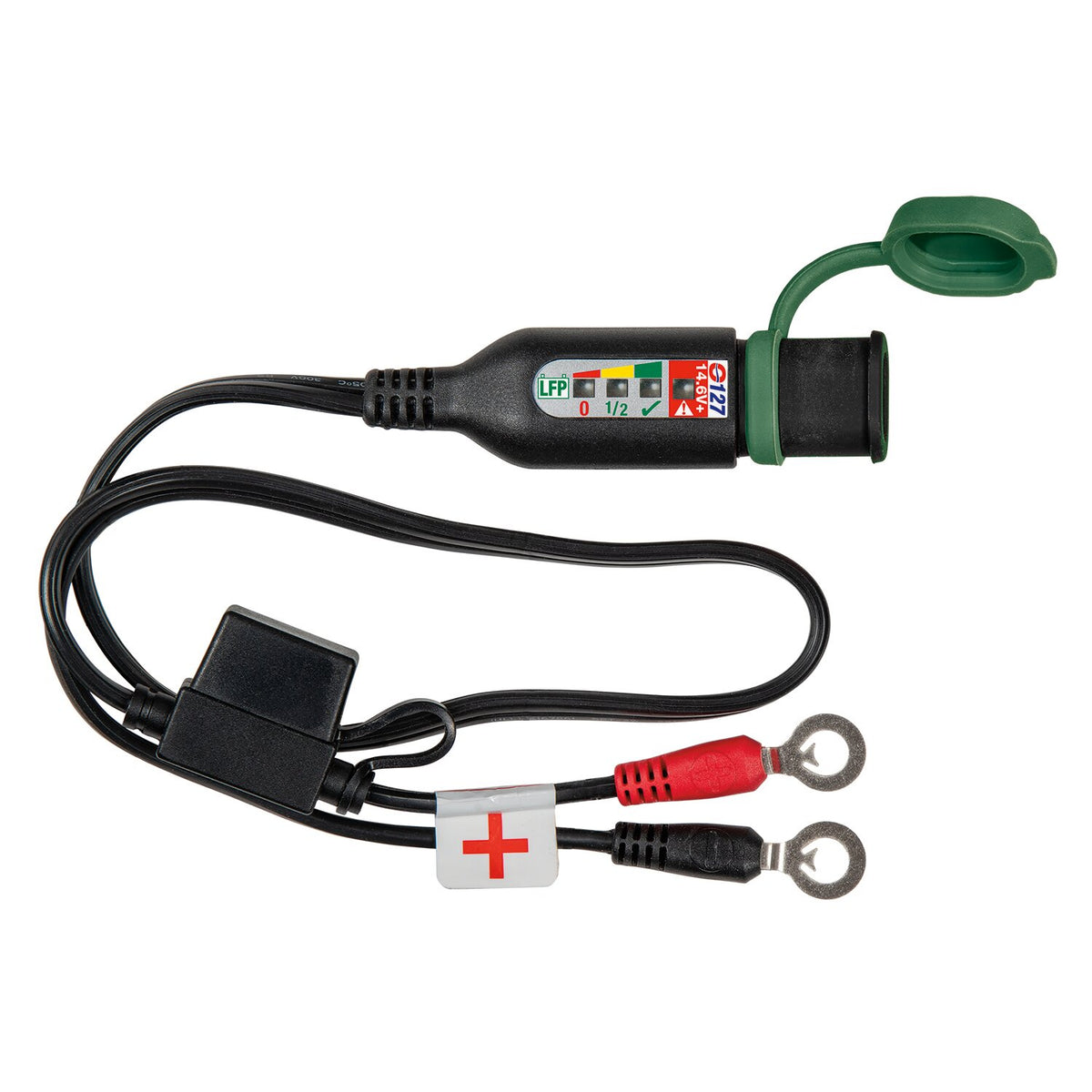

Monitor cable for Lithium batteries. 60cm long. With M6 / 1/4" ringlets to 2-pin SAE connector with waterproof sealing cap.

- Micro processor driven 4 LED system used to monitor battery status.

- Informs you if the battery is in a good/needs charge/not good condition

- When the engine is running it also informs you if the vehicle's charging system is working. Then the LED mode changes to an arrow, with the pointer reaching the LED matching the voltage being delivered by charging system. No arrow means there is no charge

- A bright red LED warns that the charge level has reached 50% and that it is time to recharge that battery

- During vehicle storage the LED matching the battery’s state of charge will blink every 5 seconds, drawing very little power (0.2 milli-amps) to do so, in fact 20-100 times less than the vehicle’s circuitry is drawing from the battery at the same time

- Fast blink mode for first 15 seconds after connection to battery, for quick check of multiple batteries (e.g. vehicles on showroom floor)

Specifications

Fitment

Contact the workshop to confirm suitability for your application.

Part numbers
