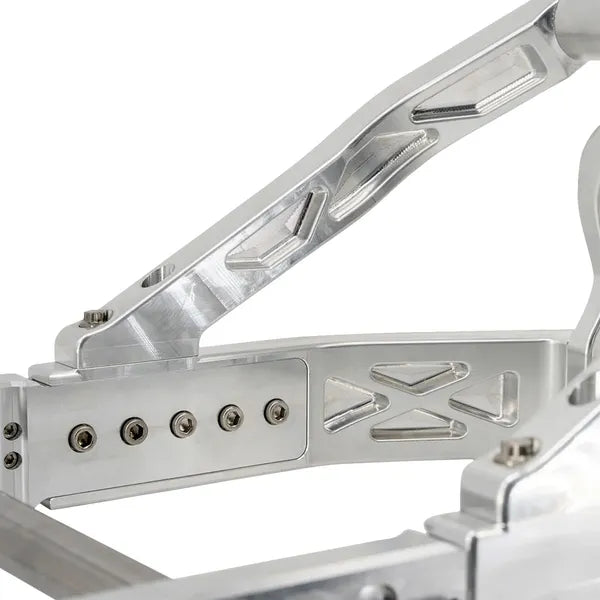

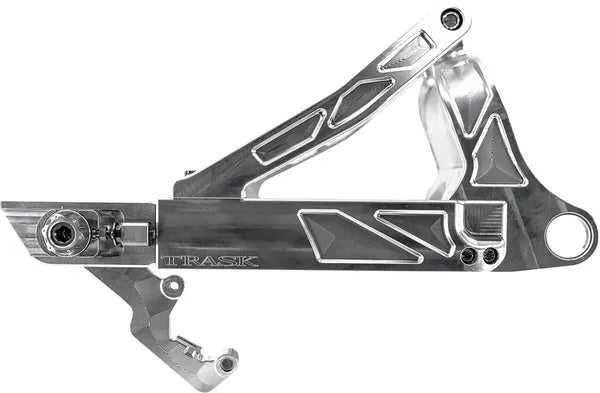

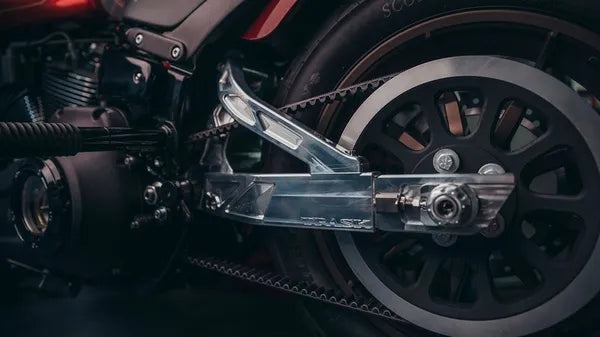

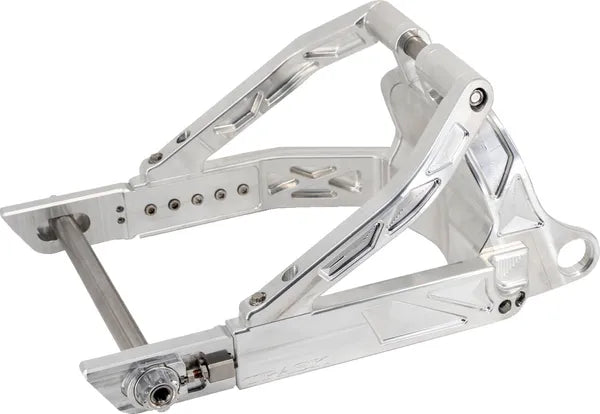

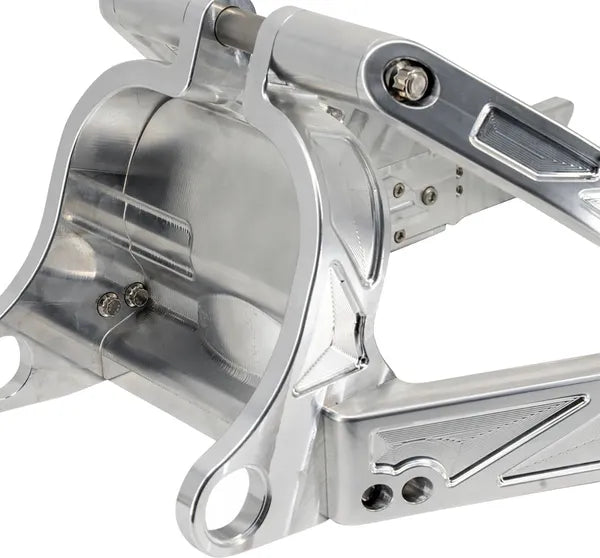

Trask Swing Arm — TM-3220
EU Stock
Estimated delivery: 7–10 days
Trask Swing Arm — TM-3220
Sale price£3,616.48
Choose options
Trask Swing Arm — TM-3220
Sale price£3,616.48
The details that matter
Details
Description
Trask Swing Arm (manufacturer part TM-3220) is listed for the Harley-Davidson applications shown below. Key specifications: Raw. Check the exact model, year and market before ordering.
- Precision machined from Billet T6061 Aluminum
- Race inspired design to increase rigidity while reducing weight
- Pocketed joints are engineered for maximum strength by eliminating the need for welding
- 100% bolt on factory replacement for seamless installation
- Includes Titanium axle and hardware for superior strength and weight savings
- Accepts OEM brake caliper with supplied bracket
- Includes new spherical bearings
- Come unassembled and in a raw machined finish to allow for custom finishing options.
- Please use caution when custom finishing, anodizing is recommended and please use caution when powder coating mating surfaces.
- If converting to a chain drive system, a custom chain slider should be fitted to prevent chain wear on the swingarm.
Specifications
| Units | Each |
|---|---|
| Color/Finish | Raw |
| Product Name | Swingarm |
| Model | Assault |
| Riding Style | Street |
Fitment
View exact Harley-Davidson applications
| Model | Years | Market | Position / notes |
|---|---|---|---|
| Harley Davidson FLDE 1750 ABS Softail Deluxe 107 | 2018, 2019, 2020 | ALL | |
| Harley Davidson FLFB 1750 ABS Softail Fat Boy 107 | 2018, 2019, 2020 | ALL | |
| Harley Davidson FLFBS 1868 ABS Softail Fat Boy 114 | 2018, 2019, 2020, 2021, 2022, 2023, 2024 | ALL | |
| Harley Davidson FLFBS 1868 ABS Softail Fat Boy Anniversary (ANV) 114 | 2018 | ALL | |
| Harley Davidson FLFBS 1868 ABS Softail Fat Boy Anniversary (ANX) 114 | 2018 | ALL | |
| Harley Davidson FLFBS 1923 ABS Softail Fat Boy 117 | 2025 | ALL | |
| Harley Davidson FLHC 1750 ABS Softail Heritage Classic 107 | 2018, 2019, 2020, 2021, 2022 | ALL | |
| Harley Davidson FLHCS 1868 ABS Softail Heritage Classic 114 | 2018, 2019, 2020, 2021, 2022, 2023, 2024 | ALL | |
| Harley Davidson FLHCS 1868 ABS Softail Heritage Classic Anniversary 114 | 2018 | ALL | |
| Harley Davidson FLHCS 1923 ABS Softail Heritage Classic 117 | 2025 | ALL | |
| Harley Davidson FLHD 1923 ABS Deadwood 117 | 2026 | ALL | |
| Harley Davidson FLSB 1750 ABS Softail Sport Glide 107 | 2023, 2024 | ALL | |
| Harley Davidson FLSB 1750 ABS Softail Sport Glide 107 | 2018, 2019, 2020, 2021, 2022 | ALL | |
| Harley Davidson FLSL 1750 ABS Softail Slim 107 | 2018, 2019, 2020, 2021 | ALL | |
| Harley Davidson FLSTFI 1923 ABS Softail Fat Boy Gray Ghost 117 | 2025 | ALL | |
| Harley Davidson FXBB 1750 ABS Softail Street Bob 107 | 2018, 2019, 2020 | ALL | |
| Harley Davidson FXBB 1923 ABS Softail Street Bob 117 | 2025 | ALL | |
| Harley Davidson FXBBS 1868 Softail Street Bob 114 | 2021 | AMERICA | |
| Harley Davidson FXBBS 1868 ABS Softail Street Bob 114 | 2021, 2022, 2023, 2024 | ALL | |
| Harley Davidson FXBR 1750 ABS Softail Breakout 107 | 2018, 2019, 2020 | ALL | |
| Harley Davidson FXBR 1923 ABS Softail Breakout 117 | 2023, 2024, 2025 | ALL | |
| Harley Davidson FXBRS 1868 ABS Softail Breakout 114 | 2018, 2019, 2020 | ALL | |
| Harley Davidson FXBRS 1868 ABS Softail Breakout 114 | 2021, 2022 | EUROPE | |
| Harley Davidson FXBRS 1868 ABS Softail Breakout Anniversary (ANX) 114 | 2018 | ALL | |
| Harley Davidson FXD 1923 ABS Super Glide 117 | 2026 | ALL | |
| Harley Davidson FXDR 1868 ABS Softail King 114 | 2019 | ALL | |
| Harley Davidson FXDRS 1868 ABS Softail King 114 | 2020 | ALL | |
| Harley Davidson FXFB 1750 ABS Softail Fat Bob 107 | 2018, 2019 | ALL | |
| Harley Davidson FXFB 1750 ABS Softail Fat Bob 107 | 2021 | AMERICA | |
| Harley Davidson FXFBS 1868 ABS Softail Fat Bob 114 | 2018, 2019, 2020, 2021, 2022, 2023 | ALL | |
| Harley Davidson FXLR 1750 ABS Softail Low Rider 107 | 2018, 2019, 2020 | ALL | |
| Harley Davidson FXLRS 1868 ABS Softail Low Rider S 114 | 2020, 2021 | ALL | |
| Harley Davidson FXLRS 1923 ABS Softail Low Rider S 117 | 2022, 2023, 2024 | ALL | |
| Harley Davidson FXLRS 1923 ABS Softail Low Rider S 117 H.O. | 2025 | ALL | |
| Harley Davidson FXLRST 1923 ABS Softail Low Rider ST 117 | 2022, 2023, 2024 | ALL | |
| Harley Davidson FXLRST 1923 ABS Softail Low Rider ST 117 H.O. | 2025 | ALL | |
| Harley Davidson FXRST 1923 ABS Softail Low Rider ST EL Diablo 117 | 2022 | ALL | |
| Harley Davidson FXST 1750 Softail Standard | 2021 | AMERICA | |
| Harley Davidson FXST 1750 ABS Softail Standard | 2022, 2023, 2024 | ALL | |
| Harley Davidson FXST 1750 ABS Softail Standard | 2020, 2021 | ALL |
Part Numbers
| Supplier SKU (Parts Europe) | 13010159 |
|---|---|
| Manufacturer Part Number | TM-3220 |
Specifications
| Brand | TRASK |
|---|
