Terry Components Starter — 773005
EU Stock
Estimated delivery: 7–10 days
Terry Components Starter — 773005
Sale price£783.73
Choose options
Terry Components Starter — 773005
Sale price£783.73
The details that matter
Details
Description

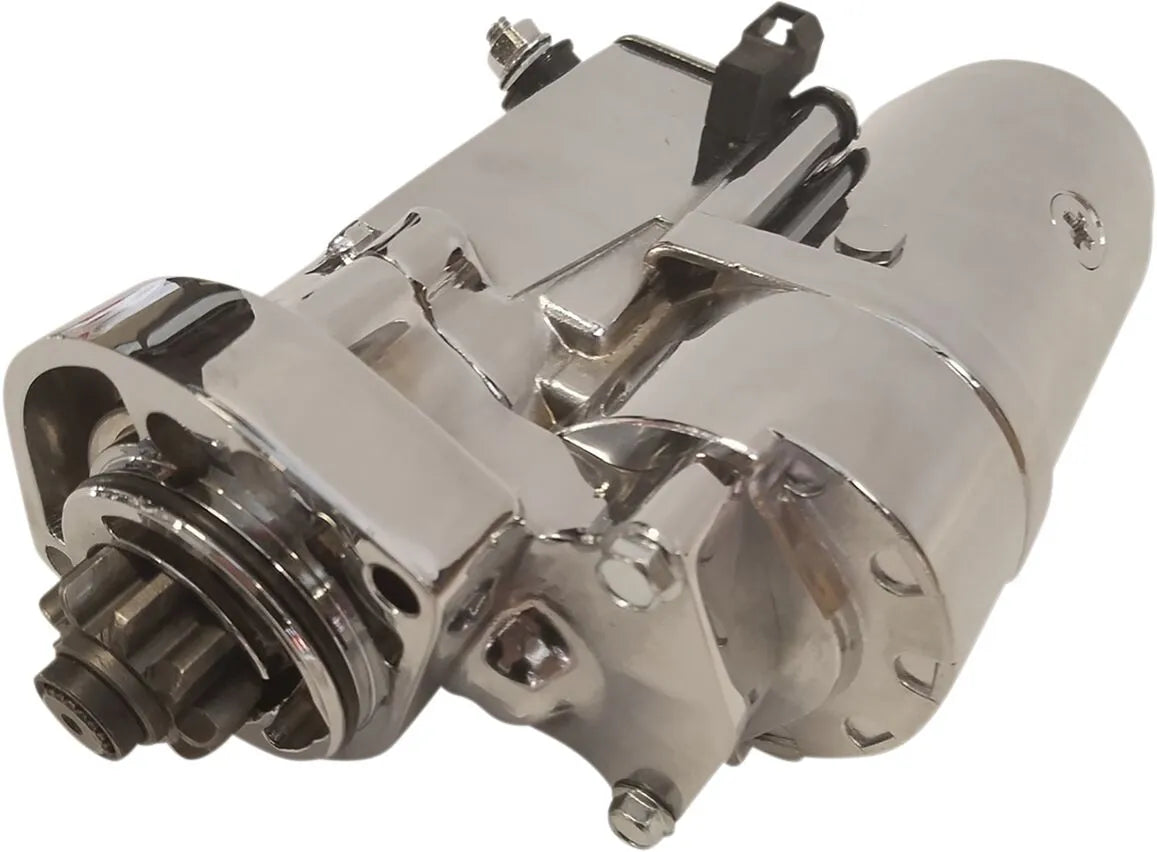

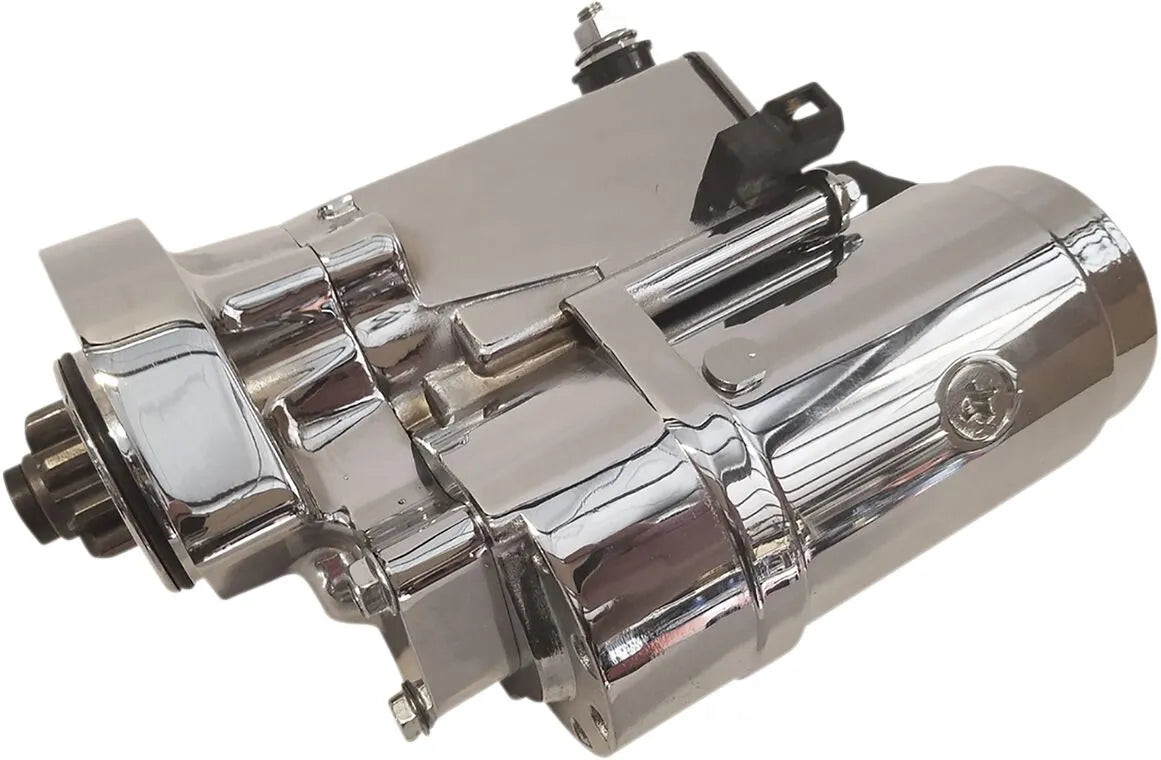

Terry Components Starter, manufacturer part 773005, for the exact model and year applications listed below.
- Solenoid plunger, return damper and springs are replaced with stronger components
- Clutch shaft and rollers are replaced with precision-ground and hardened parts
- All components are assembled with a special lube for starter roller clutch applications
- CNC-machined billet mounting noses with fasteners
- After assembly, all starters go to a dyno test including hi-low voltage, stall torque, solenoid engagement, amperage draw, load test, maximum rpm and motor impulse wave form
- 4.4:1 gear reduction
- Made in the USA
- For best results, the manufacturer recommends Terry battery cables and a battery with 300+ cold cranking amps.
Will require spacer block part # DS-196233 when used on '99-'06 FLT models. On Softail, Dyna and FXR models, you must relocate oil lines and some wiring.
Specifications
| Color/Finish | Chrome |
|---|---|
| Product Name | Starter |
| Units | Each |
| Watts | 2.0 kW |
| Battery Voltage | 12 V |
| Riding Style | Street |
Fitment
Exact model and year applications
| Model | Years | Market | Engine (cc) | Position | Notes |
|---|---|---|---|---|---|
| BIG DOG BULLDOG 1917 | 2005, 2006, 2007, 2008, 2009, 2010, 2011 | ALL | 1917 | ||
| BIG DOG BULLDOG BAGGER 1917 | 2010, 2011 | ALL | 1917 | ||
| BIG DOG CHOPPER 1917 | 2005, 2006, 2007, 2008, 2009, 2010, 2011 | ALL | 1917 | ||
| BIG DOG COYOTE 1917 | 2009, 2010, 2011 | ALL | 1917 | ||
| BIG DOG K9 1917 | 2006, 2007, 2008, 2009, 2010, 2011 | ALL | 1917 | ||
| BIG DOG MASTIFF 1917 | 2005, 2006, 2007, 2008, 2009, 2010, 2011 | ALL | 1917 | ||
| BIG DOG MUTT 1917 | 2008, 2009, 2010, 2011 | ALL | 1917 | ||
| BIG DOG PITBULL 1917 | 2005, 2006, 2007, 2008, 2009, 2010, 2011 | ALL | 1917 | ||
| BIG DOG RIDGEBACK 1917 | 2005, 2006, 2007, 2008, 2009, 2010, 2011 | ALL | 1917 | ||
| BIG DOG WOLF 1917 | 2009, 2010, 2011 | ALL | 1917 |
Part Numbers
| Product code | 21101017 |
|---|---|
| Manufacturer Part Number | 773005 |
Specifications
| Brand | TERRY COMPONENTS |
|---|
