Soundstream, Head unit Radio Plug-n-Play upgrade

Description

HDHU.14si head unit lets you gain/retain factory features you’d otherwise lose when installing a different head unit. Check out your engine performance and monitor data such as; tire pressure, battery voltage, dual-function handlebar controls, track pack gauges, and the ability to turn on factory amplifiers for CVO, Boom 1, and Boom 2 Systems. To pair the head unit with the OEM handlebar controls and integrate the OEM gauges Datalink Maestro module (999367) needs to ordered separately.

Highlights:

Upgrade for 2014up Touring and Trike models

EPS-MMR may require flashing

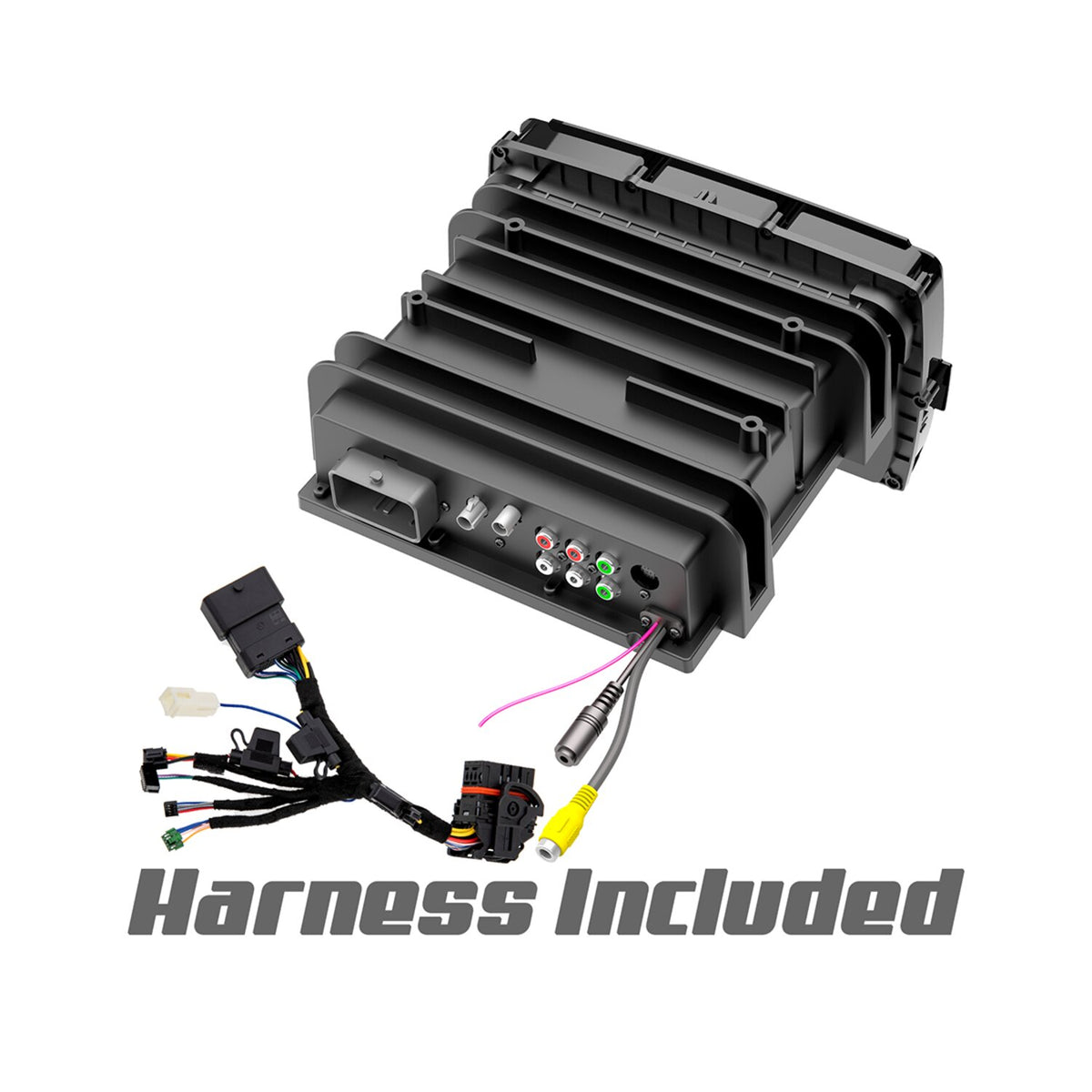

Pre-wired plug-n-play harness included

Hardware not required for installation, uses factory bolts

Uses factory OE USB connector & AM/FM radio antenna

Water-resistant faceplate & glass for IPx5 rated protection

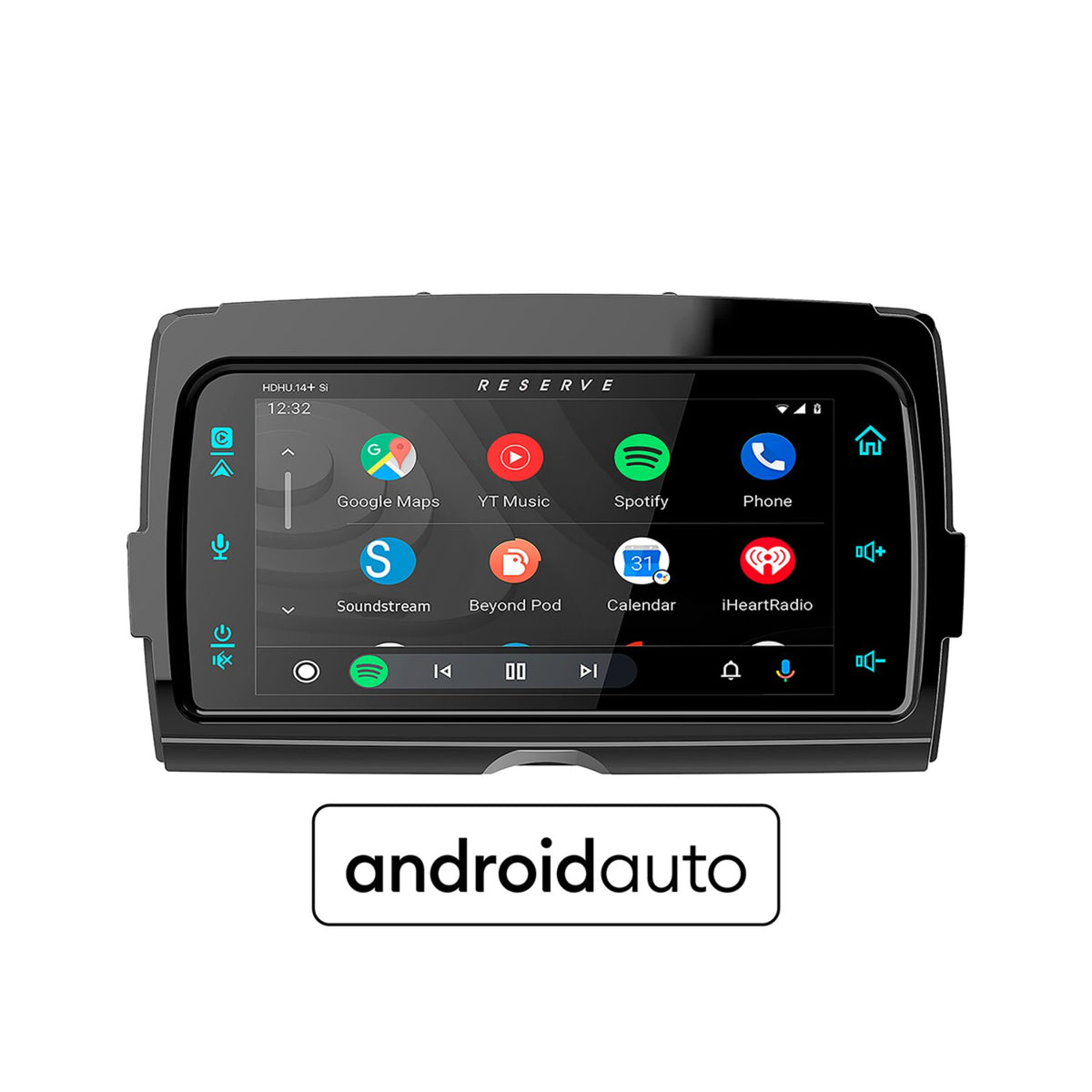

7” High-Definition with capacitive touch screen & RGB illumination

RCA Live video camera Input with 12v trigger

Apple CarPlay & Android Auto with Google Assistant built-in

Bluetooth wireless connectivity for audio playback & control

Customizable wallpaper / background (.jpg & .jpeg via USB)

Adjustable RGB color touch-sensitive front keys

USB Smartphone charging while connected (5V/1.5A)

MP3/WMA/AAC/FLAC audio playback via USB (64GB Max)

4-Volt Front, rear, & subwoofer RCA audio pre-outputs

Built-in equalizer with preset custom settings & graphical display

50w per channel, 2-Ohm stable 4 channel amplifier built-in

Note: Datalink Maestro module (999367) needs to ordered separately
Fitment note: Only for models with standard Harley 4.3 and GT audio and to replace CVO, Boom! and GTS audio

Specifications

Fitment

14-24 FLT/Touring; 14-24 Trikes

Part numbers
