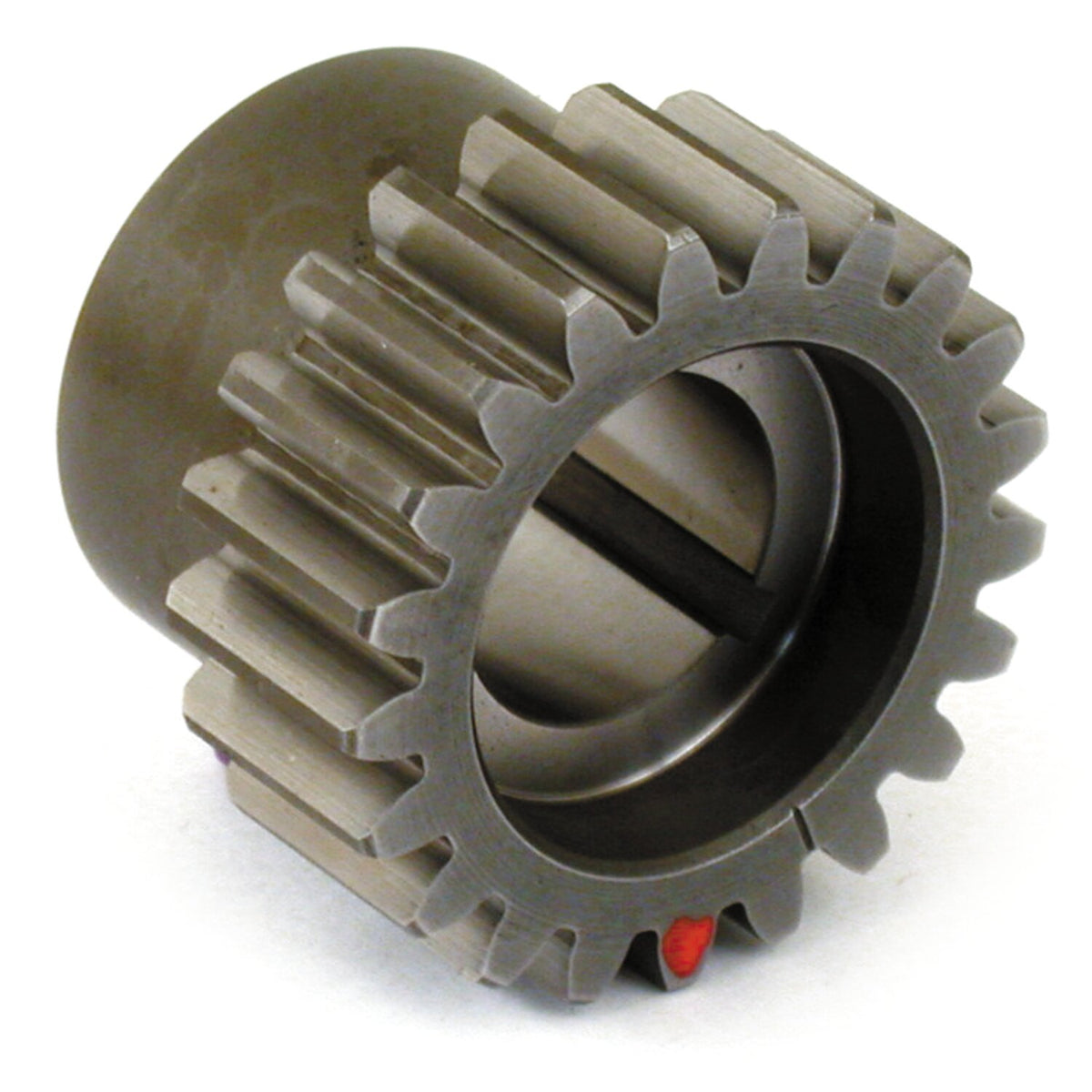

S&S, pinion gear L77-89. Red

Description

Note: All S&S pinion shaft gears are designed to be used with a 73-99 B.T. style 24T driven gear (OEM 26345-73 / MCS 531209 S&S).

Color coding sequence is identical to stock H-D coding. When in doubt use a gear from the middle to the small side of the range. A combination of smaller gears should provide adequate gear clearance under most circumstances. Both excessive and zero gear lash combinations cause engine noise, but no gear lash causes binding and premature wear.

Sizes are as follows:

909084 Orange (biggest). Repl. 24040-78.

909085 White. Repl. 24041-78.

909090 Yellow. Repl. 24042-78.

909095 Red (average). Repl. 24043-78.

909100 Blue (average). Repl. 24044-78.

909105 Green. Repl. 24045-78.

909106 Black (smallest). Repl. 24046-78.

Specifications

Fitment

L77-89 Big Twin (NU) (average size)
