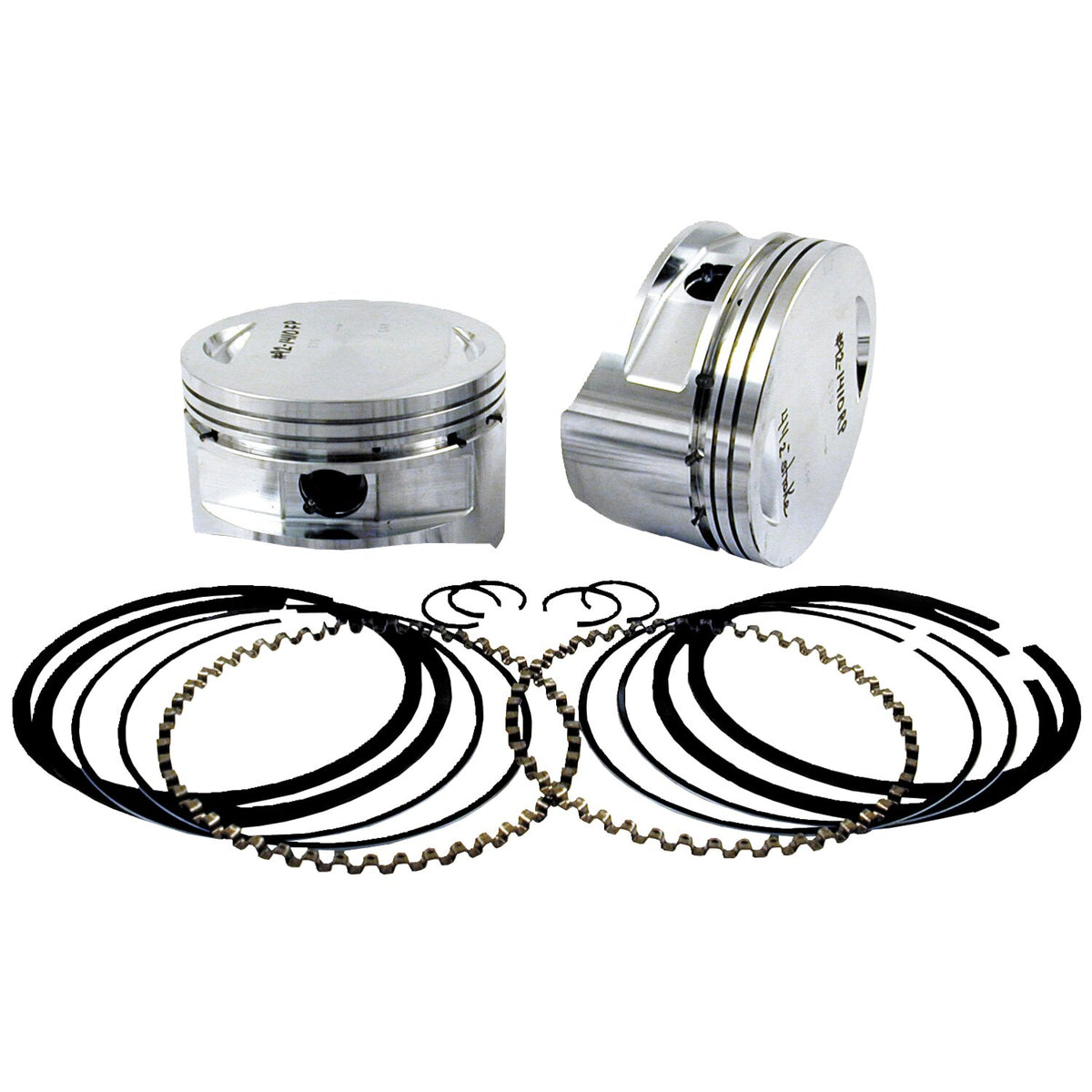

S&S, Evo 3-5/8 big bore piston set (OEM heads). +.030"

Description

Used with 3-5/8 big bore cylinders in combination with 4-1/4" (88"), 4-1/2" (93") or 4-3/4" (98") stroke with 5.375" (88"), 5.500" (93") or 5.750" (98") long cylinders and stock heads. Kits include forged pistons, wrist pins, wrist pin clips and piston rings.



Note: 98" engines must use small 8-1/4" ø flywheels.

Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation. It is of importance that a knowledgeable mechanic will install & make adjustments as required. The rider must follow standard break-in and riding procedures for overhauled engines.

Specifications

Fitment

84-99 Evo Big Twin with 3-5/8" big bore cylinders and 4-1/4" (stock), 4-1/2" or 4-3/4" stroke flywheels (NU)

Part numbers
