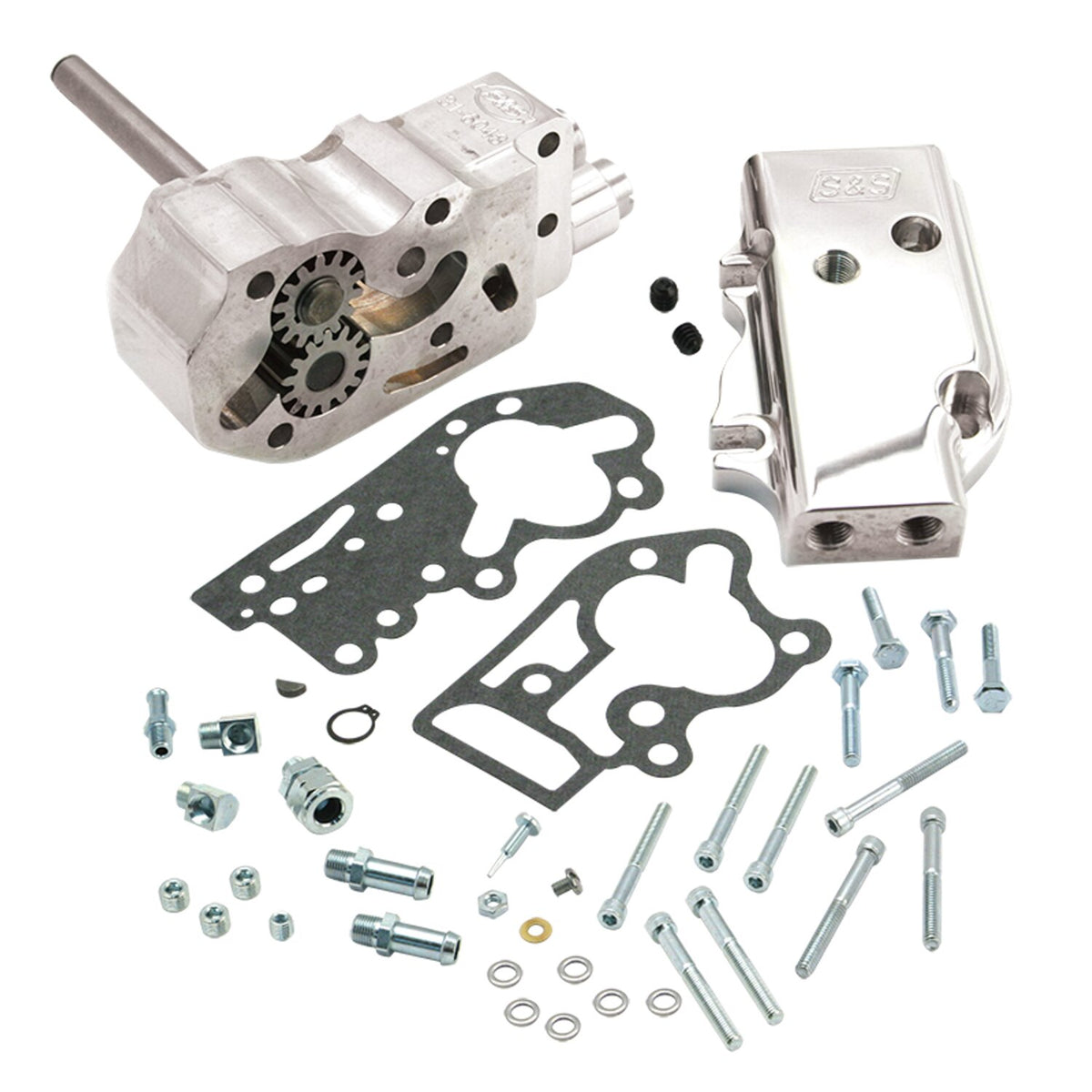

S&S, billet oil pump. 36-69 style

Description

Fully CNC machined to maintain close tolerance and strict quality control. Requires a 73-77 breather gear. Only this 36-69 style pump offers an adjustable primary chain oiling system, but is not equipped with a rear chain oiling provision. Offers several options for oil line placement. All S&S billet pumps come complete with everything you need to replace the stock pump and include mounting instructions. Machined with an oil pressure relief bleed off passageway & relieves pressure build up on top of the valve to maintain consistent oil pressure. Oil pressure regulation bypass routes excess oil directly to the supply side of the pump & reduces the amount of oil returned to the tank, reducing foaming and cavitation.

Note: Requires 73-77 breather gear.
Note: 36-69 engines used with S&S pinion shaft and drive shaft gears will speed-up oil pump by 25%, identical to 73-up models. S&S pumps for 1936–’67 engines used with the S&S oil pump drive gears deliver 33% more oil than the original cast iron pump
Note: There may be more differences in Harley-Davidson crankcases than you might think. Plugging or drilling a hole is sometimes necessary. S&S offers a drill jig as MCS 518150. This is a special tool that is mounted on the crankcase and used as a guide to help you drill holes correctly.

Specifications

Fitment

36-69 Big Twin (NU)
