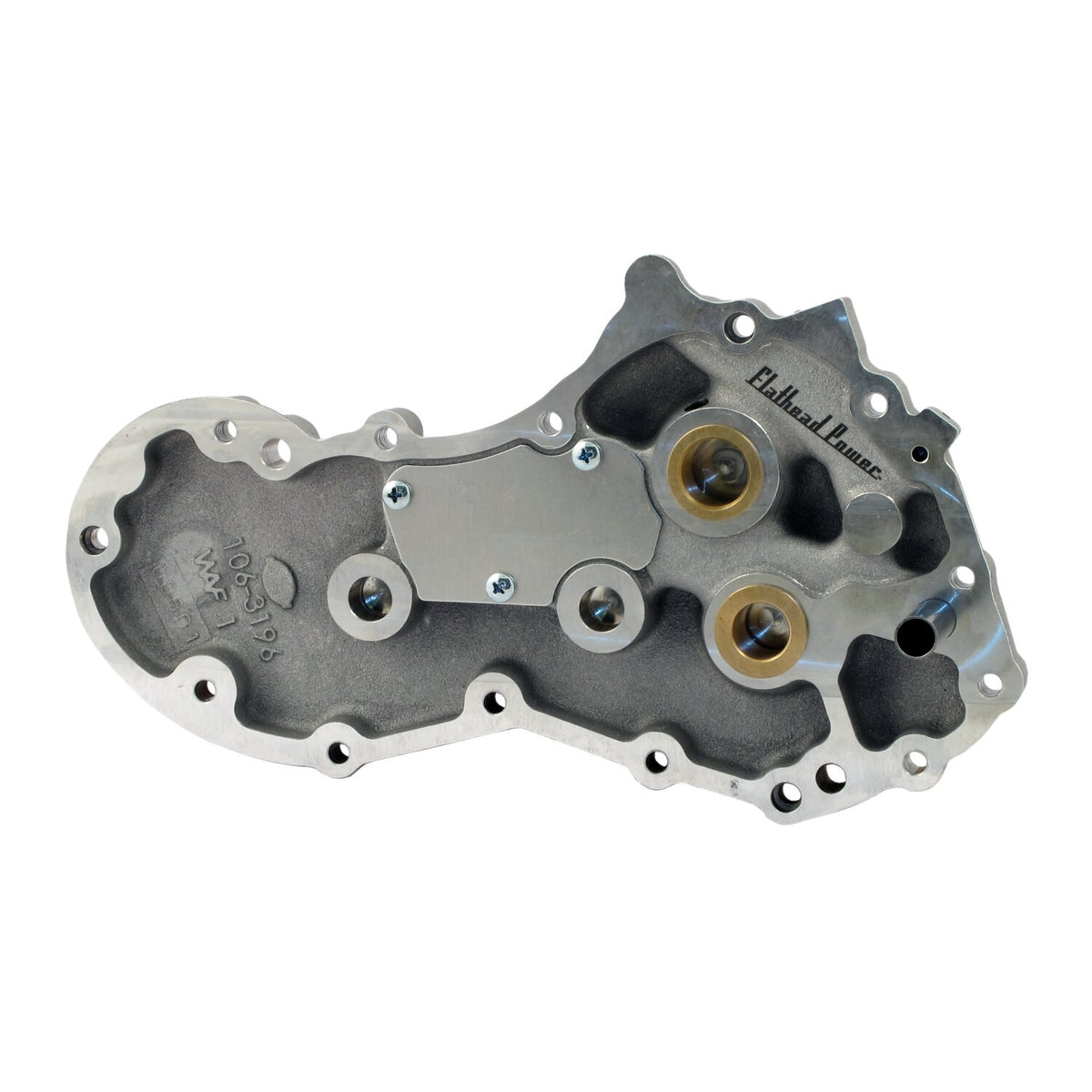

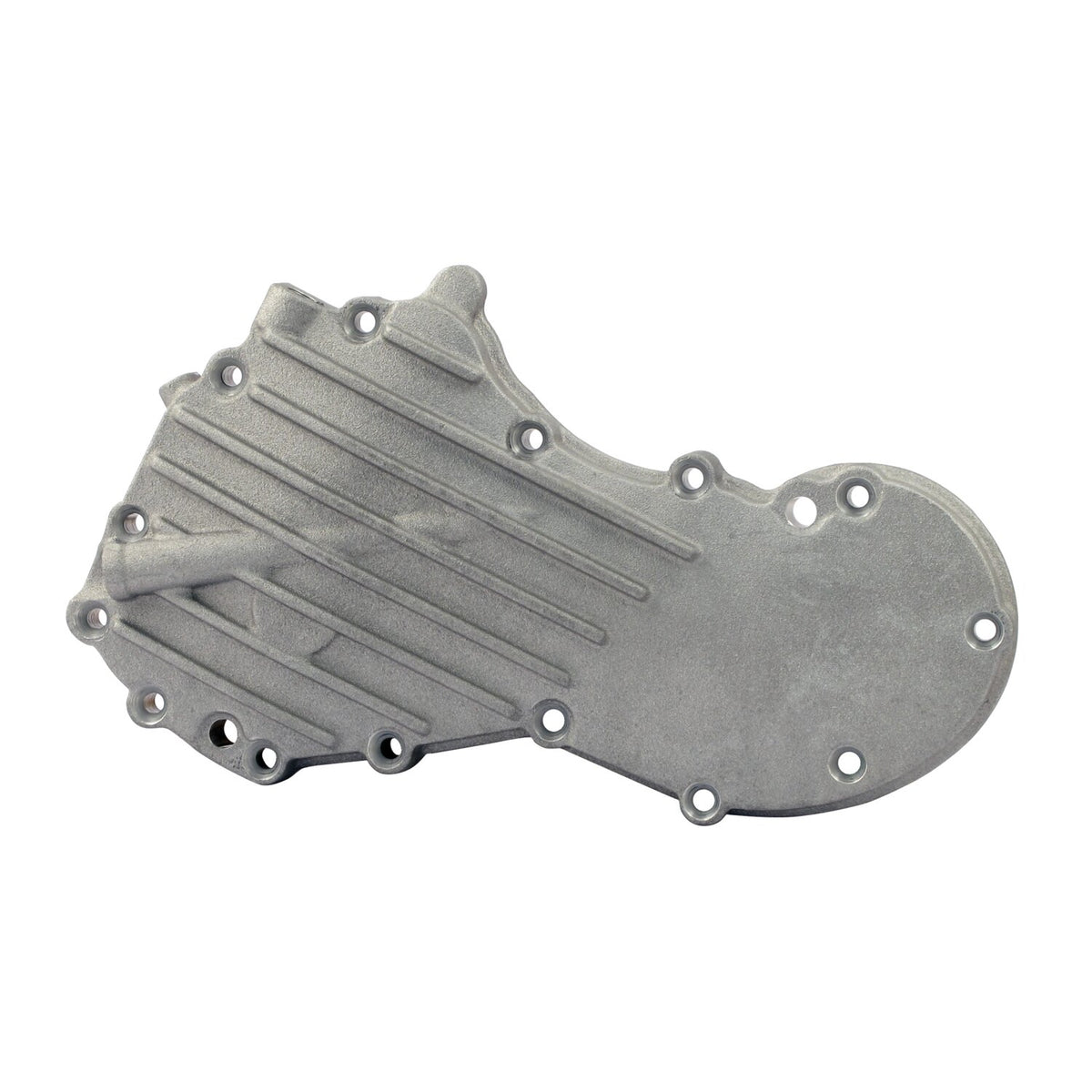

S&S, 40-E48 generator cam cover kit. For OEM cases
Choose options
The details that matter
Details
Description
11/16" ID pinion bushing. 8 ribs, with tapped hole for top end oiling. 1/4" gen. mount holes. Drill mount holes to 5/16" for 58-up generators. Custom replacement for OEM 25216-48. Cast 356-T6 extra strong aluminum cam covers in the same burnished finish as S&S crankcases. CNC precision machined to offer close tolerances. Improves crankcase ventilation and oil-air mist separation via a larger, redesigned baffle chamber. Bushings are installed and reamed to factory specifications.
Note 1: Kit includes a gear cover gasket & hardware.
Note 2: Will not fit Side Valve models.
Specifications
| Unit | KIT |
|---|
Fitment
40-E48 OHV Big Twin with OEM cases (NU)
Part numbers
| Supplier SKU | 512358 |
|---|---|
| Manufacturer part | 106-3198 |
Specifications
| Brand | S&S Cycle |
|---|---|
| Category | Cam covers |
