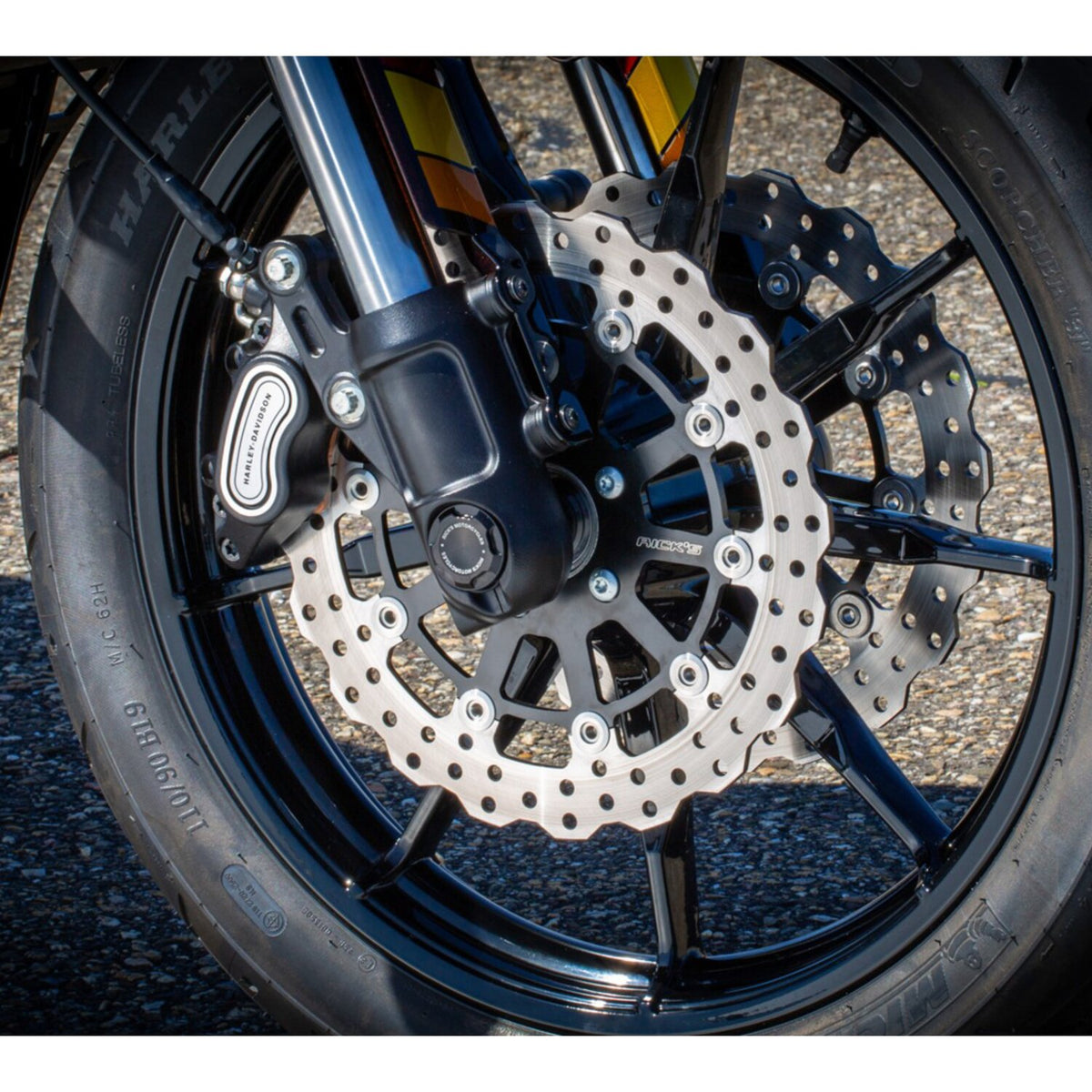

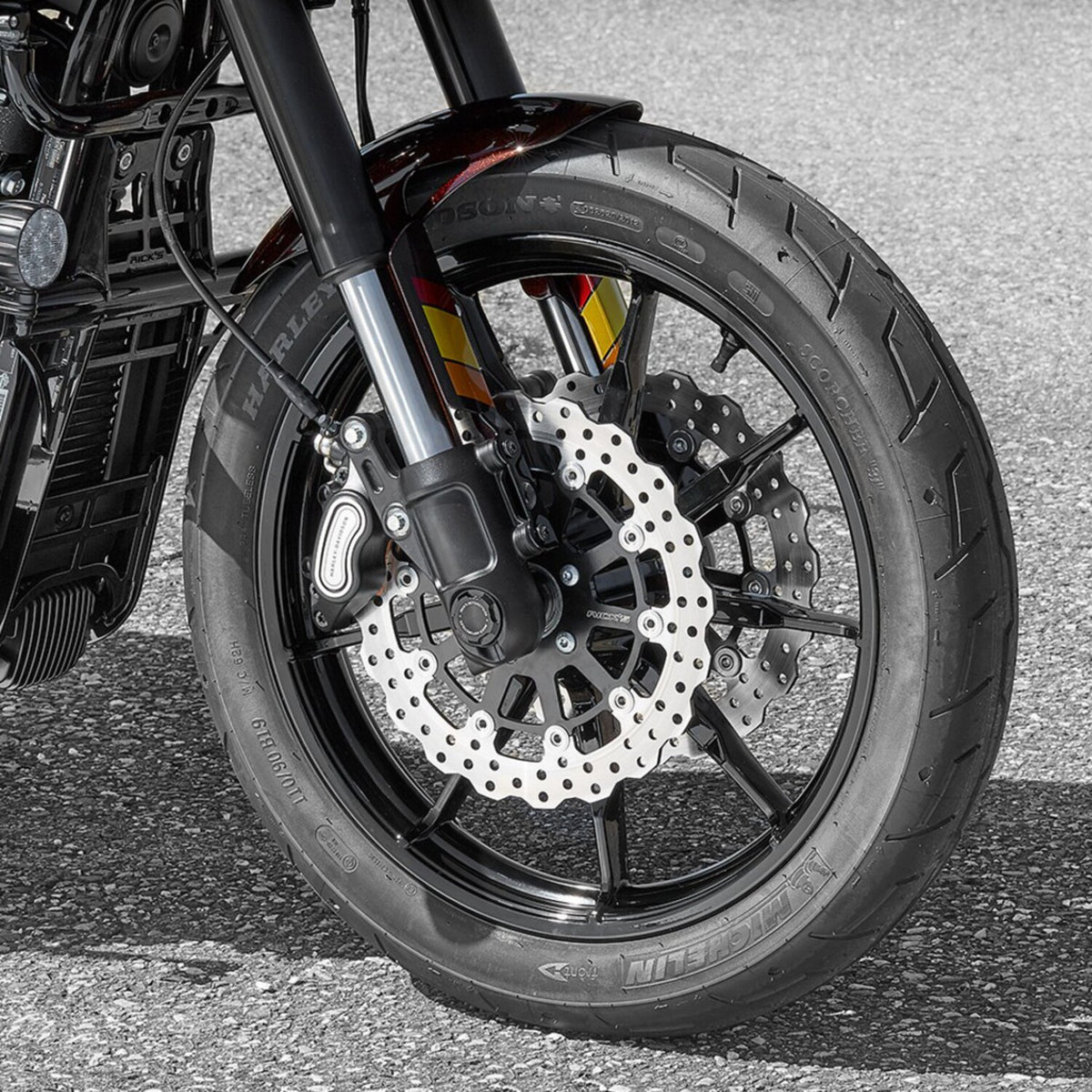

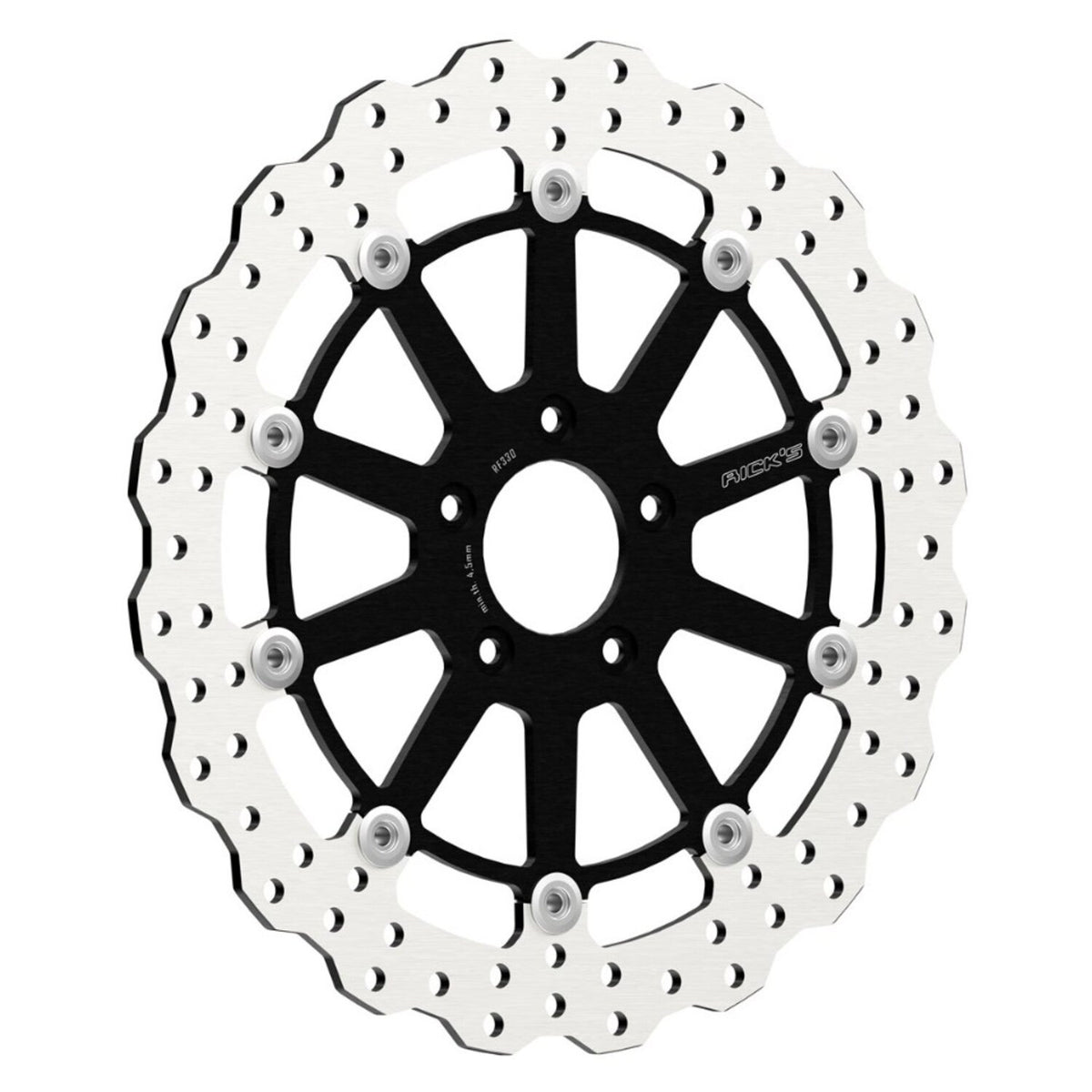

Rick's Motorcycles, front Wave brake disc Steve 11.5"

Description

11.5" / 292mm diameter. Floated.
56.3mm I.D., 8.7mm (5/16") counterbored mounting holes. 3.25" bolt circle mount holes. Mount style 'B'.
Note: Mounting holes are fitted with 5/16" inner sleeves. With the reducer sleeves removed mounting hole diameter is 3/8", for rear use.
Note: Can be used on pre-2000 models when a 56.3mm to 50mm I.D. reduction ring is used.
Brake rotors are manufactured from a special stainless steel alloy and are heat treated. This offers an excellent braking capability with high wear resistance. The material is laser-cut for perfect precision and cross-grind for a perfectly flat surface.
Optimized for OEM radial calipers. OEM replacement reference 44156-00, 44136-00.
Note: With approval. Check your local MCS dealer or the MCS sales department for exact type of approval and validity on bike model and years on the test report.

Specifications

Fitment

Various 00-26 H-D models with 3.25" bolt circle diameter

Part numbers
