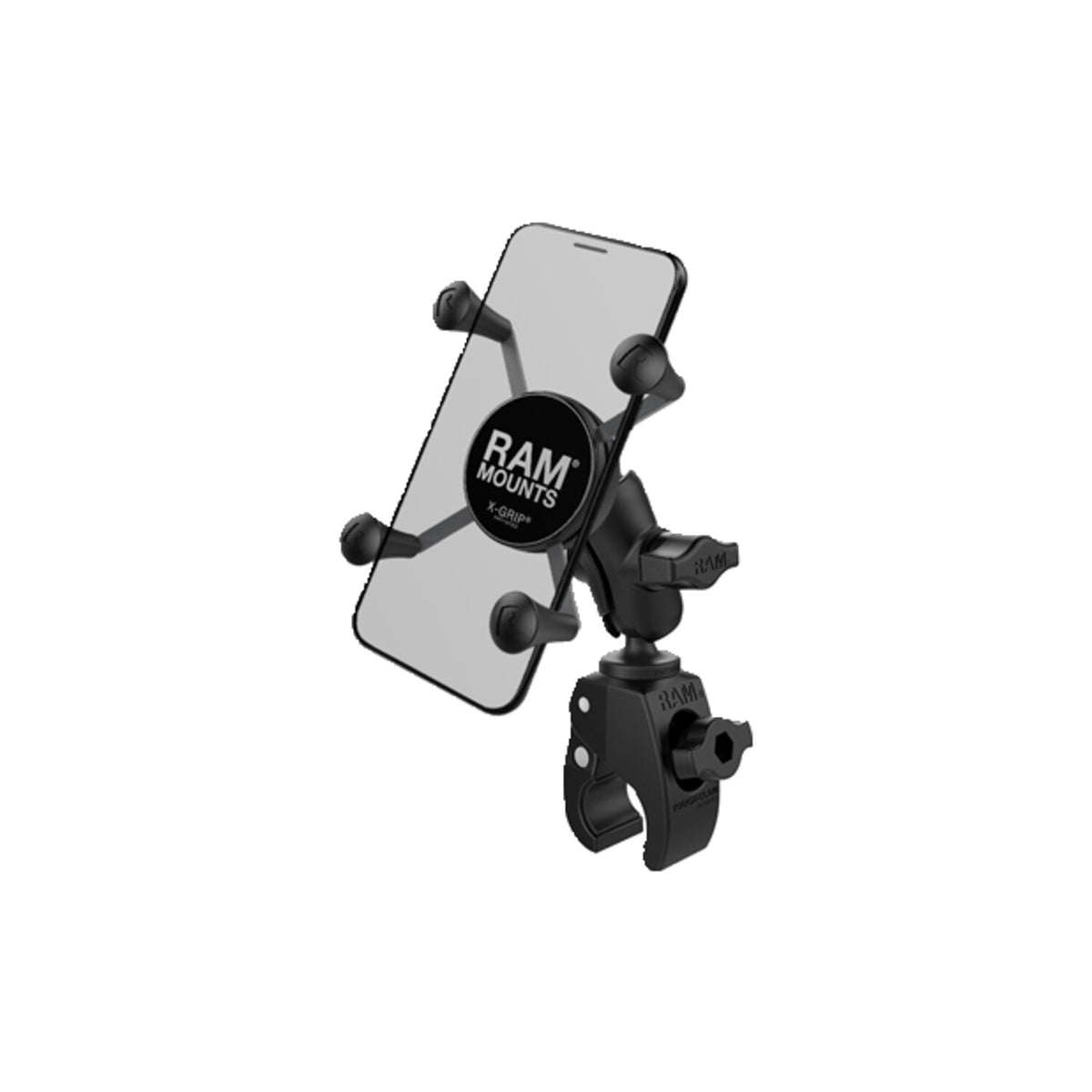

RAM Mounts, X-Grip Phone mount Tough Claw. Small phones

Description

X-Grip holder for small phone size:

- Wide: 1.875" (47.6mm) to 3.25" (82.6mm)

- Deep: max .875" (22.2mm) )

- Short socket arm, 1.75" (44.5mm) ball to ball

- 'Tough-Claw™' base

- Base clamps .625" (15.9mm) to 1.5" (38mm) diameter tubing / handlebars

- Base clamps up to 1.14" (29mm) thick flat surfaces

- Holds max. 2 lbs / 907 gram normal use or 1 lbs (454 gram) heavy duty use

- Includes: (1) Optional Tether, (1) Glue tube for rubber caps

- Materials used: Marine-grade aluminum, high strength composite, stainless steel

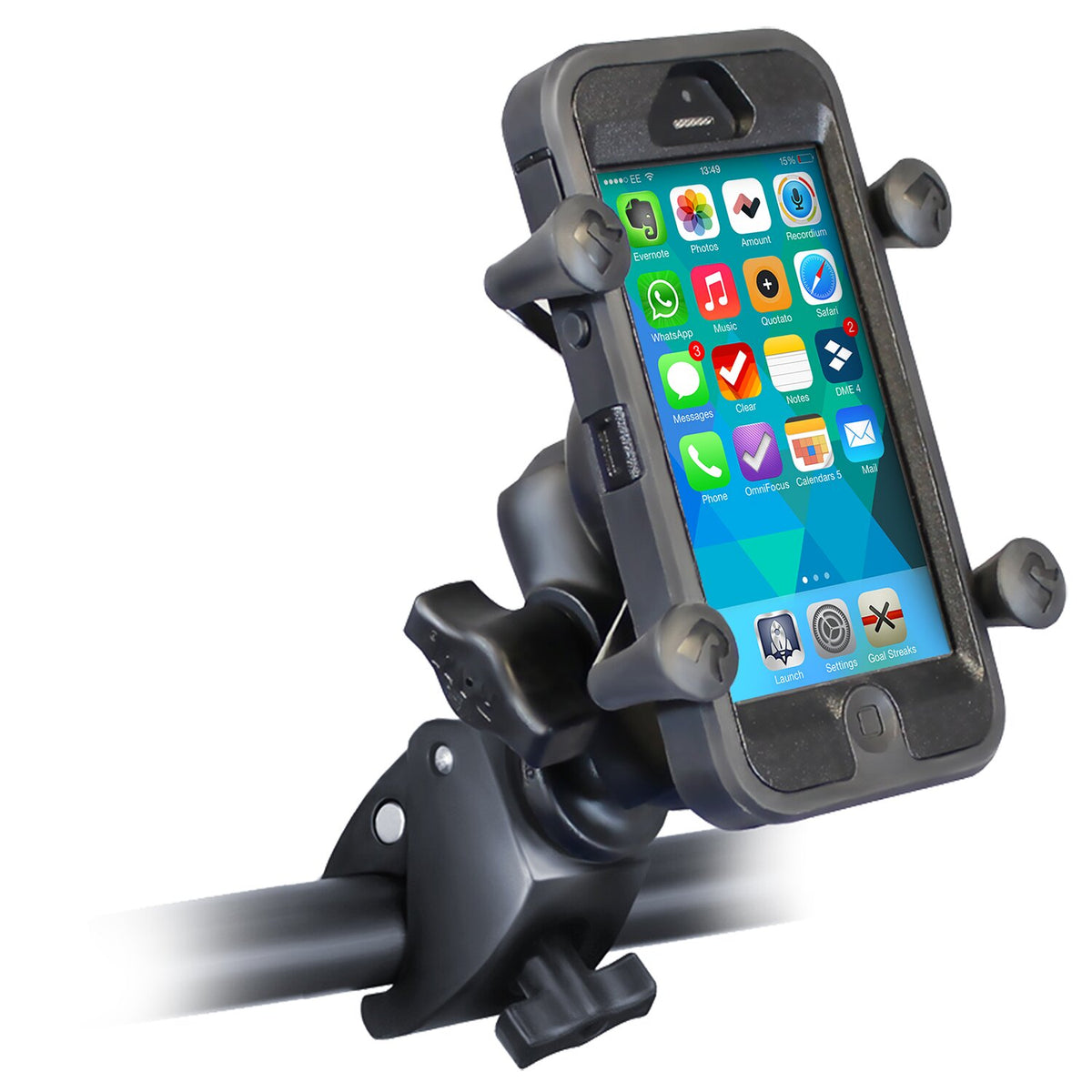

Consists of the Tough-Claw rail clamp base, SHORT length double socket arm and universal spring loaded X-Grip cradle for phones. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your tablet. Included are easy access grip knobs for quick insertion and release of your handheld device. The Tough-Claw rail clamp base is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw can be clamped on rails from 0.625" - 1.5" outer diameter. Perfectly suited for mounting on the yoke of an aircraft, handlebars and seat posts of bicycles, kayak rails, roll bars and much more, the RAM Tough-Claw will soon become another essential RAM component in your collection of mounting options. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

RAM Mounts - The way It Works? A 3-piece system: 1 the mount base, 2 the connecting arm, 3 the device holder.

- 1 the mount base -

Equipped with RAM's 1" diameter elastomeric hard rubber socket ball. A connection that is easy adjust, slip-free and vibration absorbing. Various mount base options available.

- 2 socket arm / connecting arm -

A connecting arm with sockets that grip the rubber balls of the mount base and of the phone holder, effectively connecting both parts while offering virtual infinite tool-free adjustments.

- 3 Phone holder / X-Grip -

An innovative spring-loaded system with rubber caps on the 'fingers' that will clamp your phone. The X-Grip phone holder is equipped with RAM's elastomeric hard rubber socket ball for a slip-free, vibration absorbing mount to the socket arm.

Specifications

Fitment

Contact the workshop to confirm suitability for your application.

Part numbers
