Wiseco High-Performance Piston Kit — K1746
Choose options
Wiseco High-Performance Piston Kit — K1746
Sale price£391.48
The details that matter
Details
Description
Wiseco High-Performance Piston Kit (manufacturer part K1746) is listed for the Harley-Davidson applications shown below. Key specifications: Aluminum; Top End. Check the exact model, year and market before ordering.
- Forged from high-silicon aluminum alloy for maximum strength and dependability

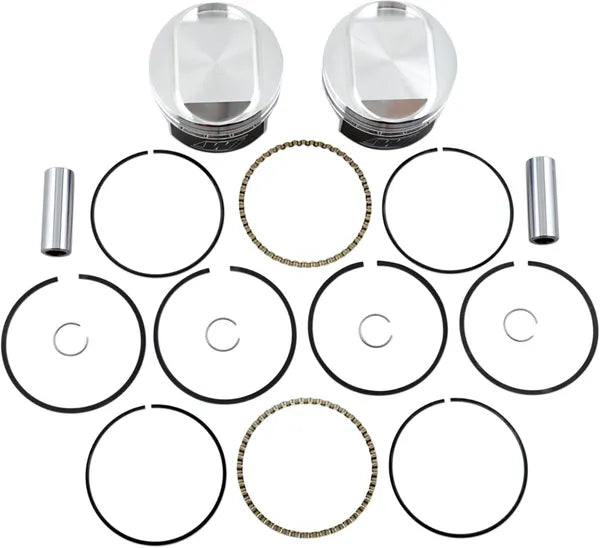

- Kit Includes pistons, rings, retainer clips and chrome piston pins
- Includes X-Ring package (0.062" top ring, 0.062" compression ring, and 0.158" oil ring)
- Pistons are made in the USA
Kit Includes: • 2x Pistons • 2x Ring Sets • 2x Wrist Pins • 4x Circlips
Specifications
| Bore Size | 3,498" |
|---|---|
| Engine Type | 4-Stroke |
| Bore Size Imperial | 3.498" |
| Piston Material | Forged 2618 Aluminum |
| Displacement | 1200 cc |
| Stroke Length | 3-13/16" |
| Stroke Length Imperial | 3-13/16" |
| Color/Finish | Aluminum |
| Bore - Oversize | Standard |
| Compression Ratio | 10,5:1 |
| Piston Diameter | 3,4955" |
| Type | Top End |
| Piston Head Shape | Positive Dome +3.6 cc |
| Piston Diameter Imperial | 3.4955" |
| Product Name | Rebuild Kit |
| Compression Ratio Imperial | 10.5:1 |
| Riding Style | Street |
| Bore - Oversize Imperial | Standard |
| Units | Kit |
| Skirt Coating | ArmorGlide® |
Fitment
View exact Harley-Davidson applications
| Model | Years | Market | Position / notes |
|---|---|---|---|
| Harley Davidson XL 1200 C Sportster Custom | 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 | ALL | |
| Harley Davidson XL 1200 C Sportster Custom 110th Anniversary | 2013 | ALL | |
| Harley Davidson XL 1200 C ABS Sportster Custom | 2014, 2015 | ALL | |
| Harley Davidson XL 1200 CA ABS Sportster Custom LE A | 2014, 2015 | EUROPE | |
| Harley Davidson XL 1200 CB ABS Sportster Custom LE B | 2014, 2015 | EUROPE | |
| Harley Davidson XL 1200 L Low | 2006, 2007, 2008, 2009, 2010, 2011 | ALL | |
| Harley Davidson XL 1200 N Nightster | 2007 | AMERICA | |
| Harley Davidson XL 1200 N Nightster | 2008, 2009, 2010, 2011, 2012 | ALL | |
| Harley Davidson XL 1200 R Roadster | 2004, 2005, 2006, 2007, 2008 | ALL | |
| Harley Davidson XL 1200 T Super Low | 2014, 2015 | ALL | |
| Harley Davidson XL 1200 T ABS Super Low | 2014, 2015 | ALL | |
| Harley Davidson XL 1200 V Seventy-Two | 2012, 2013, 2014, 2015 | ALL | |
| Harley Davidson XL 1200 V ABS Seventy-Two | 2014, 2015 | ALL | |
| Harley Davidson XL 1200 X Forty-Eight | 2010, 2011, 2012, 2013, 2014, 2015 | ALL | |
| Harley Davidson XL 1200 X ABS Forty-Eight | 2014, 2015 | ALL | |
| Harley Davidson XL50 1200 50th Anniversary | 2007 | AMERICA | |
| Harley Davidson XR 1200 | 2009, 2010 | ALL | |
| Harley Davidson XR 1200 | 2008 | EUROPE | |
| Harley Davidson XR 1200 X | 2011, 2012, 2013 | ALL |
Part Numbers
| Supplier SKU (Parts Europe) | 09030583 |
|---|---|
| Manufacturer Part Number | K1746 |
Specifications
| Brand | WISECO |
|---|
