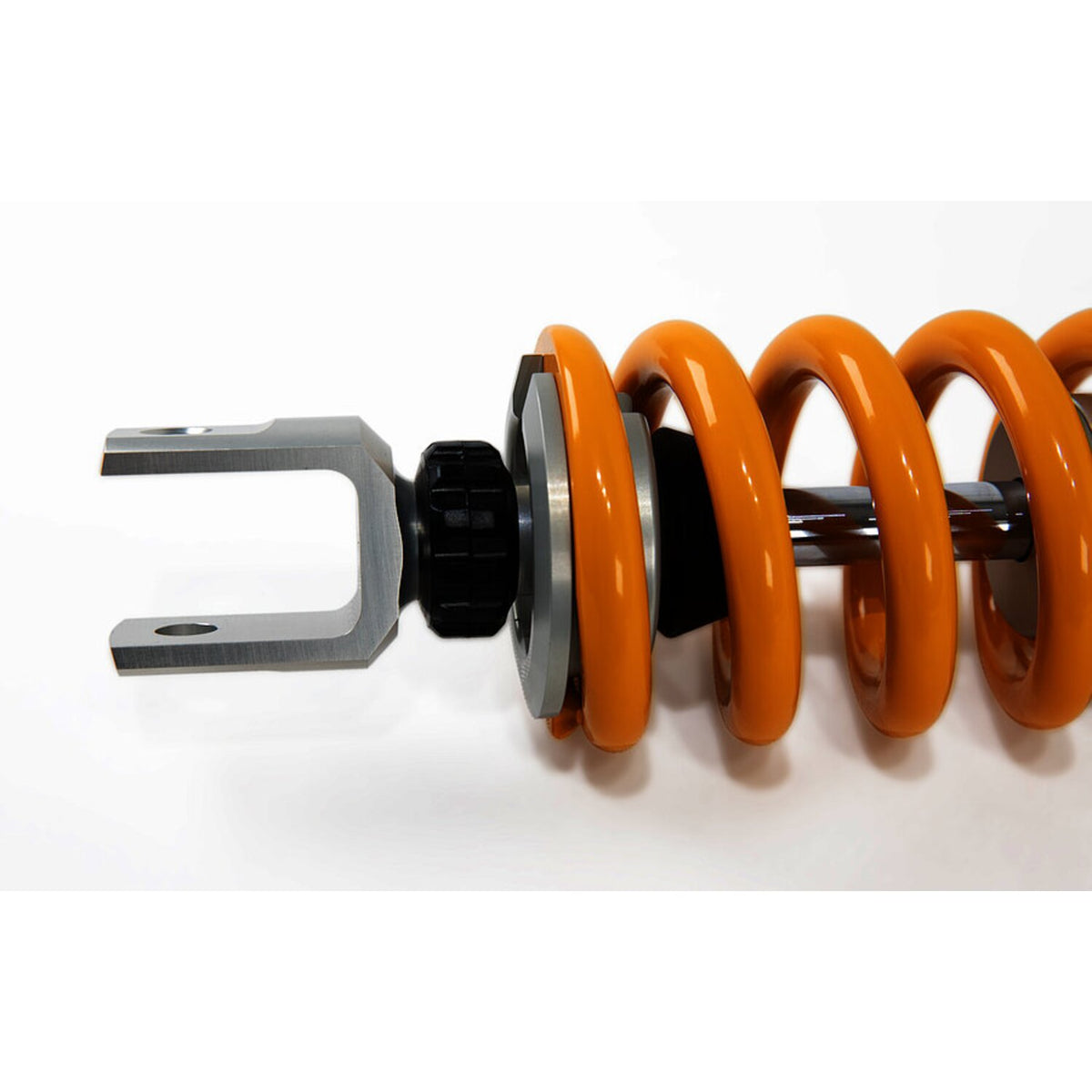

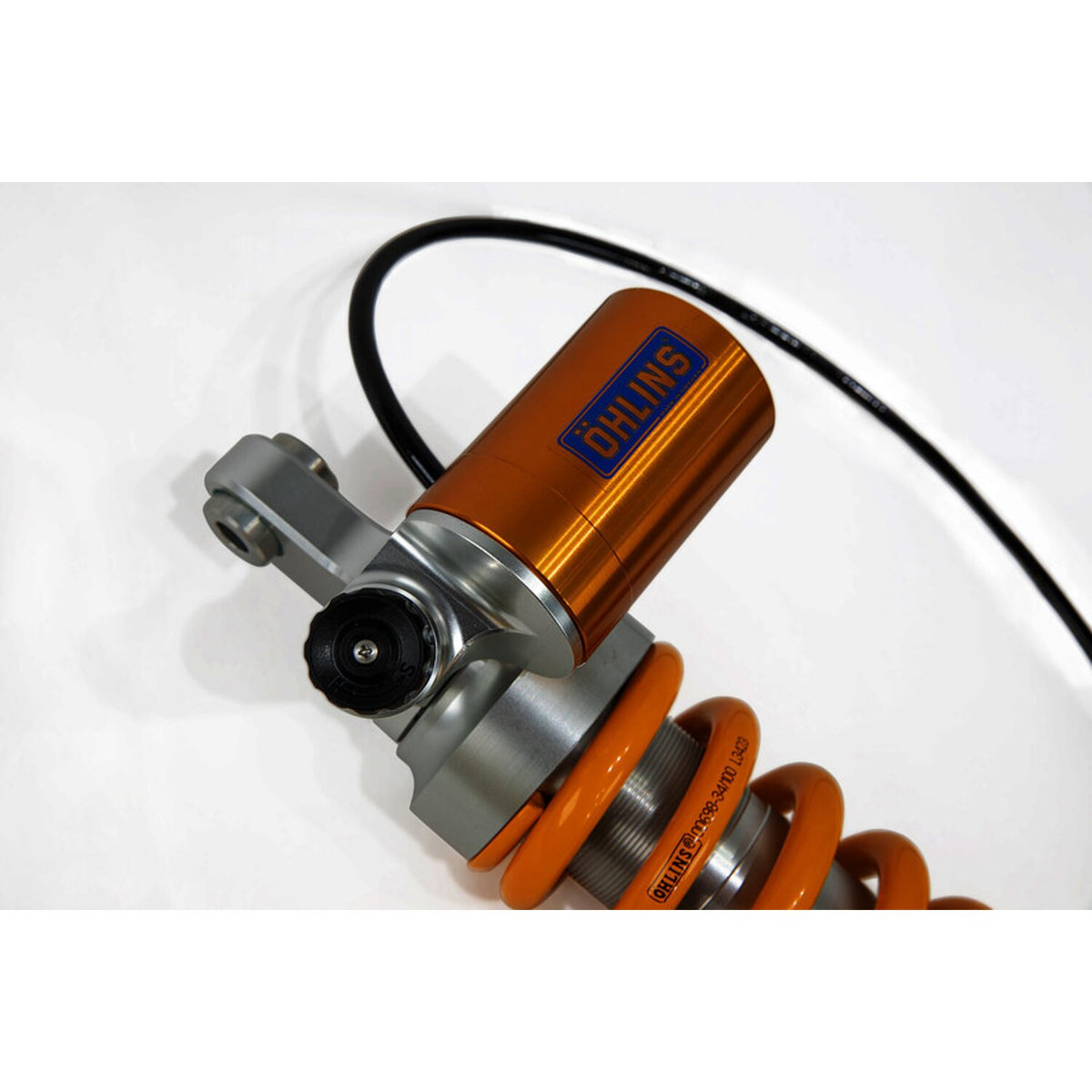

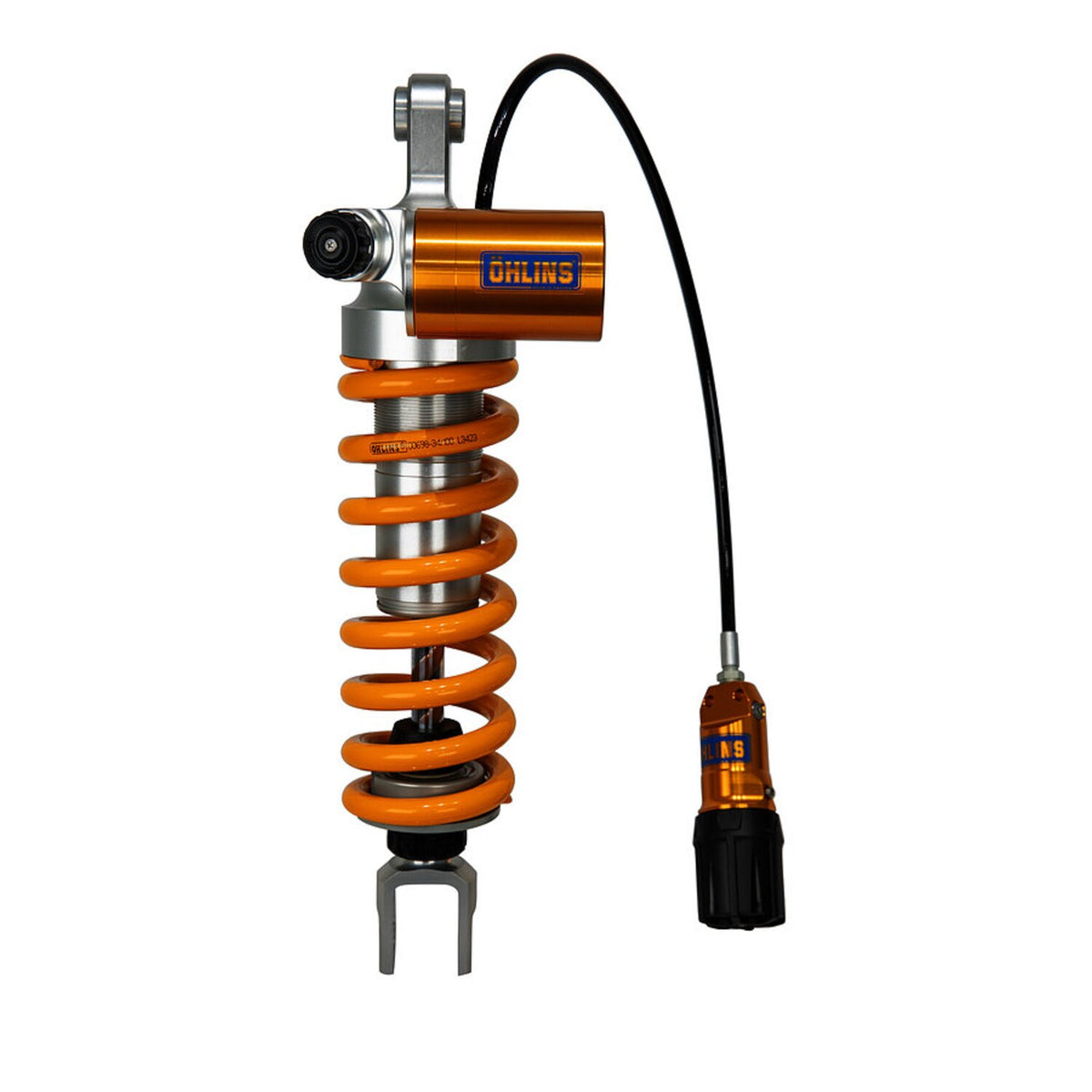

Öhlins, STX46 Adventure rear shock absorber HD 250. 398.5mm
Choose options
The details that matter
Details
Description
The STX 46 is a monotube high pressure gas type shock absorber 46mm piston diameter with a internal reservoir. Comes with adjustable preload and R1 rebound damping adjustability. Complete with installation instructions.
- Yellow spring
- Clear body
- Single tube
- Piston diameter: 46mm
- Monotube high pressure gas type of shock absorber with external 'piggy back' reservoir
- Adjustable rebound damping with adjuster wheel above the end eye
- Adjustable compression damping with adjuster wheel or slot on reservoir

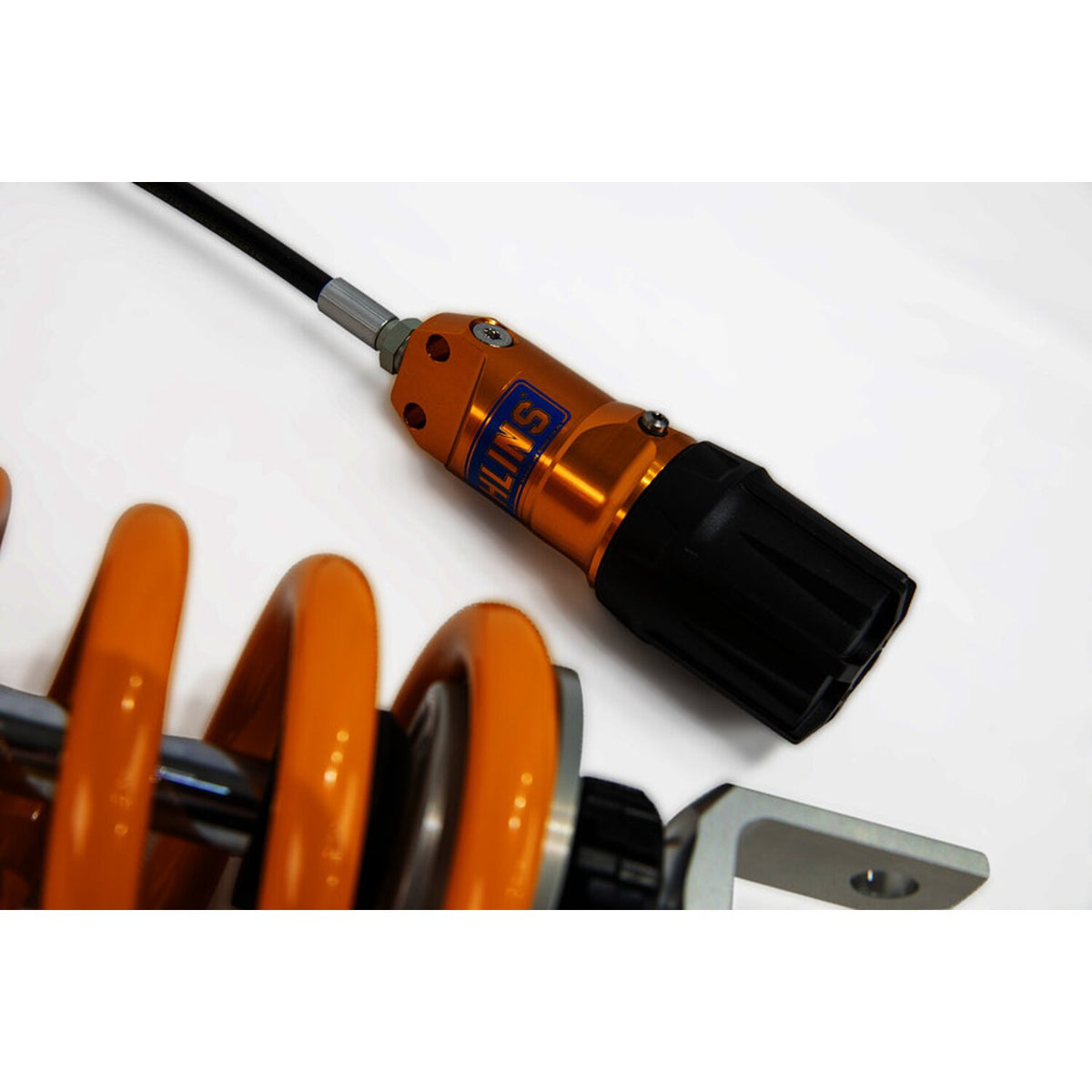

- Adjustable hose mounted hydraulic spring preload adjuster
- Length: 398.5mm
- Stroke: 80mm
- Rate N/mm: 100 N/mm
- Mounted spring: 962261 (00698-34).
Note: Check your local MCS dealer or the MCS sales department for exact type of approval and validity on bike model and years on the test report.
Specifications
| Unit | 1 |
|---|
Fitment
21-24 RA1250 Pan America (NU)
Part numbers
| Supplier SKU | 701718 |
|---|---|
| Manufacturer part | HD 250 |
Specifications
| Brand | Öhlins |
|---|---|
