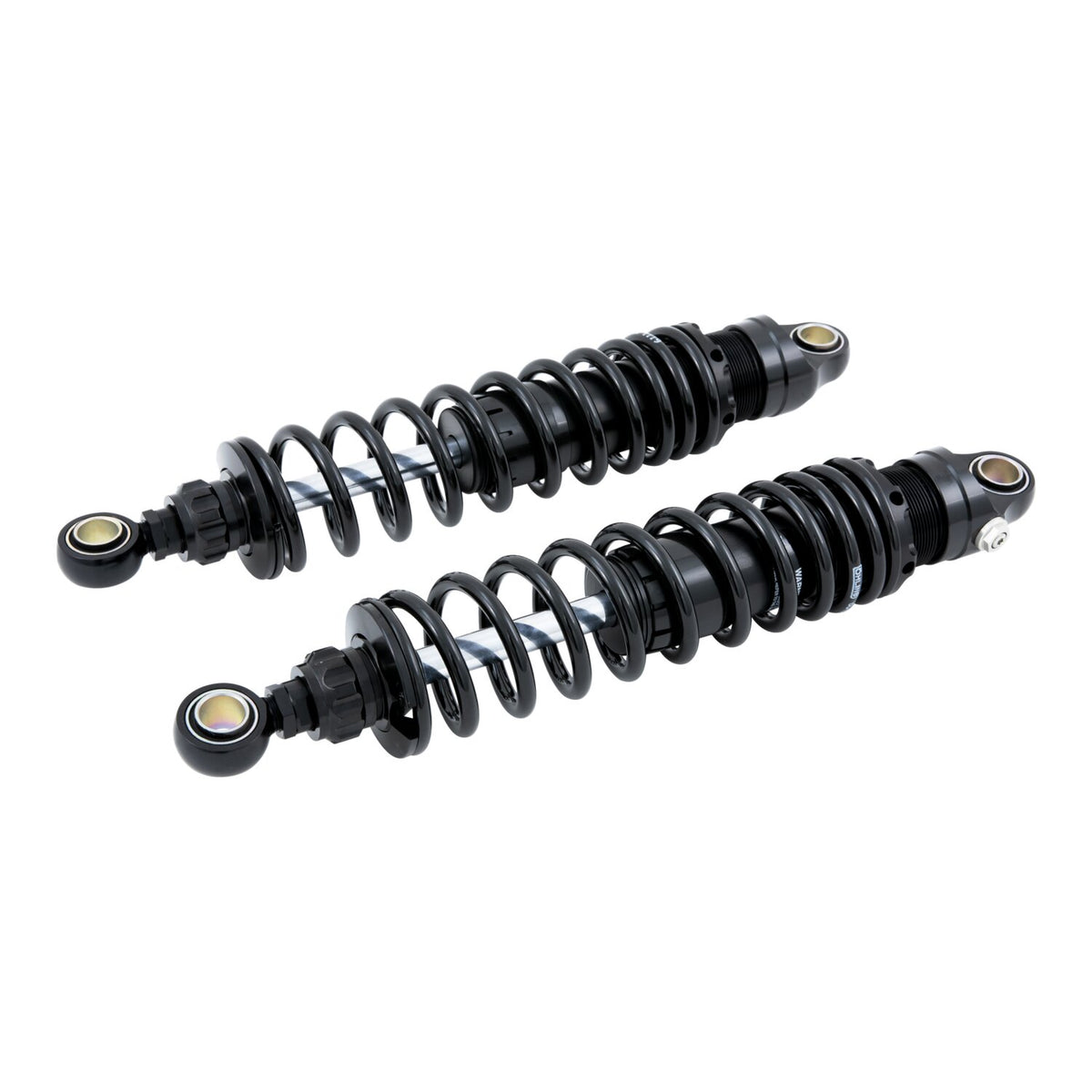

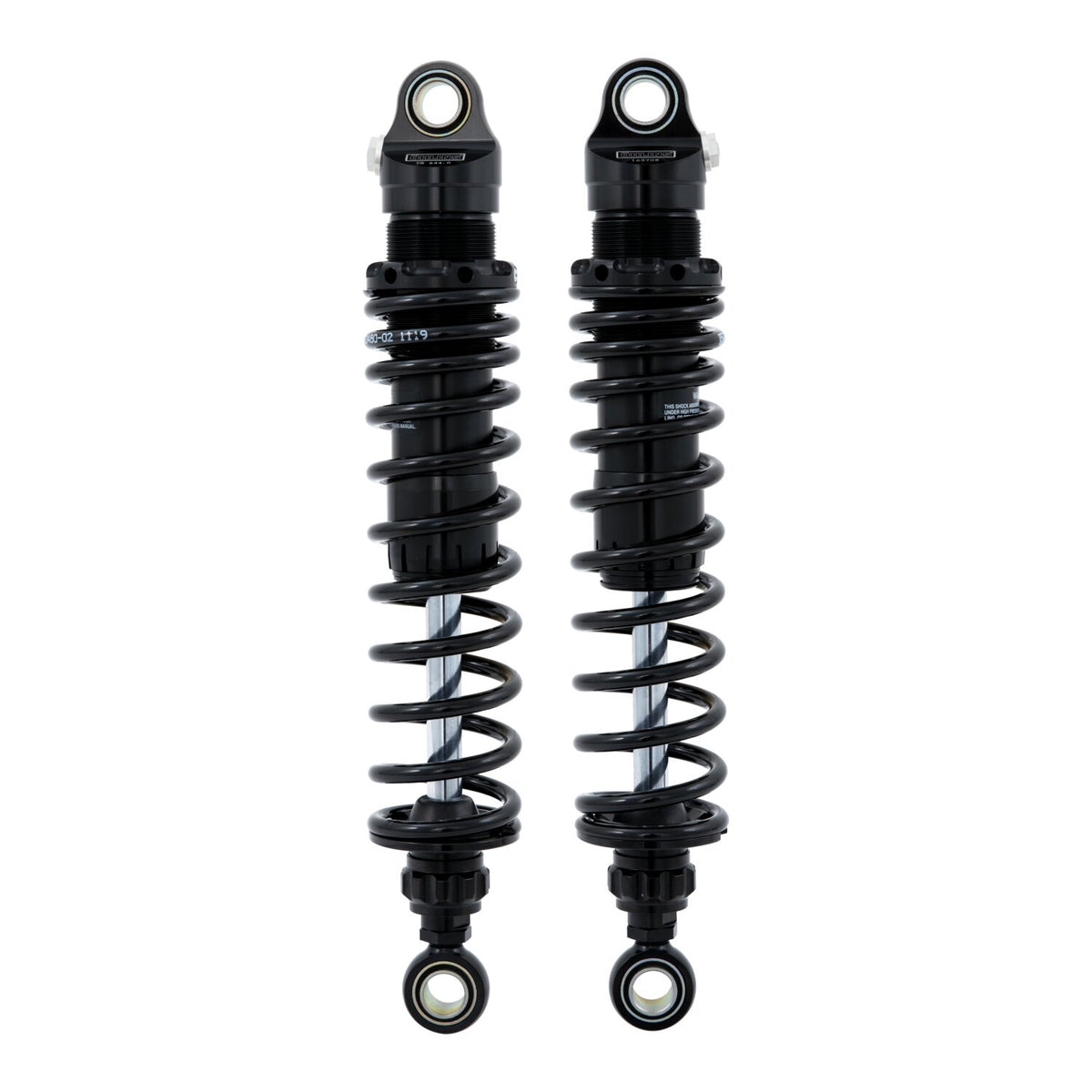

Öhlins, STX36 Blackline rear shock absorber set. 336mm

Description

- Black springs

- Black body

- S: Single tube body

- Piston diameter: 36mm

- D: Monotube high pressure gas type shock absorber with internal reservoir in the main body

- R1: Adjustable rebound damping. Adjuster wheel above the end eye

- L: Adjustable length

- Length: 336 +10/-0 mm

- Stroke: 75 mm

- Rate N/mm: progressive 16-26 N/mm

- Position: rear

- Mounted spring: 00480-02

- Packaging unit: pair

- ABE approved.

The STX36 is a shock that's been around the block and it paid it's dues when it comes to performance and durability. Especially for the cruiser market when taking riding a step up, the STX36 is an excellent investment when suspension characteristics are important to you.

Specifications

Fitment

16-18 XL1200CX Roadster (XL2); 16-18 XL1200 Iron (XL2); 07-12 XL1200N Nightster (XL2) long version; 04-09 XL1200R Roadster (XL2); 00-03 XL1200S Sport (XL1); 17-18 XL1200T Superlow (XL2) long version; 12-16 XL1200V Seventy Two (XL2) long Version; 10-18 XL1200X Forty-Eight; 18-19 XL1200XS Forty-Eight Special (No ABE) long version; 99-03 XL53C (XL1); 04-16 XL883 (XL2); 09-18 XL883N Iron (XL2); 00-03 XL883R (XL1); 05-08 XL883R (XL2); 06-16 XL883R Roadster (XL2); 93-99 XLH1200 (XL/2) long version; 92-98 XLH883 (XL/2) long version; 99-05 XLH883 (XL1) long version
