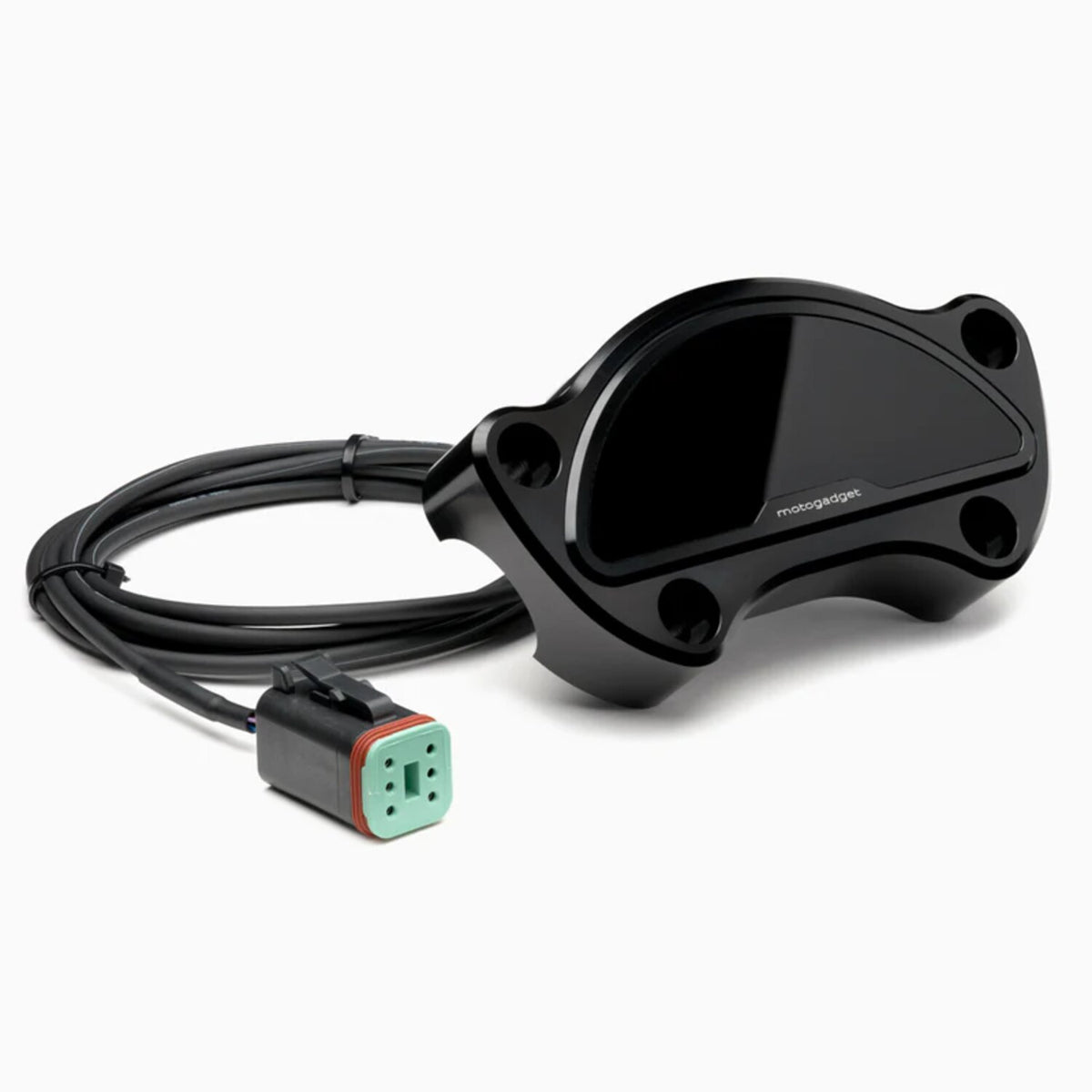

Motogadget, H-D Motoscope Pro with clamp. Black. CAN-bus

Description

'Plug & Ride' CAN-bus version, complete with handlebar bracket, for a super-easy installation in 10 minutes.
No technical knowledge and no modifications required.
Simply disconnect the plug of the original instrument, loosen the four screws of the handlebar clamp, screw on the Motoscope Pro with the bracket and plug the connector into the OBD socket under the seat.
Compatible with all 11-up CAN-bus models.
Comes with a bolt-on mounting bracket and plug and play connector.
The Motoscope is operated identical to the original instrument via the menu button on the handlebars.

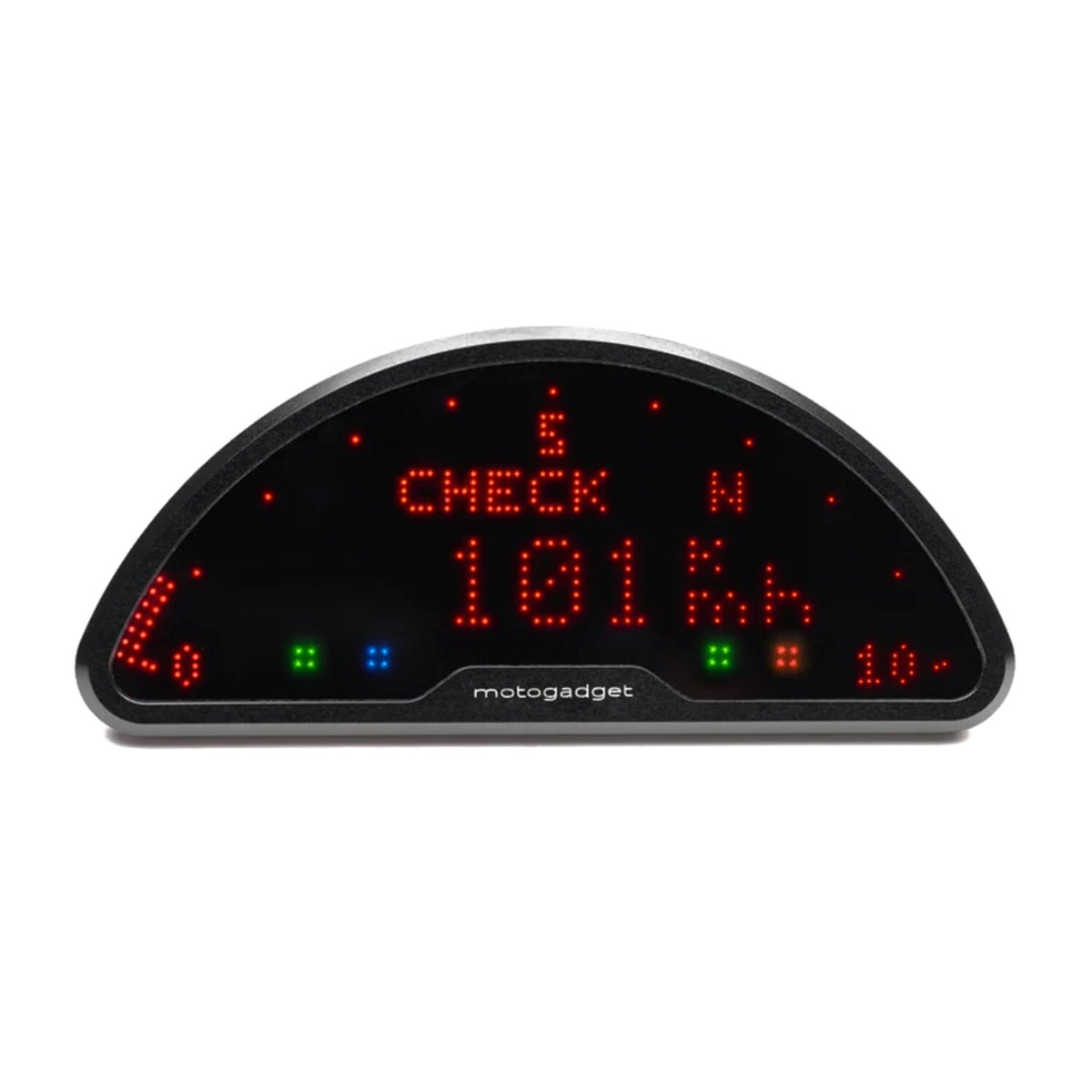

Data is processed by a 16 bit Risc processor, which drives 734 LED's for a full panel self-illuminated display matrix. Clear vision, unlike LCD, even in direct sunlight. The main and secondary displays are self-configurable, another display shows the selected gear. Fully J1850-bus driven. Apart from regular functions, the Motoscope Pro includes: Adjustable RPM scale, from 0-6000 to 0-18.000 rpm., hour meter (time in use), adjustable shift light (up to 20.000 rpm), 0-100 km/h / 0-60 mph acceleration times, average speed, maximum speed, various warning functions and more. Dimensions: 109mm wide x 17mm high x 11mm deep.
Note: The original fuel gauge cannot be displayed via the Motoscope Pro.

Specifications

Fitment

11-25 Softail; 12-17 (NU) Dyna; 14-25 FLT/Touring; 14-22 (NU) XL Sportster
