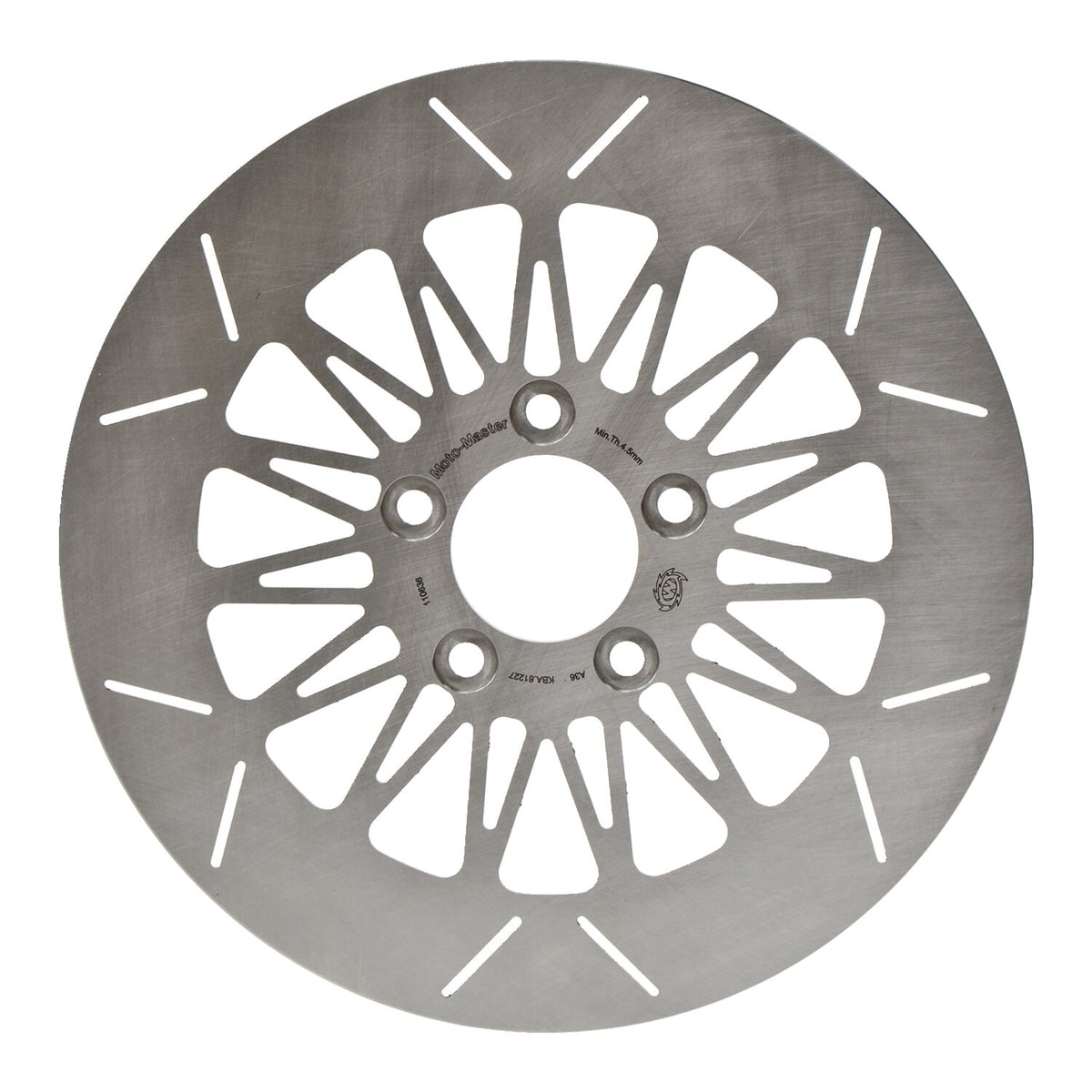

Moto-Master, Rialto front brake rotor. Front left/right

Description

ABE approved. Stainless.
11.5" / 292mm O.D, 56.3mm I.D., 8.7mm (5/16") counterbored mounting holes with 3.25" bolt circle (48.6mm mount hole to mount hole distance).
Mount style 'B'.
- Outer diameters 292.0 mm
- Inner diameter 56.4 mm
- Thickness 5.0 mm
- Number of holes 5
- Hole diameter 8.7 mm
- Pitch 82.3 mm
- Type Fixed Disc
- Turning direction Omnidirectional
- Speedometer prepared No.
Moto-Master brake rotors are manufactured from premium stainless steel, offering superb braking ability and are highly corrosion resistant. CNC machined, laser cut and precision double grinded within the tightest tolerance to eliminate any brake rotor vibration. All Moto-Master brake discs are made in Europe and ABE approved.
Note: Check your local MCS dealer or the MCS sales department for exact type of approval and validity on bike model and years on the test report.

Specifications

Fitment

00-14 Softail; 00-05 Dyna; 00-07 FLT/Touring; 00-13 XL Sportster; 08-12 XR1200 (NU)
