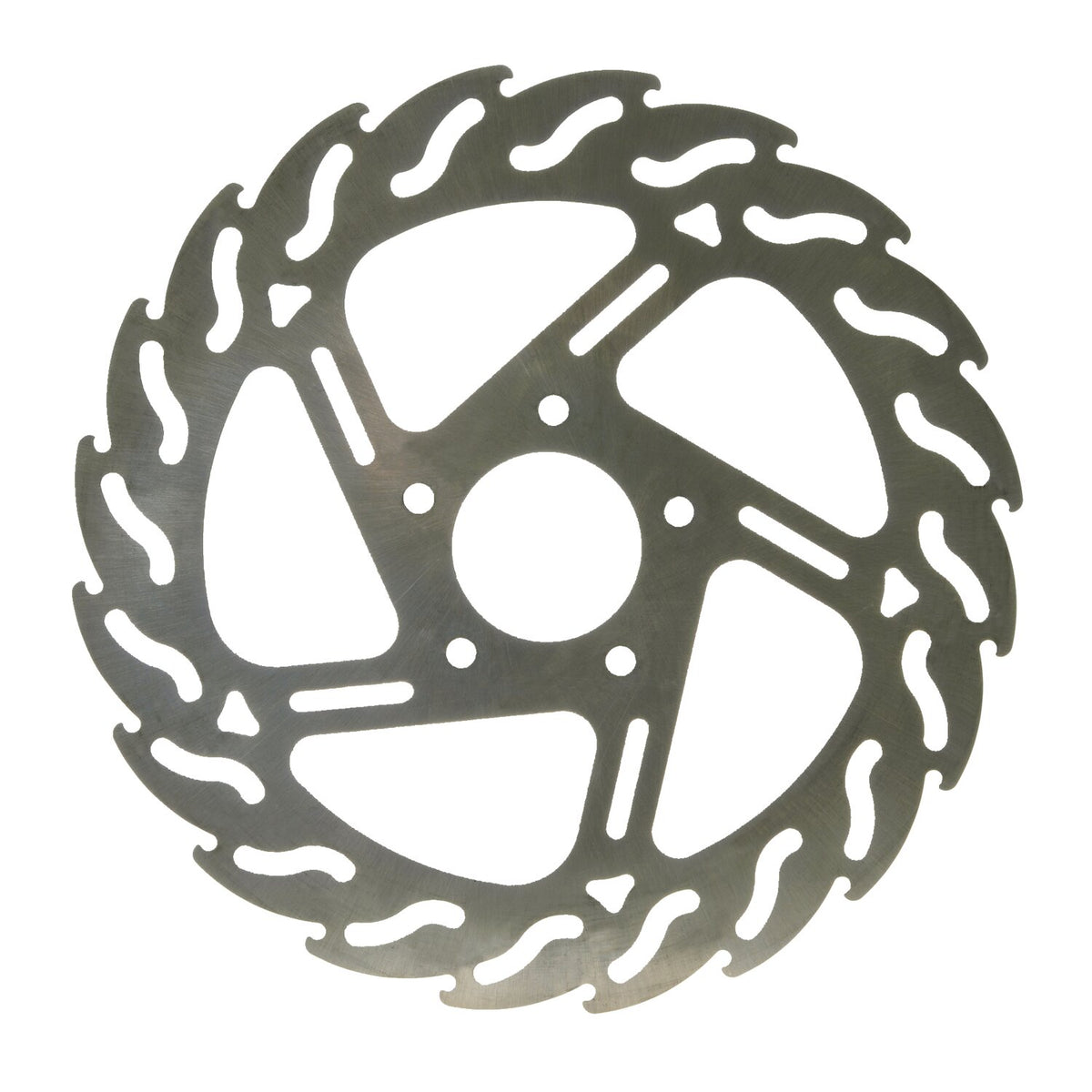

Moto-Master Flame rear brake disc ABE appr.

Description

ABE approved; rear left for XL only; stainless.
11.5" / 292mm O.D, 56.3mm I.D., 10.2mm (3/8") counterbored mounting holes. 3.25" bolt circle diameter.
Mount style 'B'.
- Outer diameter 292.0 mm
- Inner diameter56.7 mm
- Thickness 5.0 mm
- Number of holes 5
- Hole diameter10.3 mm
- Pitch 82.5 mm
- Rigid disc
- Turning direction left side mount rear
- No speedometer hole.
Moto-Master brake rotors are manufactured from premium stainless steel, offering superb braking ability and are highly corrosion resistant. CNC machined, laser cut and precision double grinded within the tightest tolerance to eliminate any brake rotor vibration. All Moto-Master brake discs are made in Europe and ABE approved
Note: Check your local MCS dealer or the MCS sales department for exact type of approval and validity on bike model and years on the test report.

Specifications

Fitment

Rear left: 00-10 XL Sportster (excl. XR1200) (NU)
