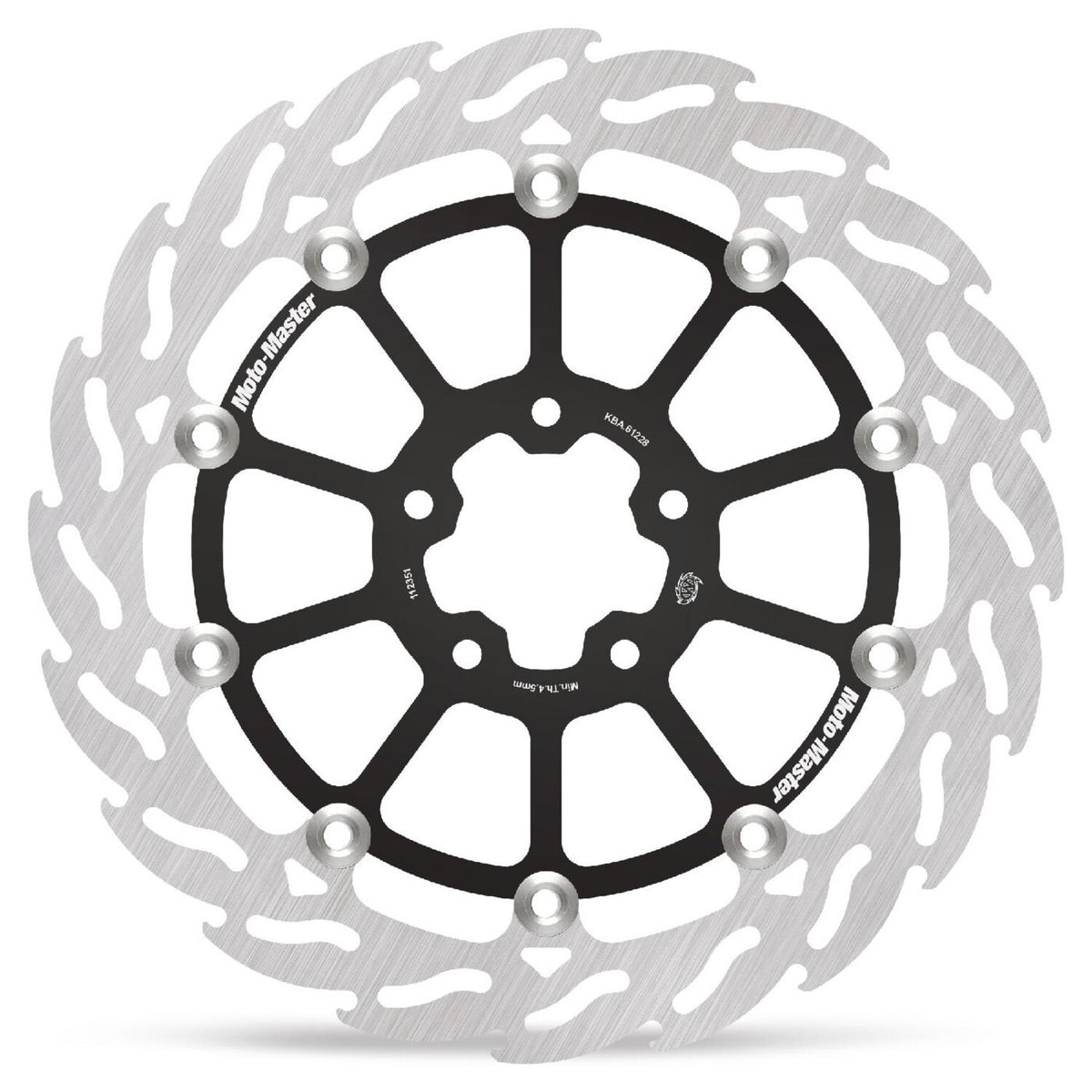

Moto-Master, 'Flame' floating brake rotor. Front left

Description

320mm (12.6") OD., 56.3mm I.D., 5x 8.7mm (5/16") bored mounting holes. Mount hole to hole distance 48.6mm.
Mount style 'K'.
Note: Fits Pan America models with OEM or models converted to OEM 19" laced (spoke) wheels only.
All Moto-Master brake rotors are manufactured from premium stainless steel, offering superb braking ability and are highly corrosion resistant. CNC machined, laser cut and precision double grinded within the tightest tolerance to eliminate any brake rotor vibration. All Moto-Master brake discs are made in Europe and approved.
- Stainless
- Outer diameters 320.0 mm
- Inner diameter 56.3 mm
- Thickness 5.0 mm
- Number of holes 5
- Hole diameter 8.7 mm
- Pitch 82.6 mm
- Type Floating disc with aluminum inner carrier
- Color inner carrier ring Black
- Turning direction left side mount
- Speedometer prepared No
- Comes with approval
- OEM replacement reference 41500195.
Note: Check your local MCS dealer or the MCS sales department for exact type of approval and validity on bike model and years on the test report.

Specifications

Fitment

Front Touring: 23-25 (NU) FLTRXSE; 23-26 FLHXSE; 24-26 FLTRXSTSE; 24-26 FLHX; 2025 (NU) FLHXU; 24-26 FLTRX; 2026 FLHXLSE.
Front Pan America with stock laced wheel: 24-25 RA1250SE; 2026 RA1250L; 2026 RA1250S.
Converted to 19" front OEM laced wheels on: 21-24 RA1250; 21-26 RA1250S; 25-26 RA1250ST
