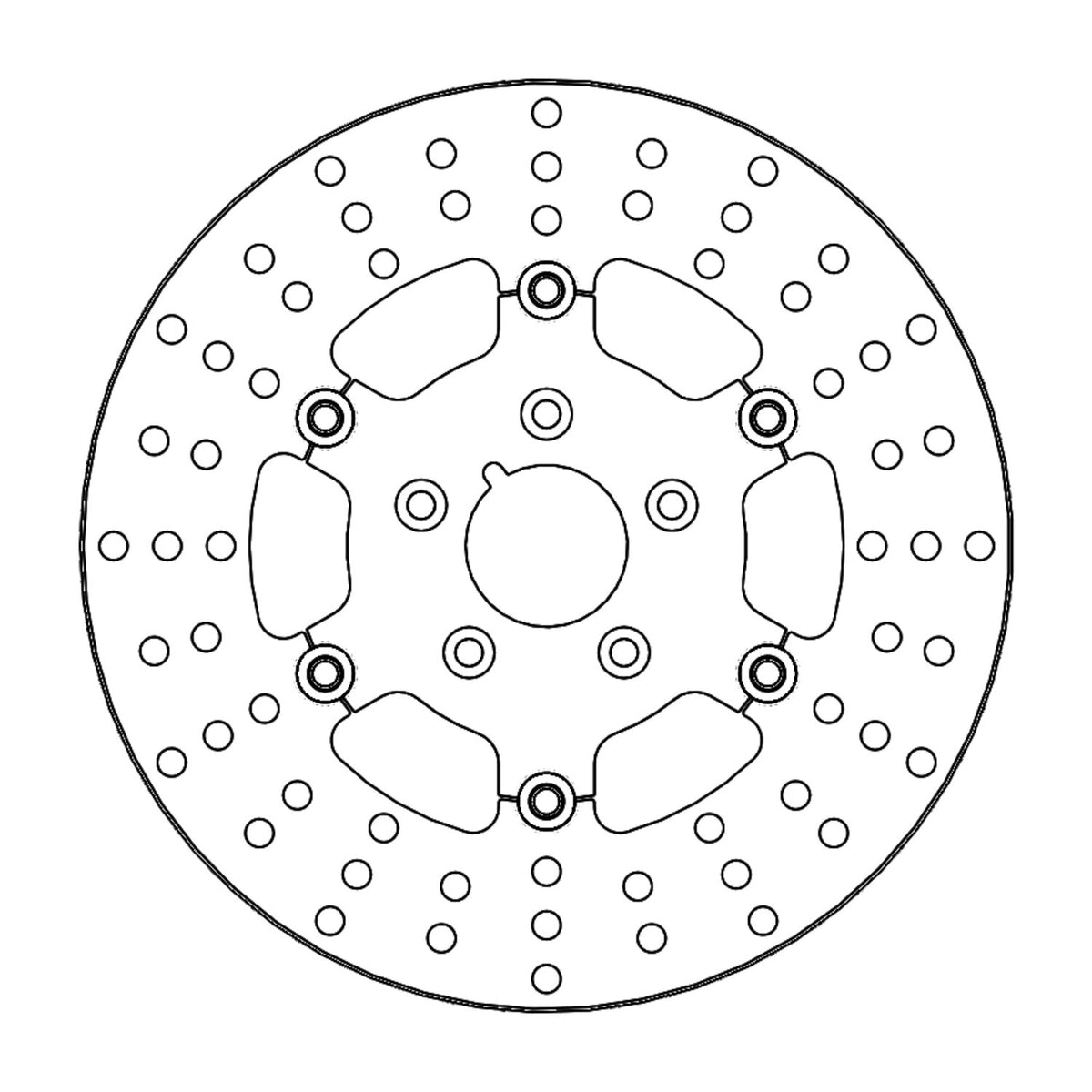

Moto-Master, Adrian front brake disc ABE appr.

Description

ABE approved; Floating; front left & right; stainless; clear stainless carrier;
11.5" / 292mm O.D., 50mm I.D. 8.7mm (5/16") counterbored mounting holes with 3.25" bolt circle (48.6mm mount hole to mount hole distance).
Mount style 'G'.
Moto-Master brake rotors are manufactured from premium stainless steel, offering superb braking ability and are highly corrosion resistant. CNC machined, laser cut and precision double grinded within the tightest tolerance to eliminate any brake rotor vibration. All Moto-Master brake discs are made in Europe and ABE approved.
- Stainless
- Outer diameters 292.0 mm
- Inner diameter 50.5 mm
- Thickness 5.0 mm
- Number of holes 5
- Hole diameter 8.7 mm
- Pitch 82.6 mm
- Type Floating disc with steel inner carrier
- Turning direction Omnidirectional
- Speedometer prepared No
- Color inner ring Stainless Steel
Note: Actual application may vary on model year & model depending on wheels used. When in doubt a fitment check, prior to ordering, is advised.
Note: Check your local MCS dealer or the MCS sales department for exact type of approval and validity on bike model and years on the test report.

Specifications

Fitment

Front left & right: 84-99 Big Twin, Twin Cam., XL Sportster (excl. XL Sportster1200C/S) (NU)

Part numbers
