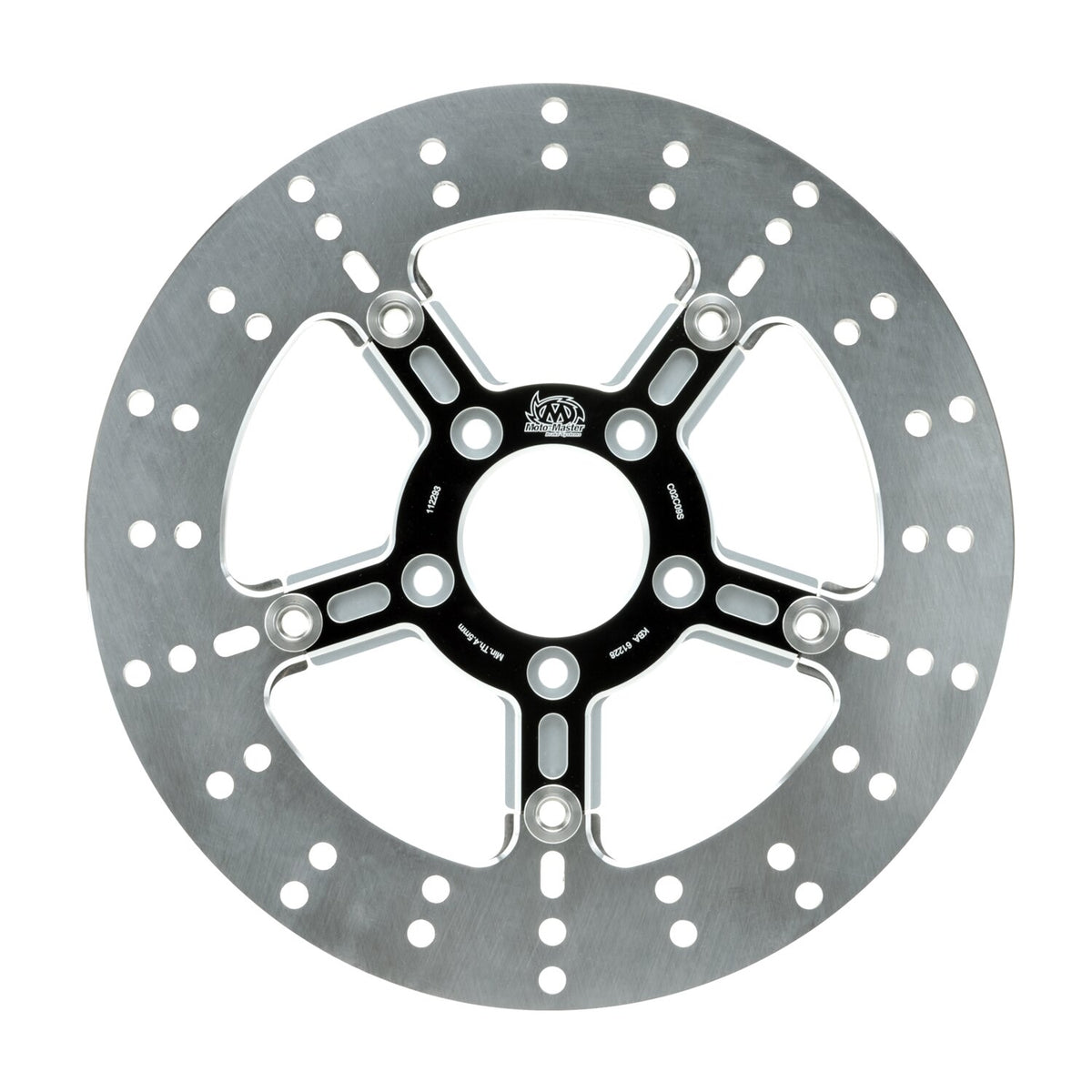

Moto-Master, Adrian 5-spoke floating brake rotor. Front L/R

Description

ABE approved; front left/right; black aluminum carrier.
11.5" / 292mm O.D, 56.3mm I.D., 8.7mm (5/16") counterbored mounting holes with 3.25" bolt circle (48.6mm mount hole to mount hole distance).
Mount style 'B'.
- Outer diameter 292.0 mm
- Inner diameter 56.6 mm
- Thickness 5.0 mm
- Number of holes 5
- Hole diameter 8.7 mm
- Pitch 82.6 mm
- Type Floating disc with aluminum inner carrier
- Turning direction Omnidirectional
- Speedometer prepared No
- Color inner ring Black
- OEM replacement reference 44260-00, 44156-00 & 44360-00A.
Moto-Master brake rotors are manufactured from premium stainless steel, offering superb braking ability and are highly corrosion resistant. CNC machined, laser cut and precision double grinded within the tightest tolerance to eliminate any brake rotor vibration. All Moto-Master brake discs are made in Europe and ABE approved.
Note: Check your local MCS dealer or the MCS sales department for exact type of approval and validity on bike model and years on the test report.
Note: Check your local MCS dealer or the MCS sales department for exact type of approval and validity on bike model and years on the test report.

Specifications

Fitment

00-14 Softail; 00-05 Dyna; 00-07 FLT/Touring; 00-13 XL Sportster; 08-12 XR1200 (NU)
