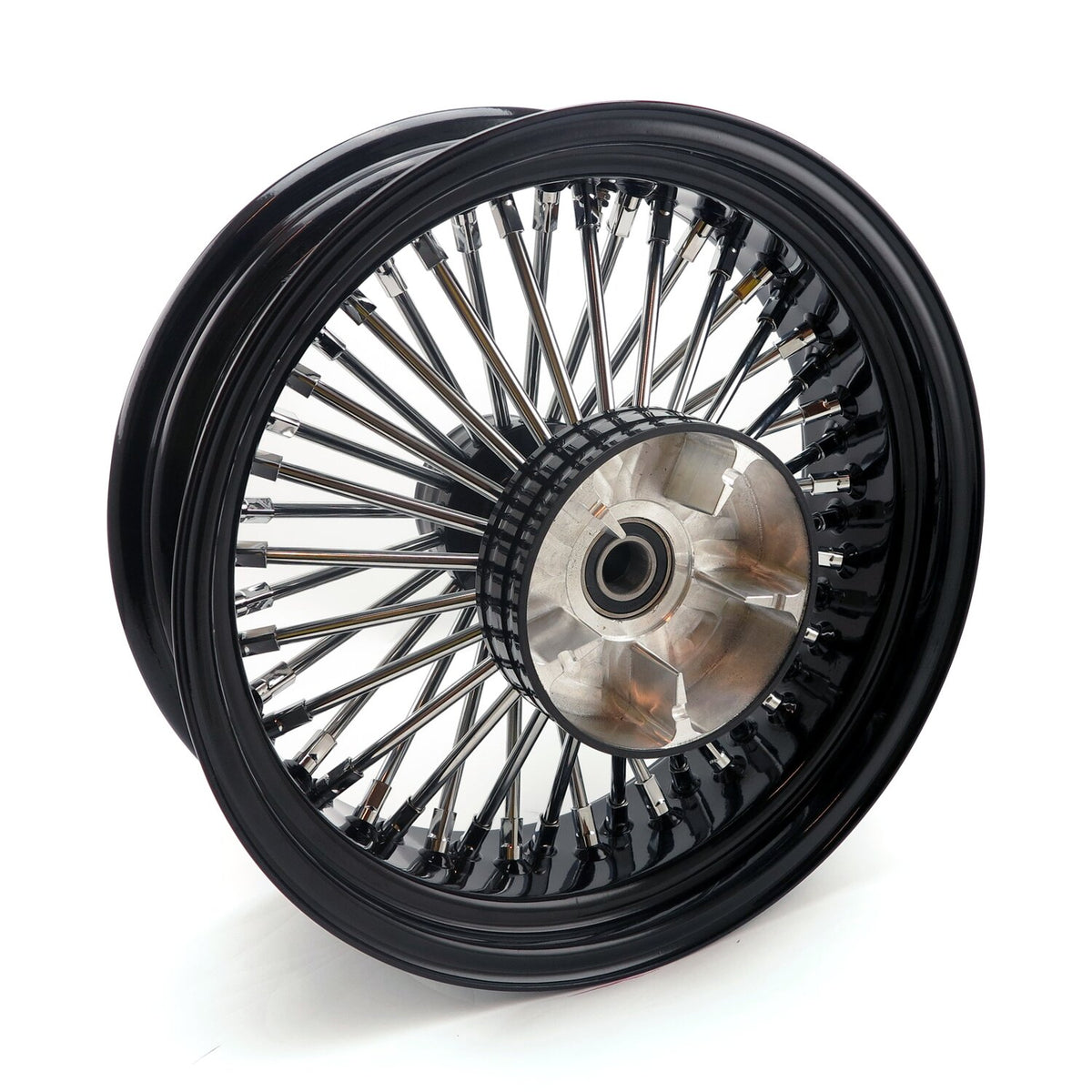

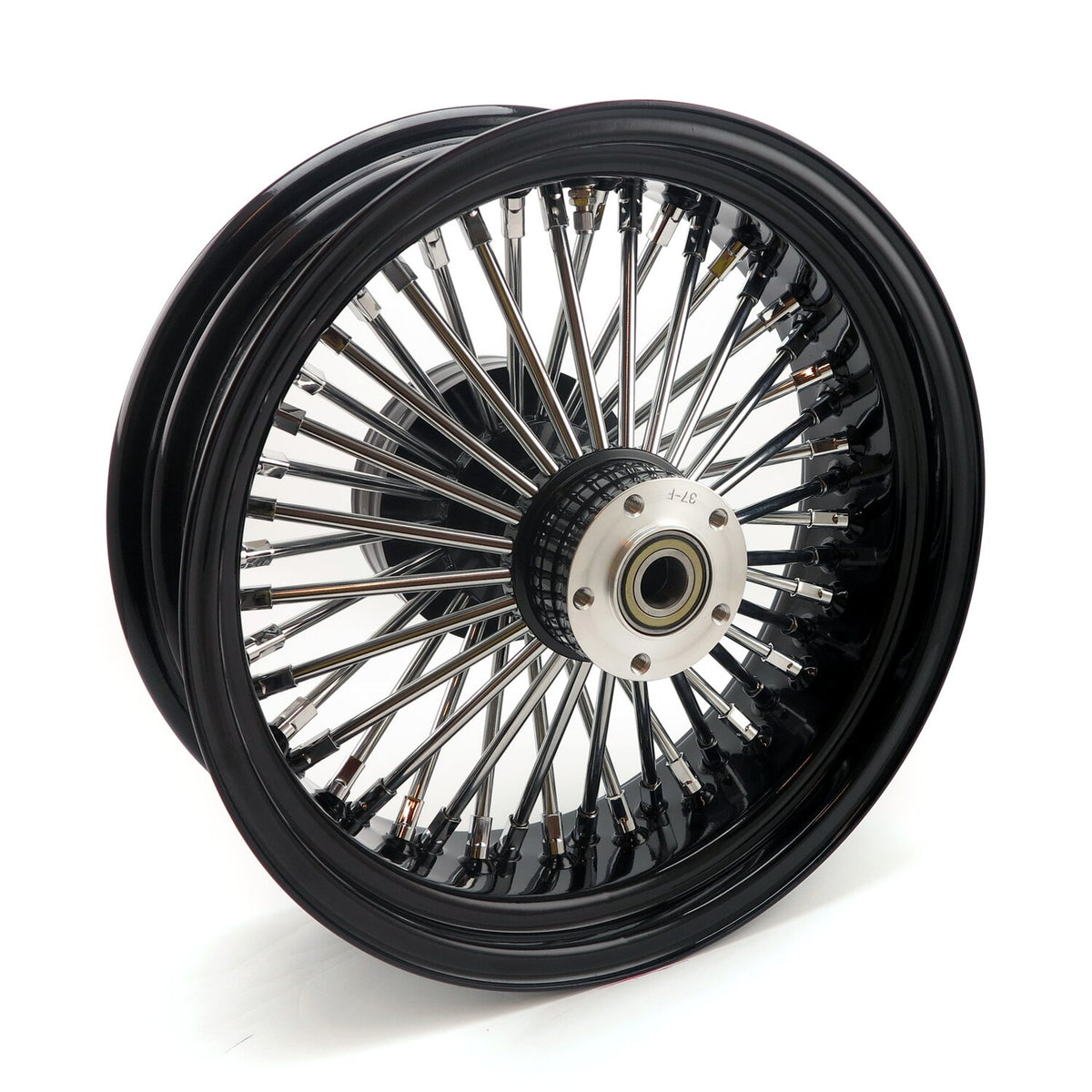

MCS radial 48 fat spoke rear wheel 5.50 x 16 black
Choose options
The details that matter
Details
Description
Ready to run black powder coated wheel that is built with 48 chrome plated 8mm diameter steel spokes & nipples, a steel rim and an aluminum hub.
Wheel is pre-sealed and suitable for tubeless tires. 1" ID roller bearings are pre-installed and the brake rotor/pulley flanges come in H-D style mount pattern.
Rear wheel is 3/6-16 UNC threaded on the brake rotor side and has a compensator bowl on the pulley side.
Note: This wheel comes with 1" (25.4mm) I.D. bearings. OEM 08-up Touring has 25mm wheel axle and bearings. With 3.25" brake rotor bolt circle, mount style 'A'. Without approval.
Specifications
| Unit | 1 |
|---|
Fitment
08-26 FLT/Touring in custom applications only (see note)
Part numbers
| Supplier SKU | 597897 |
|---|---|
| Manufacturer part |
Specifications
| Brand | MCS |
|---|---|
| Category | Rear wheels 16 inch |
