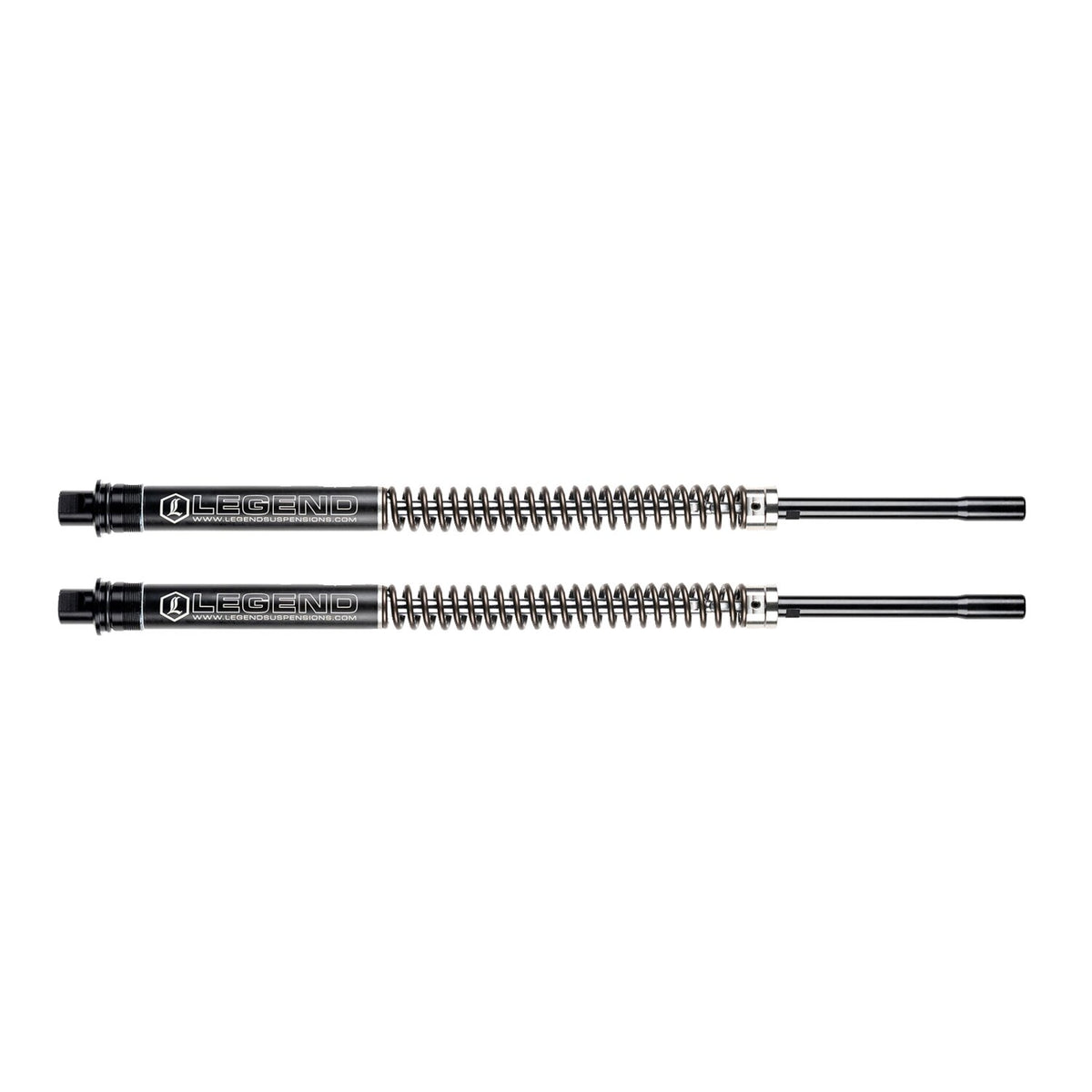

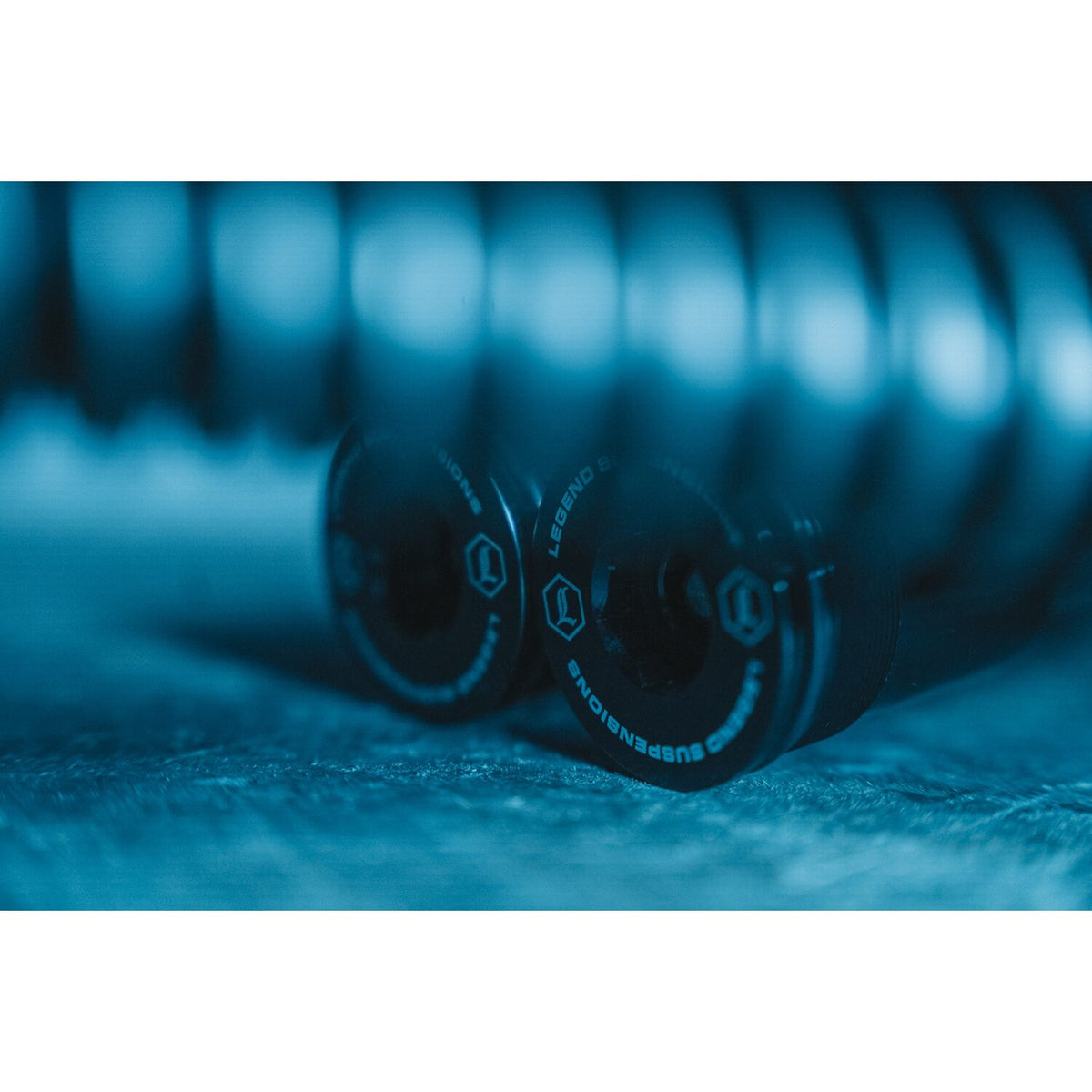

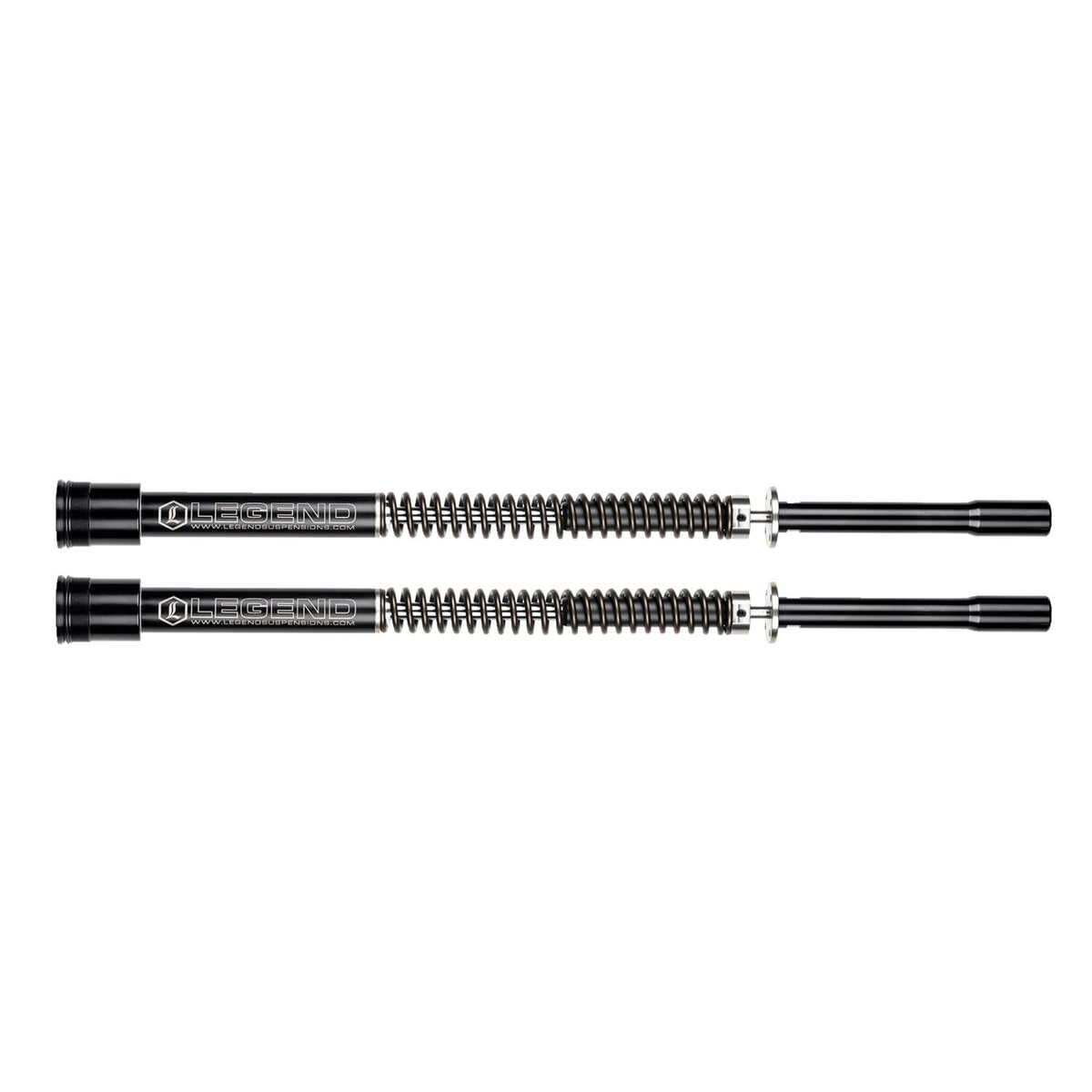

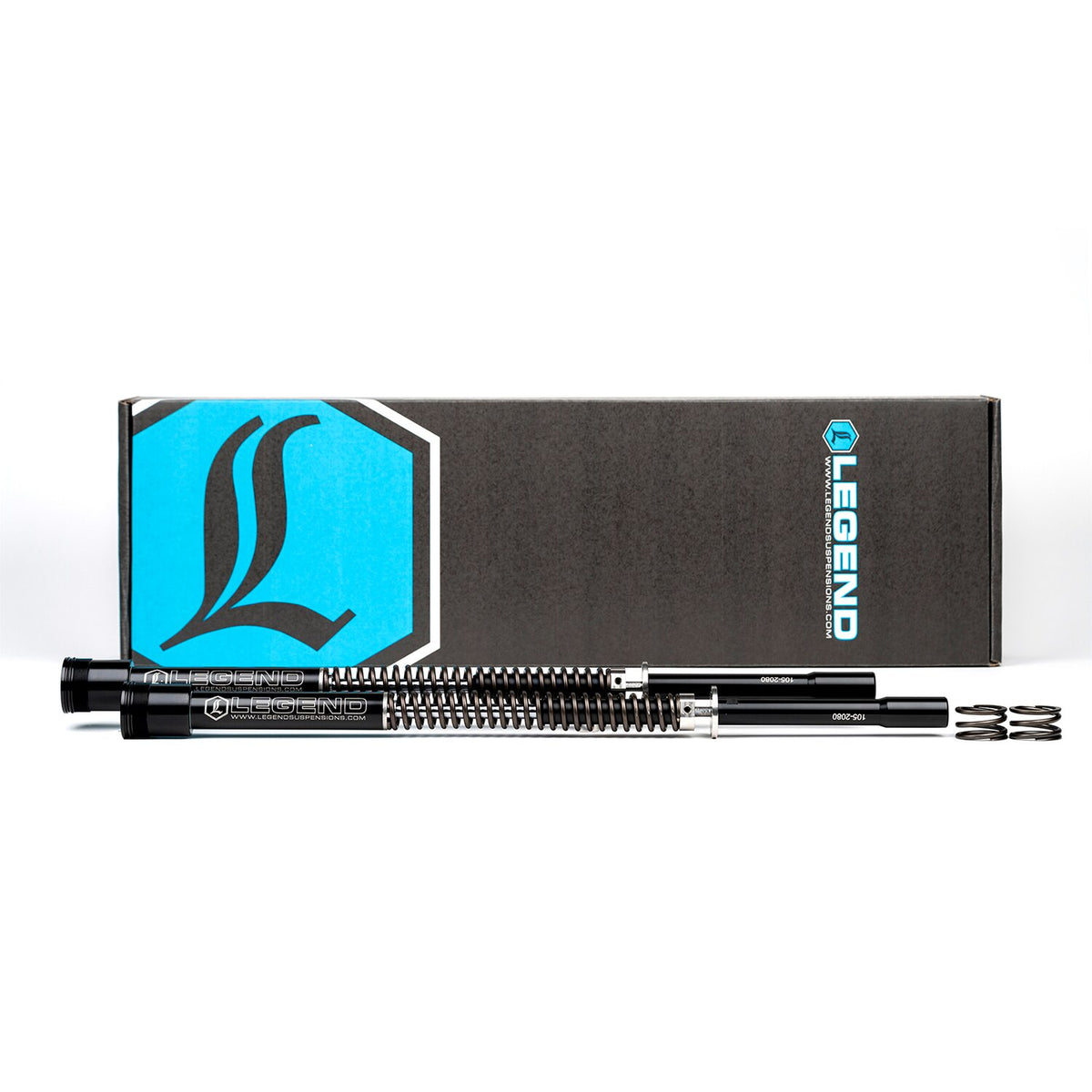

Legend, 49mm Axeo Performance fork cartridge set

Description

The performance spring rate delivers agile handling for aggressive riders without sacrificing comfort. Specifically designed to retain factory ride height on FL touring models. Improves cornering clearance and minimizes dragging floorboard or foot pegs. Improves ride quality, straight-line stability, high-speed cornering, and maneuverability. Increases resistance to bottoming out on large bumps or potholes. Threaded pre-load adjuster allows tuning for various rider weights and increased pre-load range. Reduces front-end dive and improves front tire traction under aggressive braking. Designed for optimum performance with all Legend’s rear suspensions. Includes two stock-length mono-tube, dual-chambered damper cartridges, and two rebound springs. Designed to be used with stock diameter front wheels.
Note: 97-01 models equipped with stock air fork will require the additional purchase of H-D OEM 45419-80 (two) and 45733-48 (two) to install.
Note: Will not fit 18-22 FLTRXSE CVO Road Glide.
Note: Will not fit models with inverted forks
Note: Not compatible with 21" and 23" wheels, unless a Legend travel limiting kit (99543 21") or (994544 23") is installed.
Note: When using a 23" wheel a 7° raked triple tree is required.

Specifications

Fitment

17-26 Touring (excl. 23-26 CVO with inverted forks)

Part numbers
