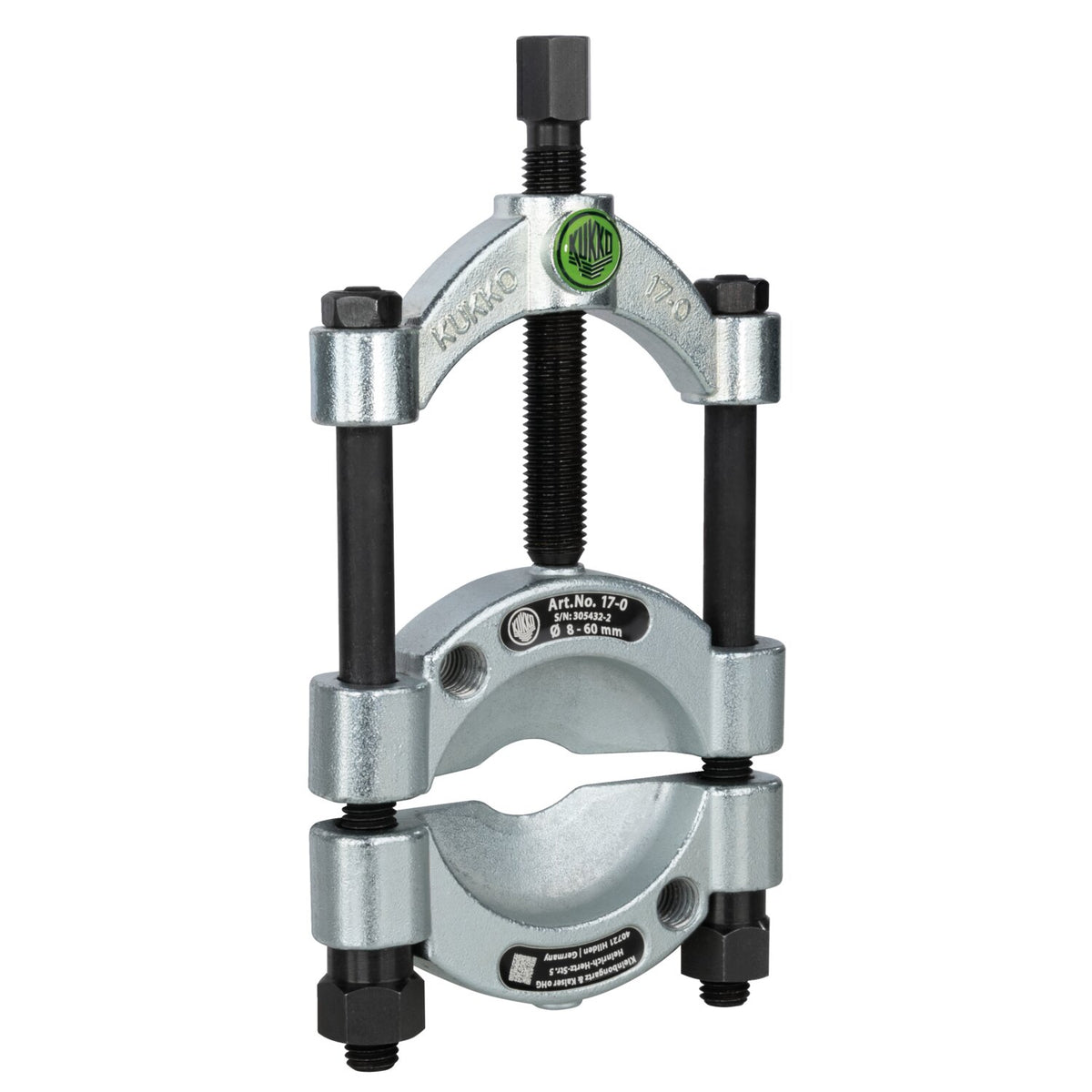

Kukko, separator with quick clamp spindle

Description

With quick clamp pressure spindle.

Used with hand tools to pull ball bearings, roller bearings and inner races from a shaft where the bearing is installed tightly to another surface, so there is not enough room to use regular pulling jaws.

When tightened, the bearing separator will pinch-in between the bearing and the surface making it possible to pull the bearing from the shaft.

Note: Note: 951077 bearing separator will require the use of 951040 puller. Separator and puller are sold separately.

- Build Series: 17

- Diameter of Shaft: 12-75mm

- Side Screw Length: 75mm

- Weight: 1.465kg

- Space Below: 0mm

- Space Next To It: 75mm

- Spread: 12-75mm

- Dept: 200mm

- With quick-clamping pressure spindle

- The sharp blades enable flush parts to be removed where pulling jaws cannot be used

- The wedge-shaped separator jaws are secured underneath the component to be removed

- The large supporting surfaces protect the parts to be pulled

- For use with build series 18 puller

- Easy to use, as the separator jaws are quickly and centrally tensioned with just one pressure spindle

- Ultimate stability when removing, as the separator and pulling device are screwed firmly together

Specifications

Fitment

Contact the workshop to confirm suitability for your application.

Part numbers
