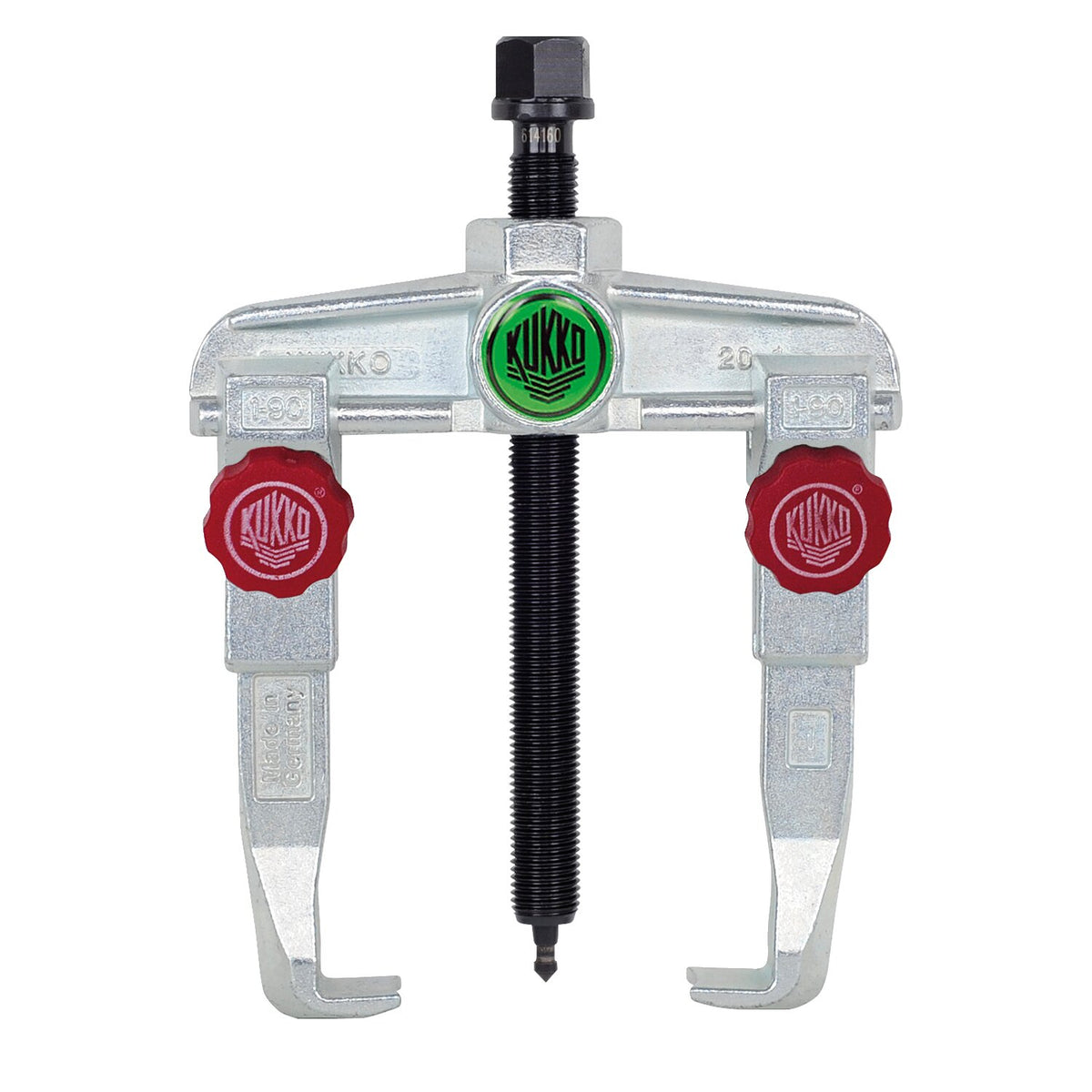

Kukko, gear puller with 2 quick adjusting arms. Regular

Description

Regular size puller arms. Gear pullers with the 'quick adjusting arms' allow sliding the jaws along the cross-beam to the required diameter, between 70 and 140mm, for a straight pull. Optional 150mm 'jaw extensions' are available for additional jaw reach when required. Jaws can be reversed which allows both internal as external pulling actions.

- Number Of Jaws: 2

- Build series: 20

- Puller arms look like: Drawing 1

- Spread (in mm): 30-90

- Depth (in mm): 100

- Spread Used Internal (in mm): 70-140

- Hex Drive (Male) (in mm): 17

- Maximum Load: 4500kg

- Maximum Torque: 80Nm

- Weight: 1.305kg

- Space Below (in mm): 10

- Space Next To It (in mm): 31.

Technologies used:

- Switch: A two-sided spindle tip provides optimal adjustment of the spindle to the shaft

- Glide & Fix: Improved geometry guarantees quick and easy movement of the jaws on the cross-beam

- Armlock: Cross-legged jaws guarantee maximum stability for suspending the jaws in the slider

- Quick Adjust: Knurls allow the jaws to be quickly released and moved on the cross-beam without the need for tools.

Note: Optional/replacement quick adjusting pullers arms are separately available as 'regular', 'narrow' and 'extremely narrow' for direct replacement or to to fine-tune the puller to the specific task ahead.

Note: Optional jaw extensions are available to extend the reach of the quick adjusting jaws. The extensions are interconnectible. Each jaw extension added is an additional 150mm reach.

Specifications

Fitment

Contact the workshop to confirm suitability for your application.
