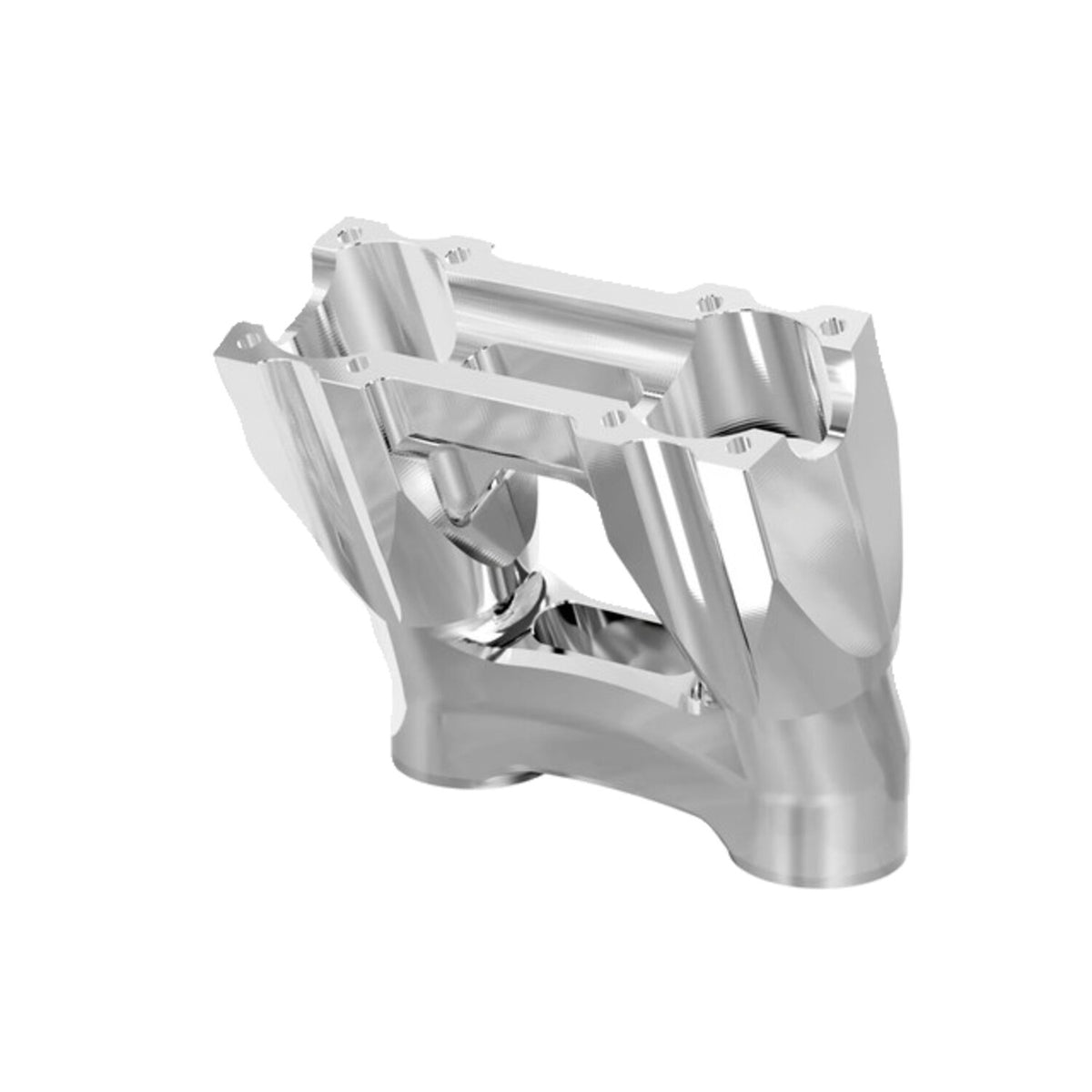

Kraus, Topless Isolated Kickback Risers. 6" rise. Raw

Description

Raw machined uncoated finish.
With 1" (25.4mm) diameter handlebar clamp area.
Sold without top clamp, the top clamp (top plate) is sold separately depending on application.
This 'Kickback style' moves the handlebar 1.5" (38mm) towards the rider.
These isolated risers are designed to be solid-mounted to the top triple tree and are installed with the supplied billet bushings. This creates a much more rigid bar setup, allowing for improved control and far greater use of your bike's suspension and braking capabilities. As for vibration dampening, the rubber bushings are relocated just below the handlebar. There they are placed inside the riser mid-section. The proprietary use of these rubber isolators drastically reduces the amount of unwanted movement at the bushings. This creates a much more solid bar feel, giving you greater confidence in your bike's handling. You'll notice the difference of a hard-mounted riser legs and relocated rubber isolators right away.
- Far less vibration than rigid mounted risers and a much better bar feel
- Bottom clamp has an opening to accommodate hidden wiring
- Top clamp ((top Plate) must be purchased separately depending on your application
- 3.5" center to center for standard OEM H-D fitment
- Bushing life is increased, maintenance lowered
- Wiring slot in the center of the riser body allows for easy installation and clean wiring.
Note: Sold without top clamp, the top clamp (top plate) is sold separately depending on application.
Note: Kraus Isolated Risers are designed and engineered for universal fitment. Some modification may be required depending upon application. This product is NOT compatible with models that include integrated bar clamps on the triple tree top clamp.
Note: Kraus Isolated Risers are a modular construction. You can run them without legs or swap out the risers legs for optional available lengths should you decide to run a shorter/taller rise down the line. See the 'optional Isolated Riser legs' for 4 available lengths between 3.5" (89mm) to 9.5" (241mm) tall.

Specifications

Fitment

H-D with 3.5" center to center mounting holes
