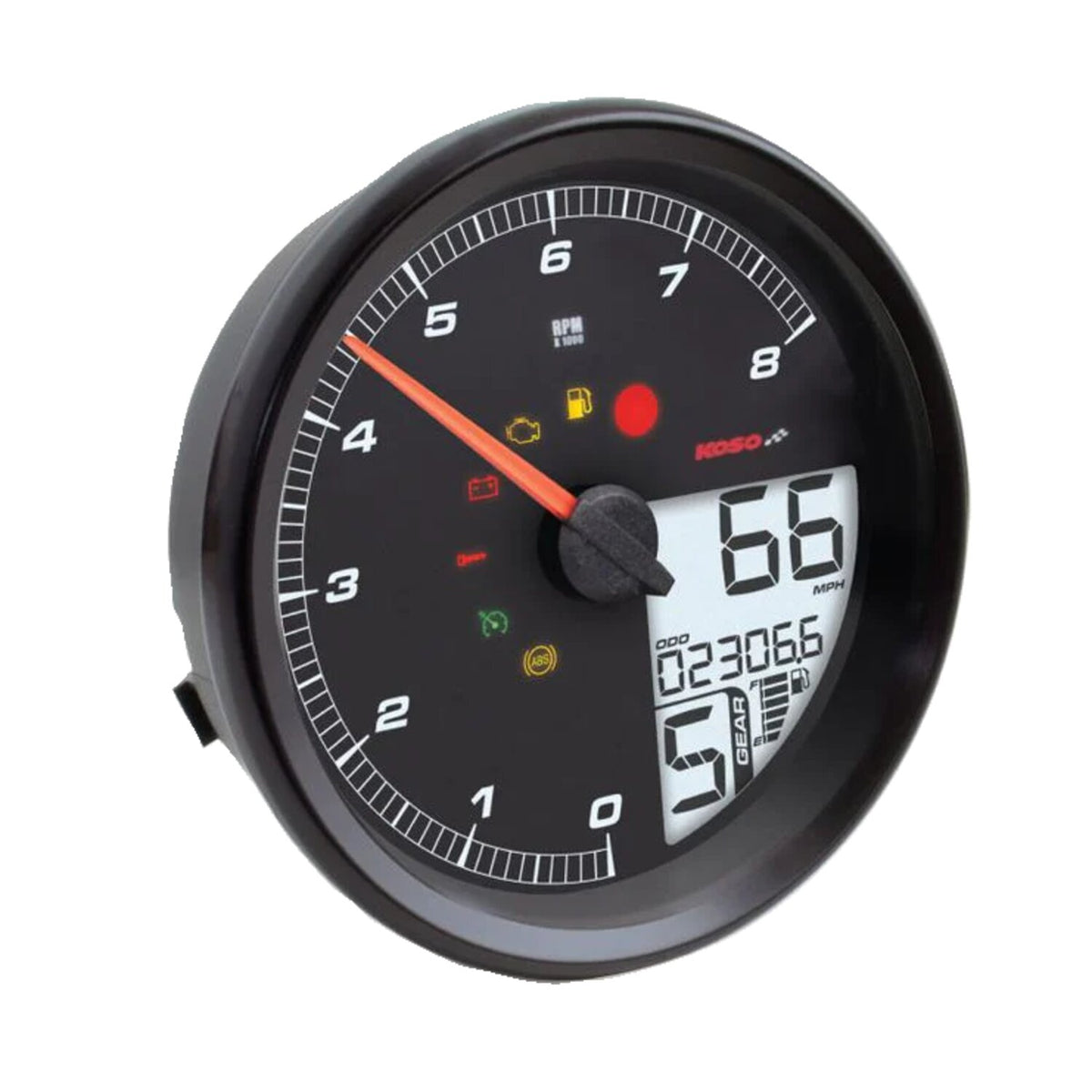

KOSO, HD-05 Speedometer / tachometer. Black bezel

Description

Black face, black bezel. Replacement for the later 4.5 (11.43cm) diameter tank mounted H-D speedometers. Connects plug & play to the existing wiring and is fully compatible with the bike's CAN-bus system. Offers speedometer (kmh/mph), tachometer, odometer, two trip meters, rev limit setting, shift light, multiple color backlights, gear indicator, engine temperature, battery voltage, fuel level indicator, average fuel consumption and more.
- 12V DC. CAN-bus compatible

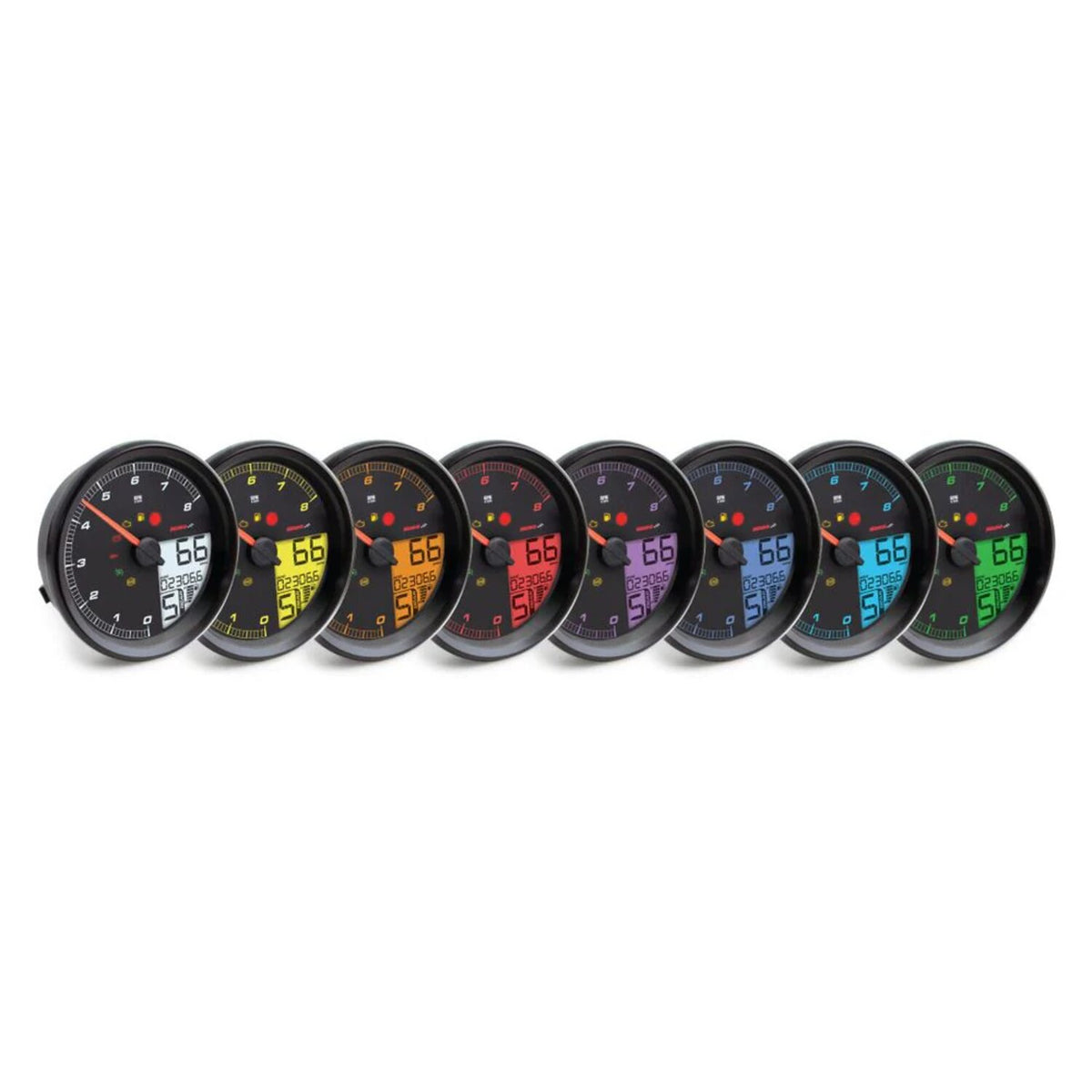

- Multiple color backlight: Red / Orange / Yellow / Green / Blue / Indigo / Purple / White
- Backlight brightness: 5 levels
- Speedometer: 0 to 360 km/h (0 to 225 mp/h)
- Display delay : < 0.5 seconds
- Odometer: 0 to 999.999 km (miles)
- Trip meter A/B: 0 - 9,999.9 km (miles) with auto reset after 9.99.9 km (miles)
- Tire circumference adjustment: 50 to 210%, per 1%
- Gear indicator: Off / Neutral and 1 - 6 gear
- Tachometer: 0 to 8,000 rpm
- Rev limit light: 2,000 to 8,000 rpm. Warning light flashes when set rpm is exceeded. Sets per 100 rpm
- Maximum speed warning adjustable (light or flash)
- Engine temperature warning: 40 - 215 °C (40 - 419 °F) adjustable
- Fuel gauge: 6 levels
- Tank volume: Off / 1 to 9.9 gallons (approx. 3.8 to 37 liters)
- Average consumption fuel consumption: Off / liters per 100 km per liter / Miles per gallon (US spec) / miles per gallon (UK spec)
- Clock: 12h / 24h
- Volt meter: 8-18 V DC
- Maintenance intervals: Off / 500 to 16,000 km (300 to 10,000 miles). Sets per 100km (miles)
- Fuel reserve: 0 to 9.999 km (miles). When range is less than 10 miles (16 km) 'LO RNG' warning will appear on display
- Indicator lights: RPM warning, fuel reserve, engine check, low voltage, anti-theft devise, cruise-control
- Works in: 14 to 140 °F (10 to 60 °C)
- |Required voltage DC 12 V
- |Confirm JIS D 0203 S2

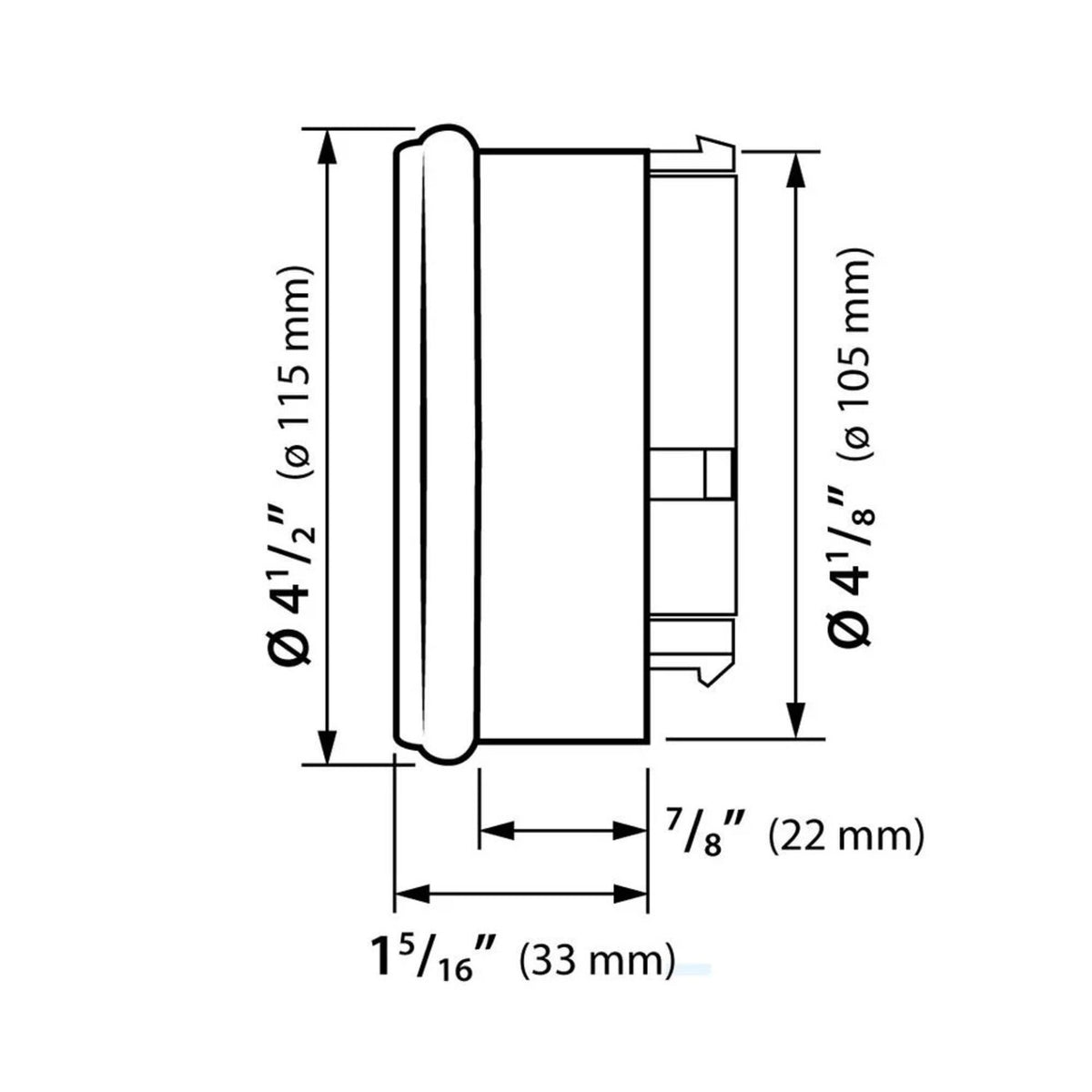

- Dimensions: (D x W) Ø 45/8 x 13/4 "(Ø 117 x 45 mm)
- Weight: 208.5 gram (7.36 oz.)

Specifications

Fitment

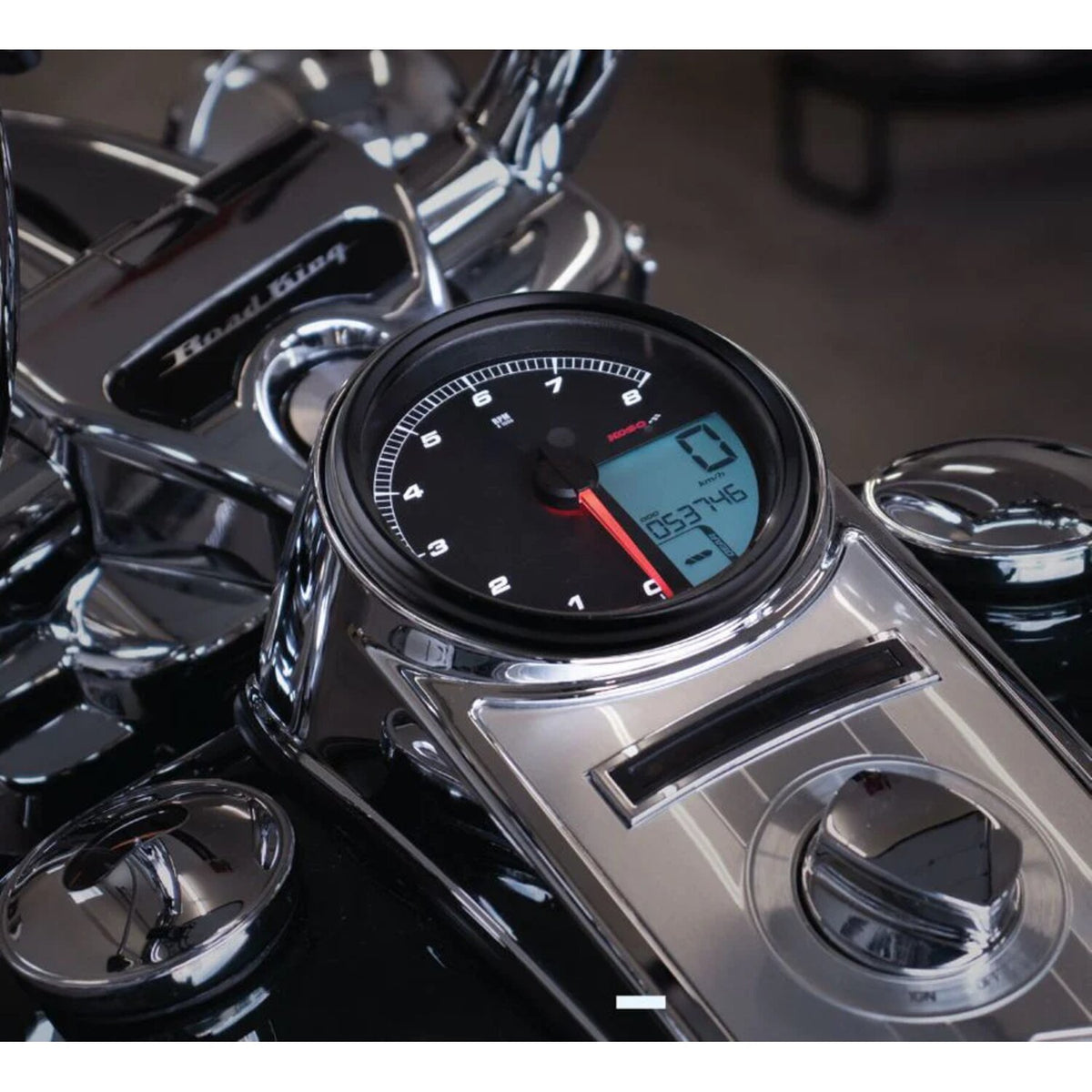

11-17 (NU) Softail; 14-22 (NU) FLHR Road King; 17-25 FLHRXS Road King Special; 12-17 (NU) FXDWG. (excl. models with traction control)
