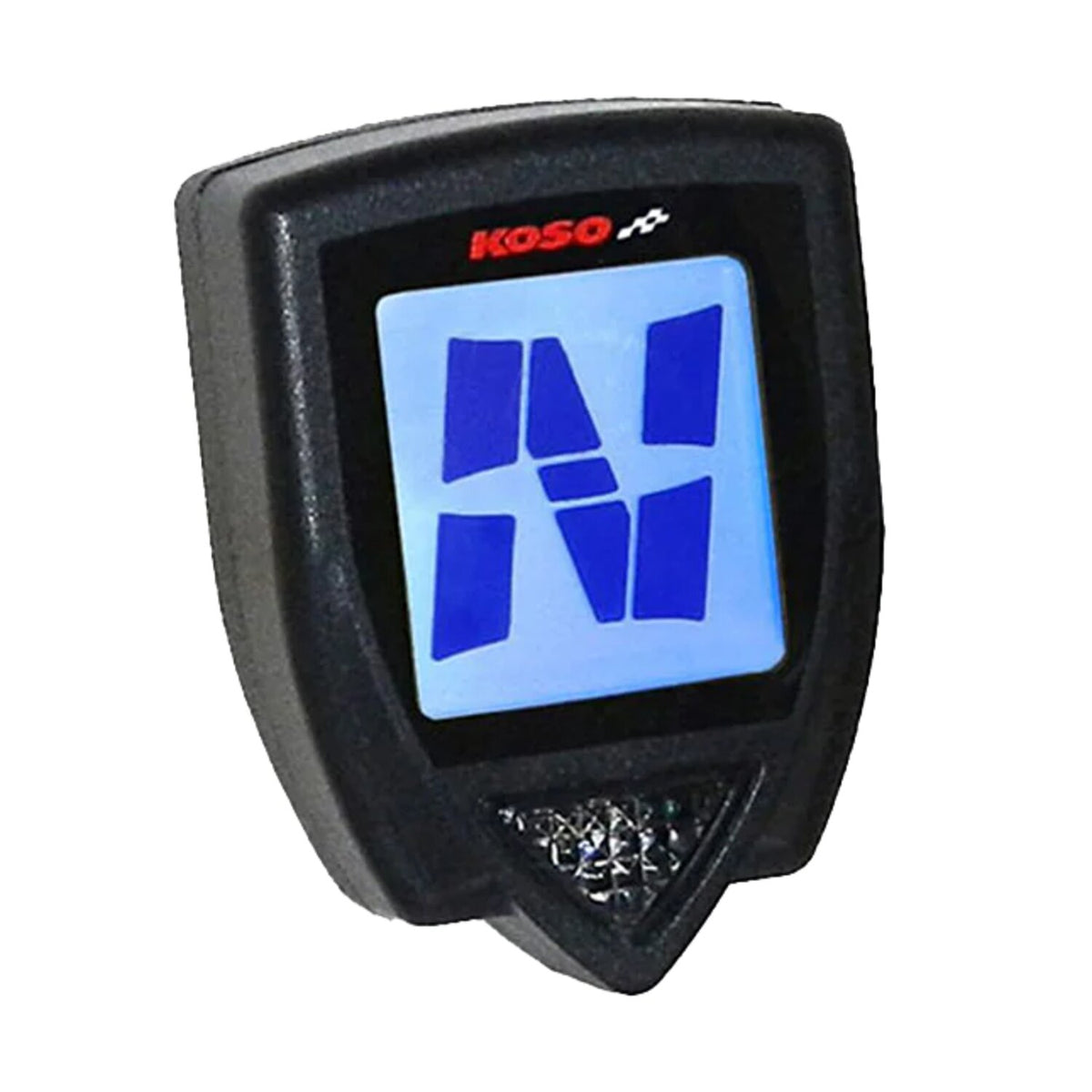

KOSO, digital gear indicator

Description

In days gone by, with 3 gears on your Flathead, life was easy. Today, with up to 6 gears, it is just functional to have a gear indicator to remove guess work. The large numbers and blue backlight make it easy to see, day or night.
- Gear indicator display: N,1, 2, 3, 4, 5, 6, 7
- Large numbers
- Blue backlight
- Effective voltage DC12V
- Temperature from -10 to +60°C
- Standard JIS D 0203 specified instrument
- For models equipped with the 3-pin J1850-bus system

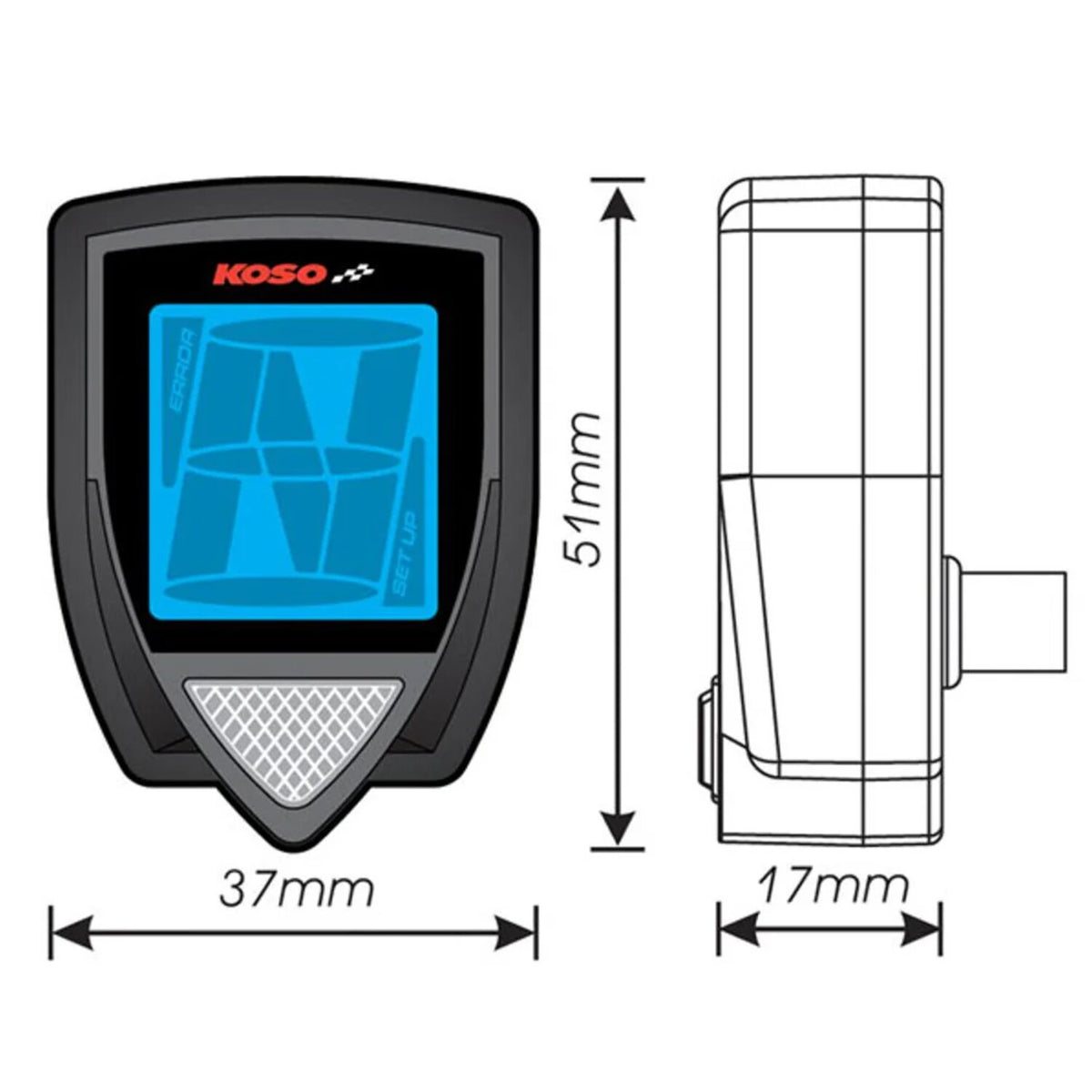

- Dimensions: 37mm wide x 51mm high x 17mm deep
- Weight approx. 51.3 grams.
Note: See 701741 for the optional gear indicator bracket. It allows mounting the indicator to to 1-1/4" (32mm) handlebars.

Specifications

Fitment

04-11 H-D (excl. CAN-bus and 07-08 XL1200 models) (NU)

Part numbers
