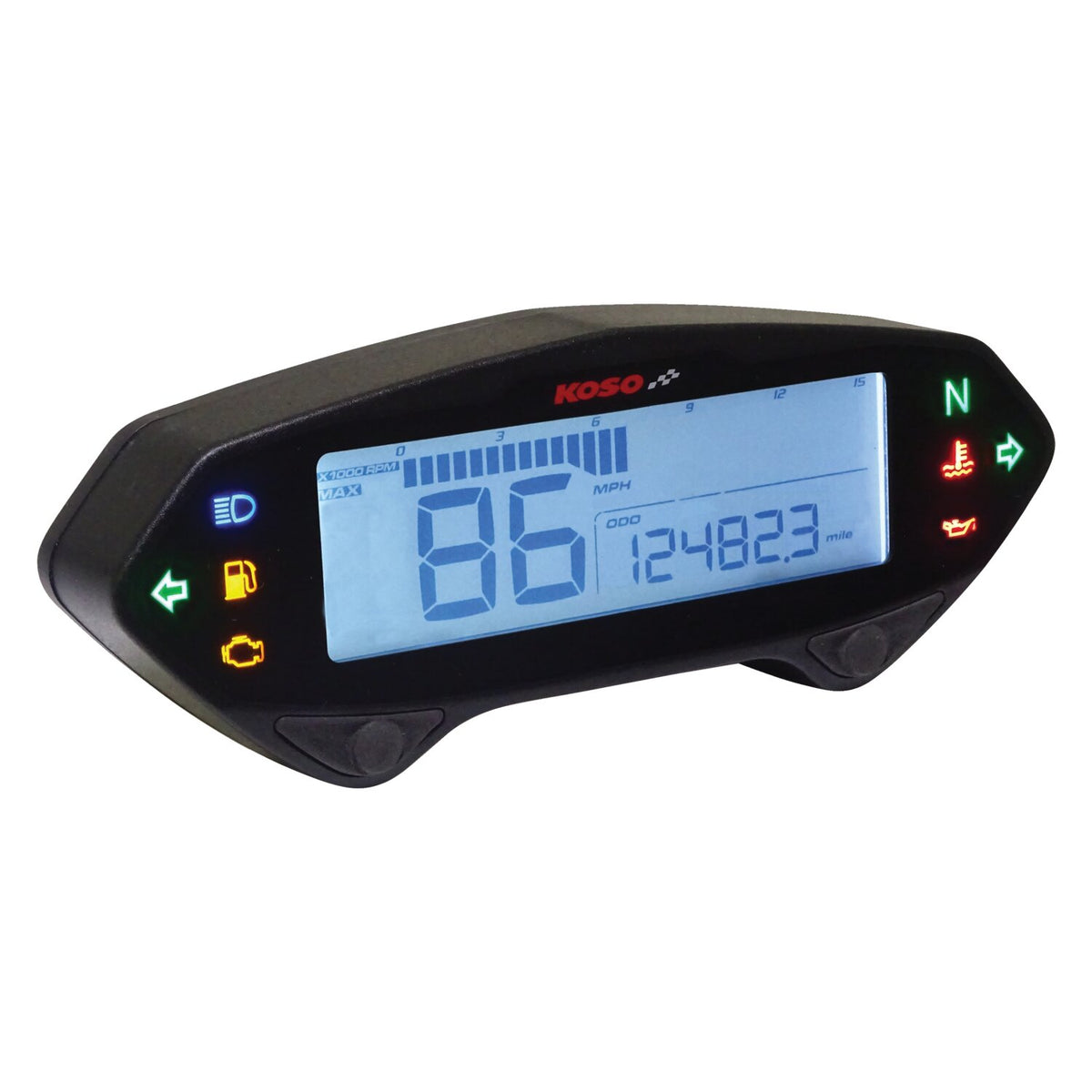

KOSO, DB01-RN multifunctional speedometer / tachometer

Description

The improved successor of the DB-01R and DB-01R+ series. Designed for all types of motorcycles. Bright display. E-approved and ABE approved. Comes with an active sensor so the use of a magnet is not required. Offers a very wide range of information in a small package of just 120mm wide x 20mm deep x 50mm high.

- 12V DC

- White backlight, 5 brightness levels

- Speedometer: 0-360 km/h (0-225 mph)

- Odometer: 0 to 99,999.9 km (miles)

- Trip meter A/B: 0 to 999.9 km (miles)

- Tire circumference adjustment: 300-2500mm, per 1mm

- Sensor points: 1-20

- RPM setting range: 0.5, 1, 2, to 25

- Tachometer: 0-15,000 rpm, 10 rpm adjustable

- RPM range: 0-10000 rpm / 0-12000 rpm / 0-15000 rpm

- Volt meter: 8.0 to 16.0 V DC

- Clock: 0:00 - 23:59 (24h) / 1:00 - 12:59 (AM/PM) (12h)

- Fuel level indicator: Adjustable for 100 ohms, 250 ohms, 270 ohms, 510 ohms, 1200 ohms, user

- Fuel level display: 10 bars. With the fuel level below 10-50% (adjustable), the fuel level will start flashing

- Top speed recording: 30 - 360 km/h (19-225 mph)

- Average speed recording: 0-360 km/h (0-225 mph)

- Hour meter A/B (total engine run time): 0 to 9999,9 hours, with automatic reset after 9999,9 hours

- Volt meter: 8.0 to 16.0 V DC

- Clock: 24h / 12h adjustable

- Oil change interval: 8,000 to 900km / miles adjustable. Counts down as the number of km / miles increase. From 0 km/miles the warning light flashes and the device counts down to maximum minus 999 km/miles. Manual reset

- ABE approved

- JIS standard

- Dimensions 120mm wide x 20mm deep x 50mm high

- Comes with an active sensor. The use of magnets for the sensor is not required

- Complete with installation hardware kit, brackets and instructions

Specifications

Fitment

Universal
