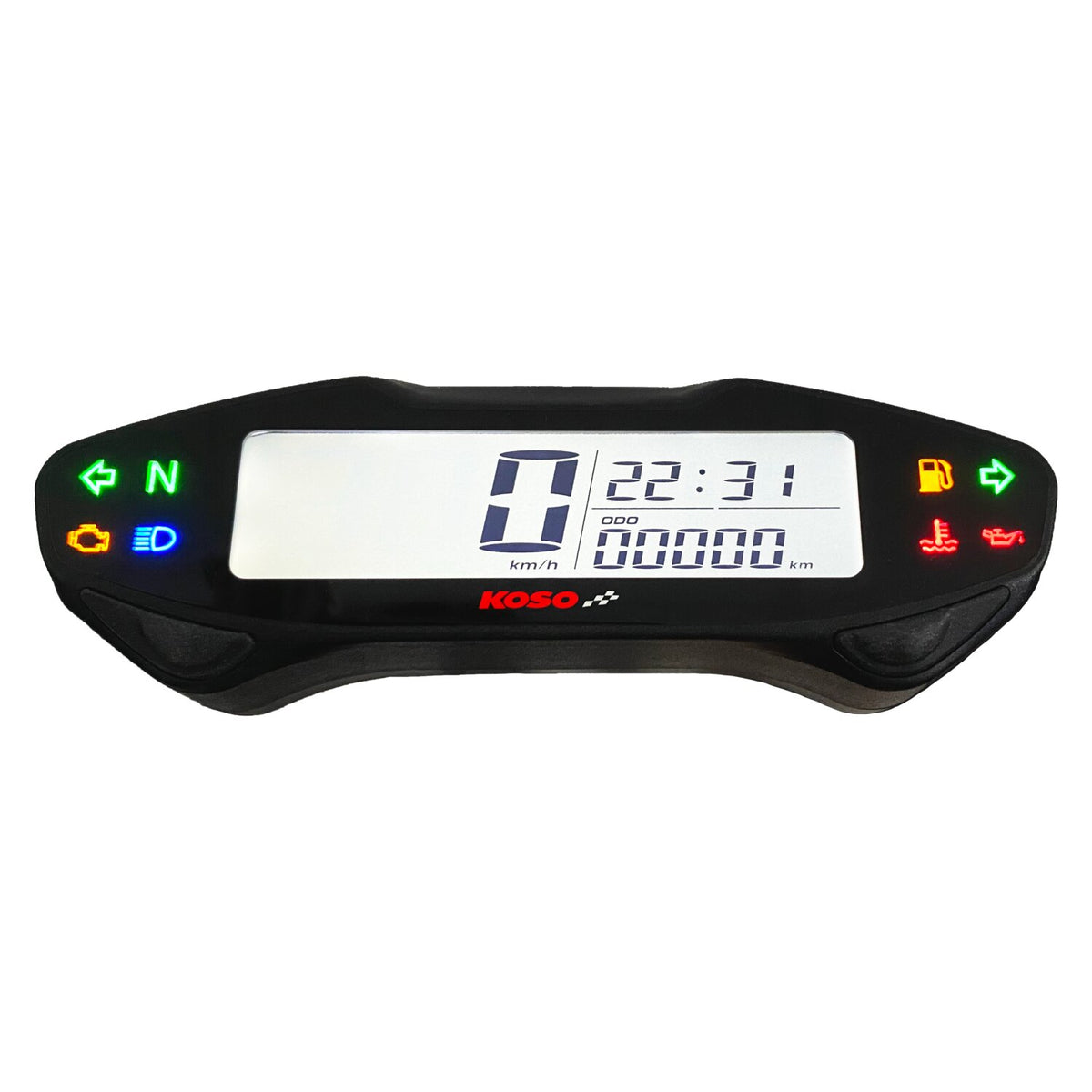

Koso, DB EX-03 multifunctional speedometer

Description

Koso, DB EX-03 multifunctional speedometer

Black plastic housing. Does not include a tachometer. Comes with a speedometer, odometer, hour meter, clock, stop watch, voltmeter, workshop interval settings, records values as maximum speed, maximum voltage and average speed. Equipped with indicator lights for engine oil, low fuel level, water temperature, high beam, turn signals and an engine check light.

- Speedometer: 0 to 360 km/h (0 to 225 mph)

- Odometer: 0 to 99.999 km (miles)

- Trip counter A and B: 0 to 9,999.9 km (miles), auto reset after 9999.9 km

- Hour meter (total engine run time) to 99.999 hours

- Operating hours counter A/B: 0 to 9999.9 hours, auto reset after 9999.9 hours

- Clock: 00:00 to 23:59

- Volt meter: 8.0 to 18.0V DC

- Stopwatch: 0:00:00 to 9:59:99 to 0.01 seconds

- Workshop interval setting: 300 to 5000km. Manually reset

- Average speed: 0 to 360 km/h (0 to 225 mph)

- Max Speed: 0 to 360 km/h (0 to 225 mph)

- Max Voltage: 8.0 to 18.0V DC

- Instrument battery level: 4 levels

- Operating temperature range: -10 °C to +60 °C

- Dimensions: 120mm wide x 38.8 x 34.2mm

- JIS D 0203 S2 rain test approved

- Weight 70 gram

- Indicator lights: Left turn signal & right turn signal (green), oil (red), water temperature (red), engine check light (amber), low fuel (amber), neutral (green), high beam (blue)

- Dimensions 120mm wide x 38.8mm x 34.2mm

- Weight 70 gram

Specifications

Fitment

Universal

Part numbers
