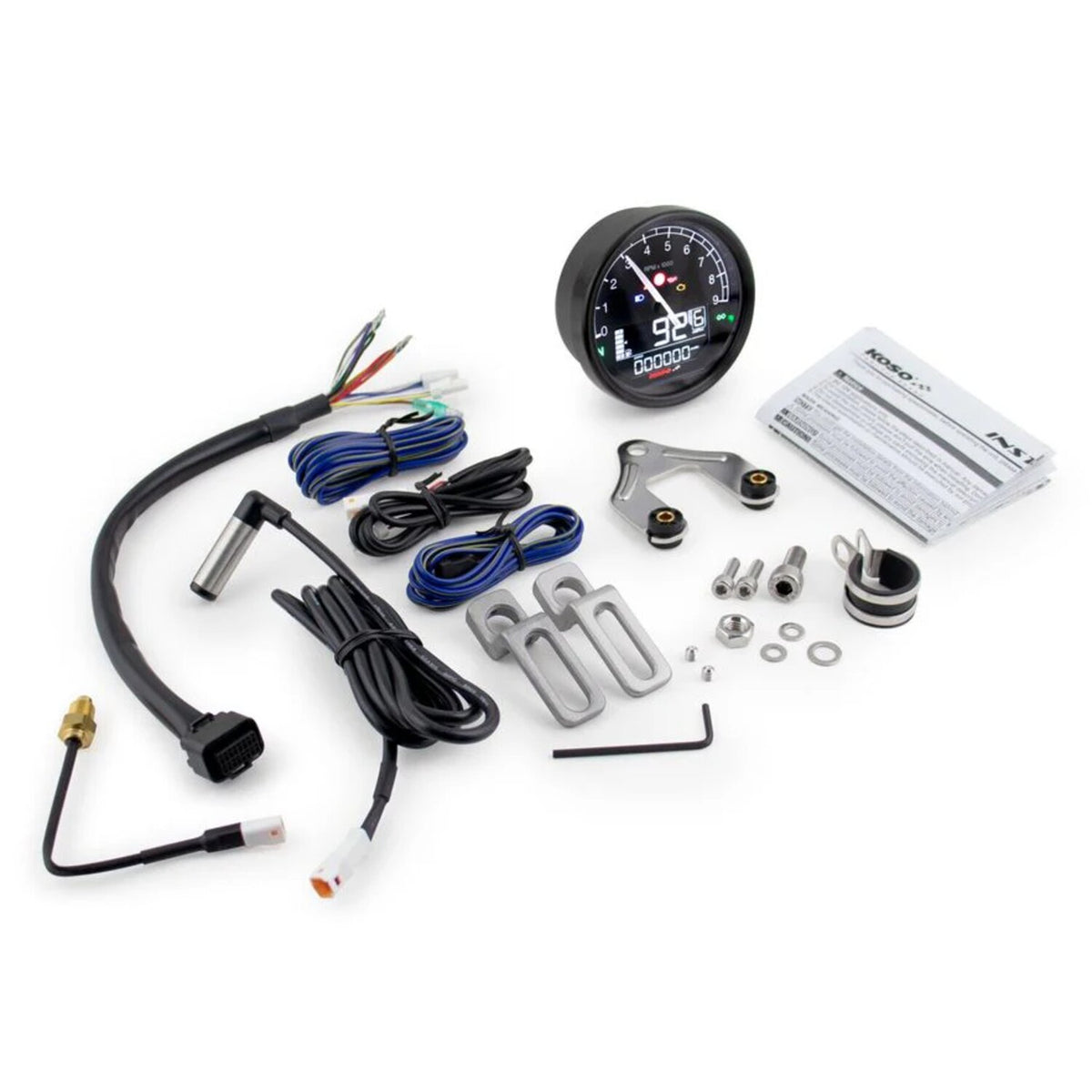

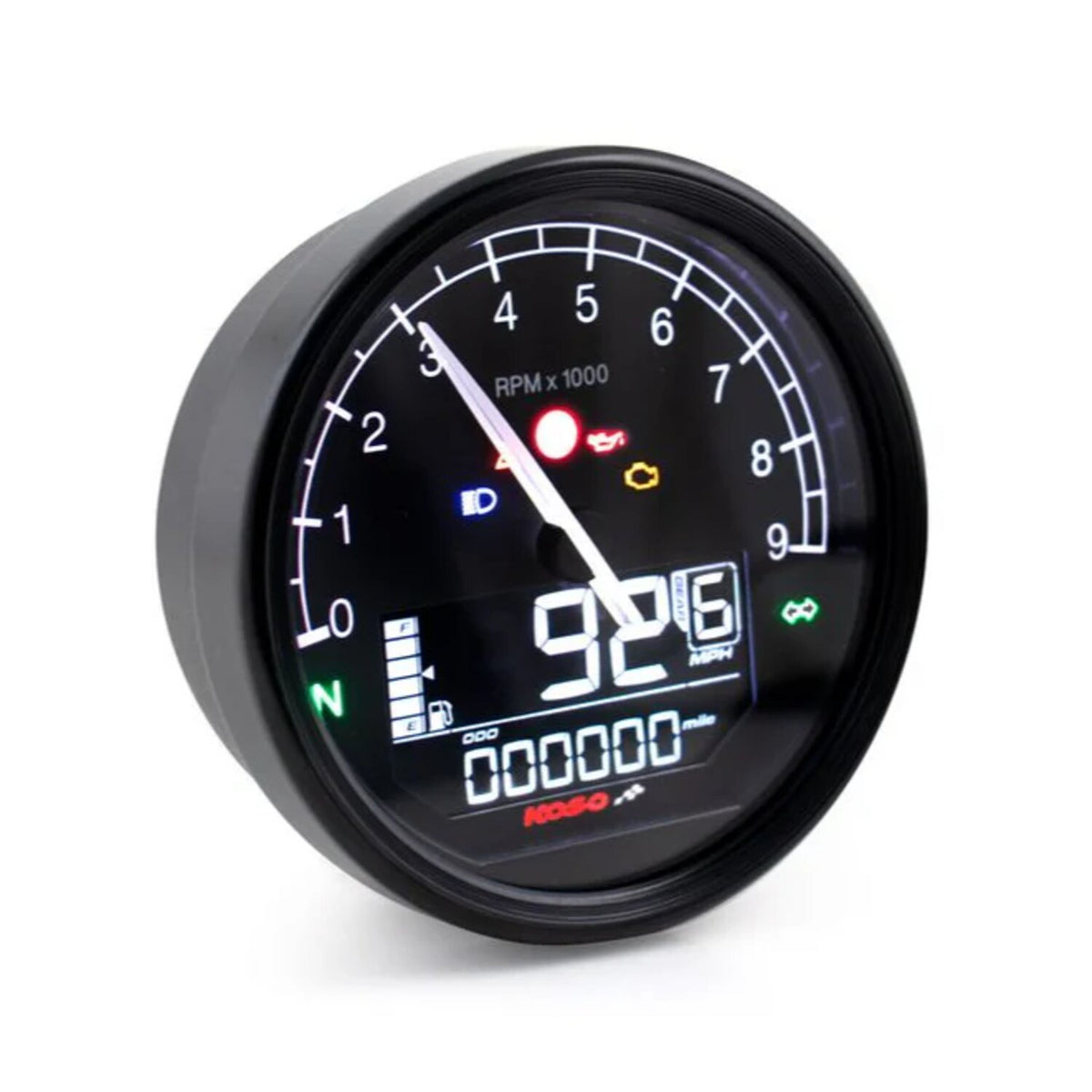

KOSO, D80 TNT-05 HD Speedometer/Tachometer

Description

Black face with black bezel. 80mm diameter ABE approved 'multimeter' instrument with more features than you would think at first glance. With 8 color backlight display setting. Features include:
- Speedometer / Tachometer
- Speedometer: 0 to 360 km/h (0~225 mph). Per 1km/h (1mp/h)
- Warning speed limit: 30 to 360 km/h (19 to 225 miles/h). Per 1km/h (mile/h). When exceeded warning light flashes
- Odometer: 0 to 999.999 km/miles. Per 1km/mile
- Trip meter A/B: 0 to 9999.9 km / miles. Per 0.1 km/mile
- Oil change interval: Off / 500 to 16,000 km (300 to 10,000 miles). Per 100km/miles
- Fuel gauge display range: 6 levels (100%), per 1 level
- Fuel gauge setting range: 100 Ω, 250 Ω, 270 Ω, 390 Ω. Resistance (Ω) 510 Ω, 1200 Ω, Sw, Custom (learning mode), OFF
- Tire circumference adjustment range: 50% to 200%. Per 1%
- Warning lights: Speed warning, Warning 1, Warning 2 , neutral, turn signal, high beam, engine. Type of warning light (L), Slow flash (S), Flash (F)
- Gear indicator: N, 1, 2, 3, 4, 5, 6
- Digital tachometer: 0 ~ 8,000 rpm per 100 rpm
- Shift light: 1,000 ~ 8,000 rpm per 100 rpm
- Thermometer: °C or °F (switchable)
- Water temperature: -30 ~ 225°C (-22 ~ 437°F) per 1°C (°F)
- Clock setting range: 24H / 12H
- Voltmeter: 8 - 18 volts
- Low voltage: DC 8.0~13.0 V. Per 0.1V
- Backlight brightness 5 levels: 1/5 (darkest) to 5/5 (brightest). Per 20%

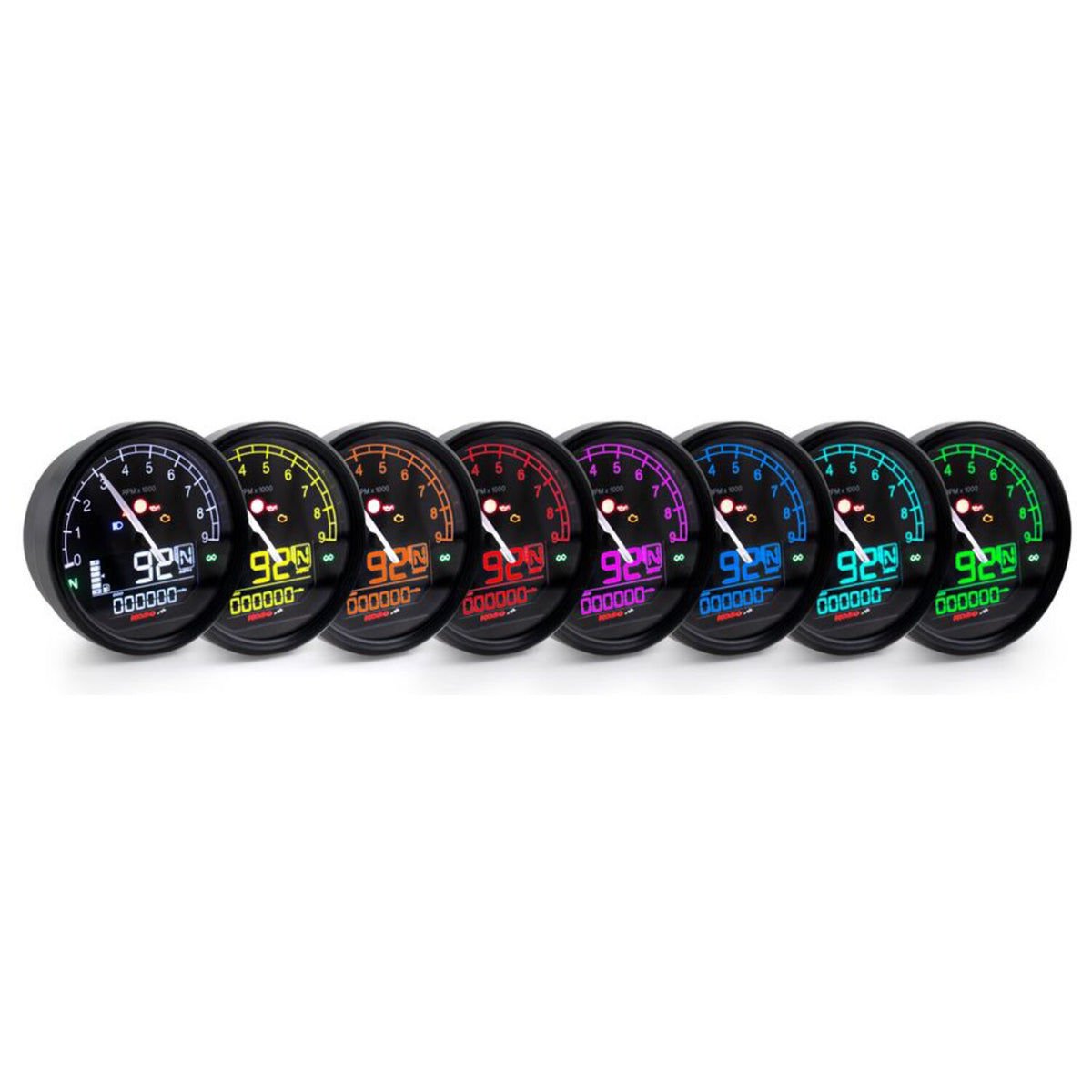

- Background colors: Purple , Red, Yellow, Green, Blue, Light blue, White
- Voltage: DC 12V
- Instrument standard: JIS D 0203
- Dimensions: 94.7 x 94.7 x 69.2 mm
- Weight: 165 gram
- ABE/KBA 91397

Specifications

Fitment

Contact the workshop to confirm suitability for your application.

Part numbers
