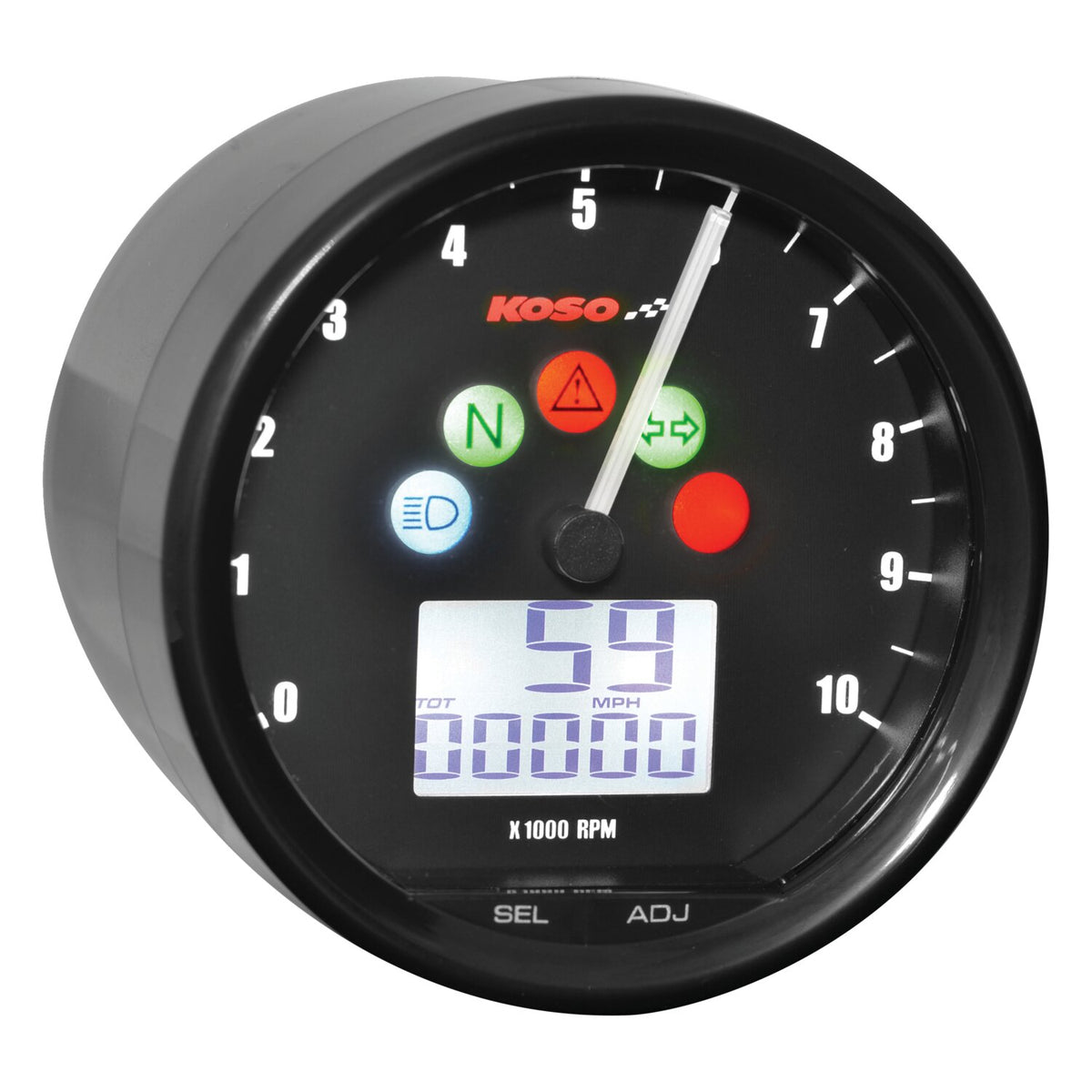

KOSO, D64 multifunctional speedo/tachometer. Black

Description

Black with black face. This ABE/KBA approved 64mm diameter 'multimeter' instrument has it all: Speedometer, tachometer, trip meters, indicator lights, fuel gauge, shift light, clock and more. A great solution for an all-in-one instrument for bikes where basic is King. Stepper motor driven to better resist vibrations.
- 12V DC
- Speedometer: 0-360 kmh (0-225 mph) switchable
- Display impulse: <0.5 seconds
- Odometer display range: 0-99999 km (miles)
- Trip meter A/B display range: 0-999.9 km (miles)
- Reset automatically after 0-999.9 km (miles)
- Trip meter unit: 0.1 km (miles)
- Tire circumference setting unit: 1 mm
- Sensor points: 6
- Tachometer display range: 0-10.000 rpm
- Shift light adjustment range: 8.000-10.000 rpm
- Adjustable per: 100 rpm
- Warning (shift light) Light on (F-OFF)
- Flash (F-ON)
- RPM signal setting
- Setting range: 0.5, 1-24
- RPM pulse range: Hi-Act (positive), Lo-Act (negative)
- Indicator lights: Turn signal (green), Warning light (red), Neutral (green), High beam (blue), Shift light (red)
- Fuel gauge display range: 6 levels (20% each)
- Fuel gauge settings: 100 Ohm, 250 Ohm, 510 Ohm, 1200 Ohm, SW, User
- Clock 24h
- Backlight brightness: 1-5 levels (dark to light), each level is 20%
- Temperature range: -10 - 60 ° C (14 140 ° F)
- Standard JIS D 0203 S2
- Includes passive speed sensor: BF019005
- Dimensions approximately: 68.3 bezel diameter x 64.6 built-in diameter x 54 mm built-in depth
- Weight 127 gram
- ABE/KBA approved
- Complete with installation hardware kit, brackets and instructions
Note: Check your local MCS dealer or the MCS sales department for exact type of approval and validity on bike model and years on the test report.

Specifications

Fitment

Universal

Part numbers
