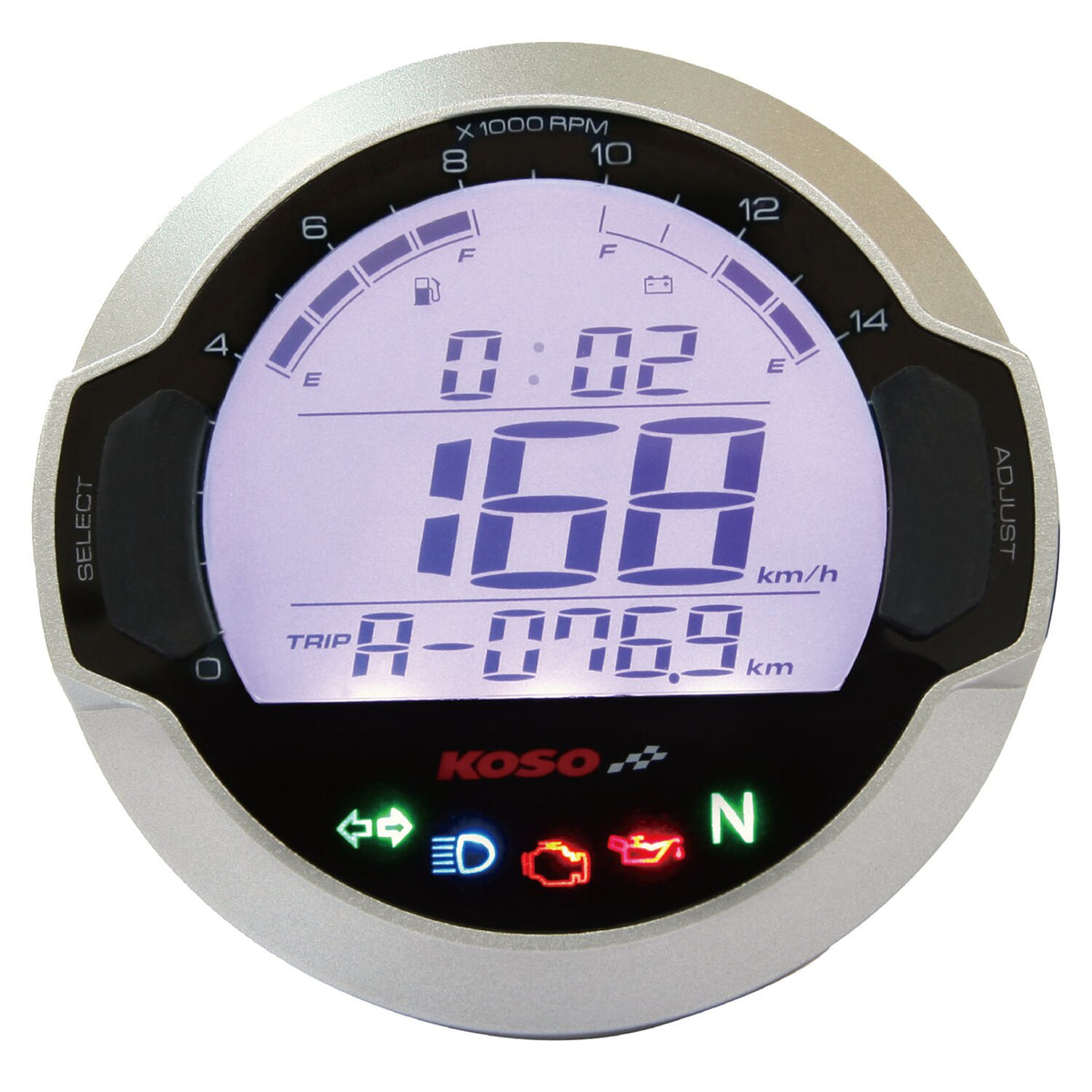

KOSO, D64 DL-03SR multifunctional speedo / tachometer

Description

Silver housing, blue backlight. 12V DC. Comes with approval. Comes with a speedometer and tachometer and many other functions. Below the display there are 5 signal lights (indicator, high beam, EOBD (on board Diagnostics), oil and neutral. These are only visible when the corresponding signals are triggered. Instead of the rev counter, you can also display a volt and fuel gauge. If you are in RPM mode and the fuel level is critical, this is indicated by a flashing symbol. If your fuel gauge does not have one of the adjustable basic resistances of 100/250/510 or 1200 ohms, you can also teach the fuel gauge in learning mode to present the correct information.

- Speedometer: Display range: 0-360 km/h (0-223 mph)

- Tachometer: Display range: 0 - 15,000 rpm

- Units: 1 segment = 1000 rpm

- Total odometer: display range: 0-99999.9km (mile)

- Reset automatically after 99999.9 km (mile)

- Trip A/B: Display range: 0 - 999.9 km (mile)

- Wheel circumference: adjustment range: 300- 2500mm

- Units 1mm / pulses 1-60

- Fuel gauge: 4 bars

- Clock: 24h

- Digital voltmeter: display range: DC5 -DC28V

- Indicator lights for: Turn signals, neutral, oil, high beam, EOBD (engine light)

- Dimensions: Diameter 70 mm x depth 35 mm x installation diameter 50 mm

- Complete with installation hardware kit, brackets and instructions

Specifications

Fitment

Universal

Part numbers
