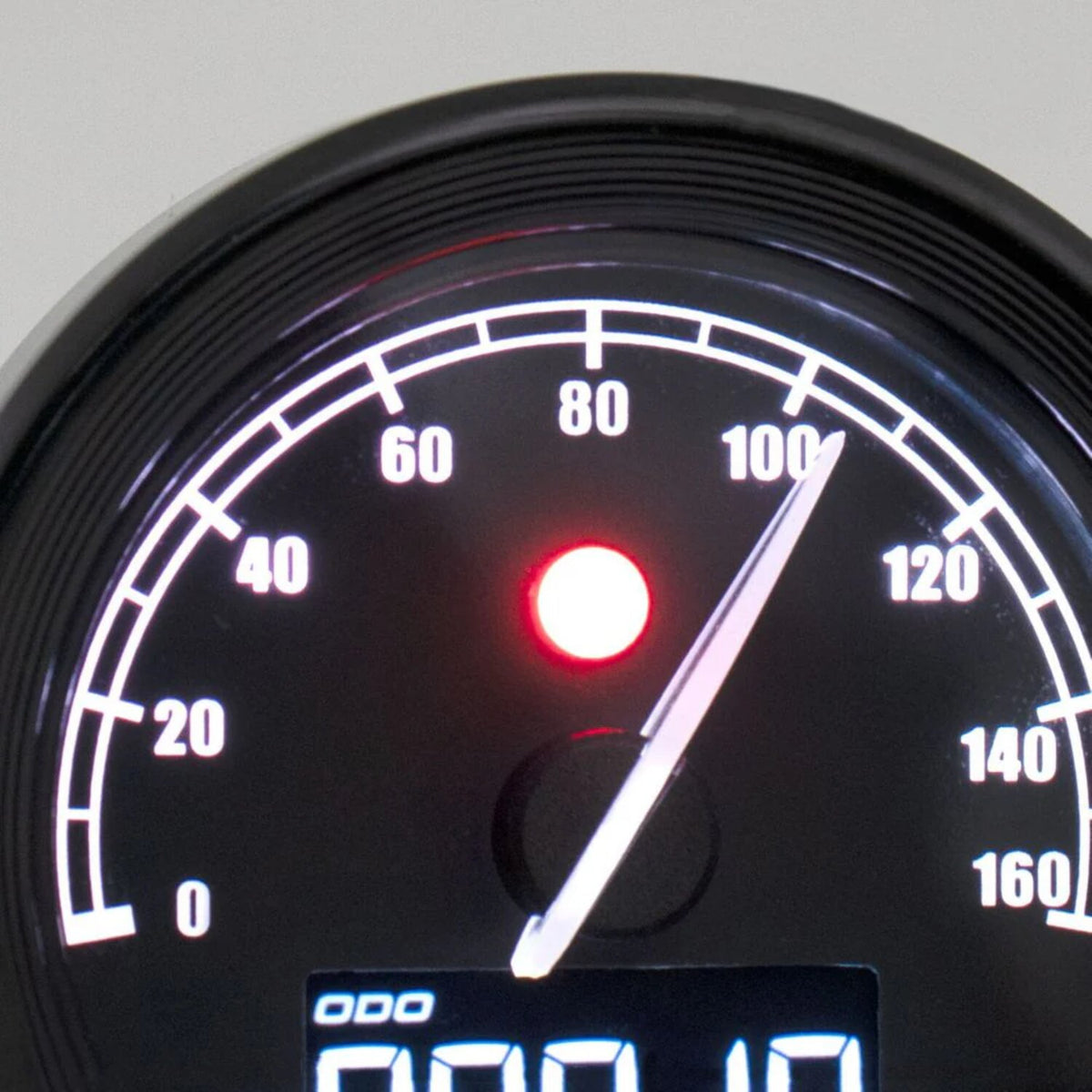

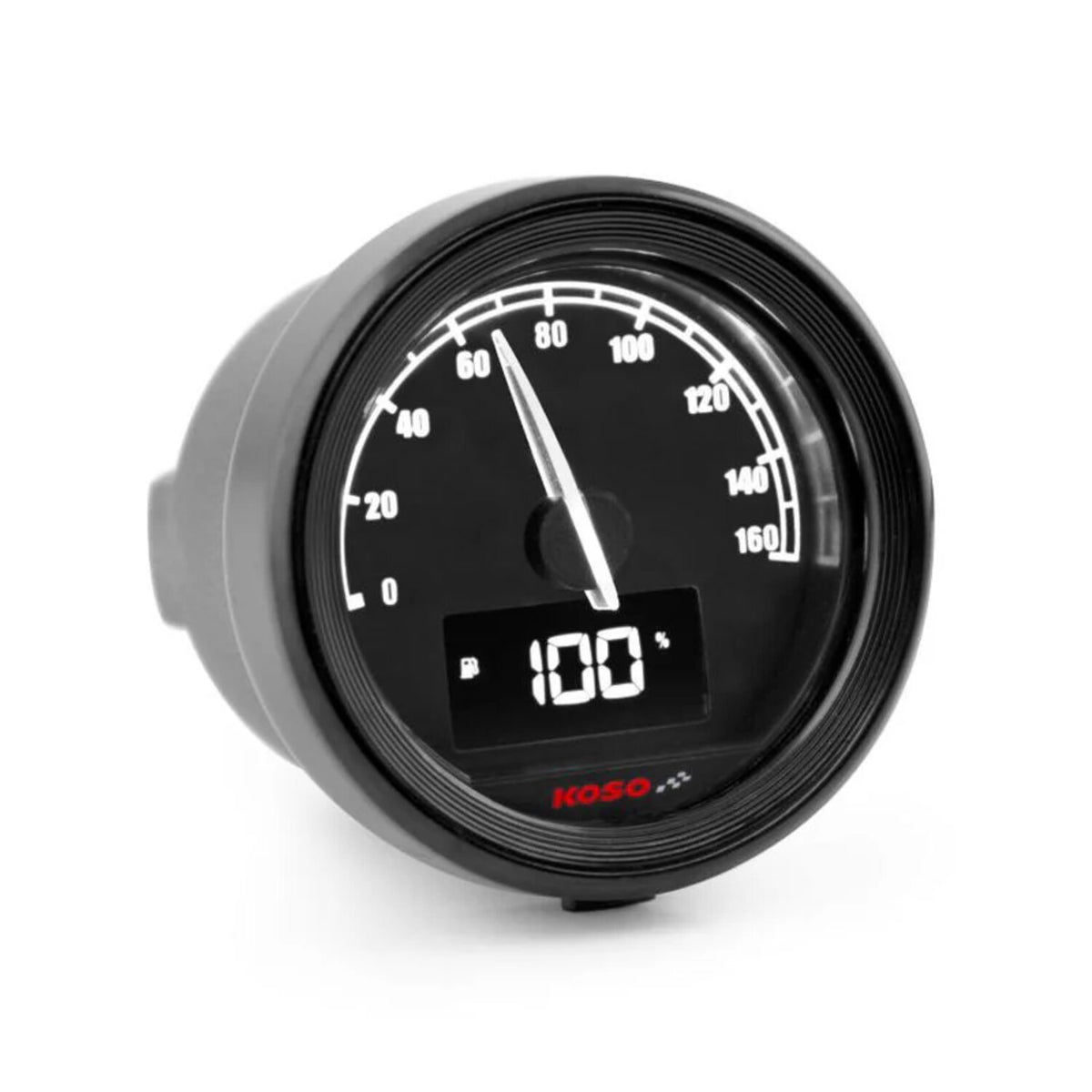

KOSO, D48 TNT-05 HD speedometer

Description

Black face with black bezel. Small 48mm dimeter ABE approved 'multimeter' instrument with more features than you would think at first glance. With 8 color display setting. Features include:
- Speedometer: 0 to 160 km/h / mph. Display per: 20 km/h / mph (large grid), 10 km/h / mph (small grid)
- Over speed warning light: 30 to 160 km/h (19 to 100 mph), per 1 km/h (mph)
- Max. speed record: 0 to 160 km/h / mph. per 1 km/h / mph. Manually resets to zero
- Odometer setting range: 0 to 99,999 km (miles), per 1km / mile
- Trip odometer A/B display range: 0.0 to 9,999.9 km / mile. Manually resets to zero. Per 0.1km / mile
- Tire circumference adjustment range: 300~2,500 mm. Per 1mm
- Sensitive point setting range: 1 to 20 P. Per 1 P
- Fuel gauge display range: 10 levels (100%), per 1 level (10%)
- Fuel gauge setting range: 100 Ω, 250 Ω, 270 Ω, 390 Ω. Resistance (Ω) 510 Ω, 1200 Ω, Sw, Custom (learning mode), OFF
- Low fuel level warning setting range: 0~30%, when the setting value. Warning light will light up. Per 10%
- Clock setting range: 24H / 12H
- Volt meter: DC 8.0 to 18.0 V, per 0.1 V
- Low voltage warning light: DC 8.0~13.0 V. Per 0.1V
- Composite warning light setting range: low fuel (LFUEL), low voltage (VOLT)
- Overheating (temperature): Lit (L), Slow flashing (S), Fast flashing (F), OUT OF
- Backlight brightness 5 levels: 1/5 (darkest) to 5/5 (brightest). Per 20%

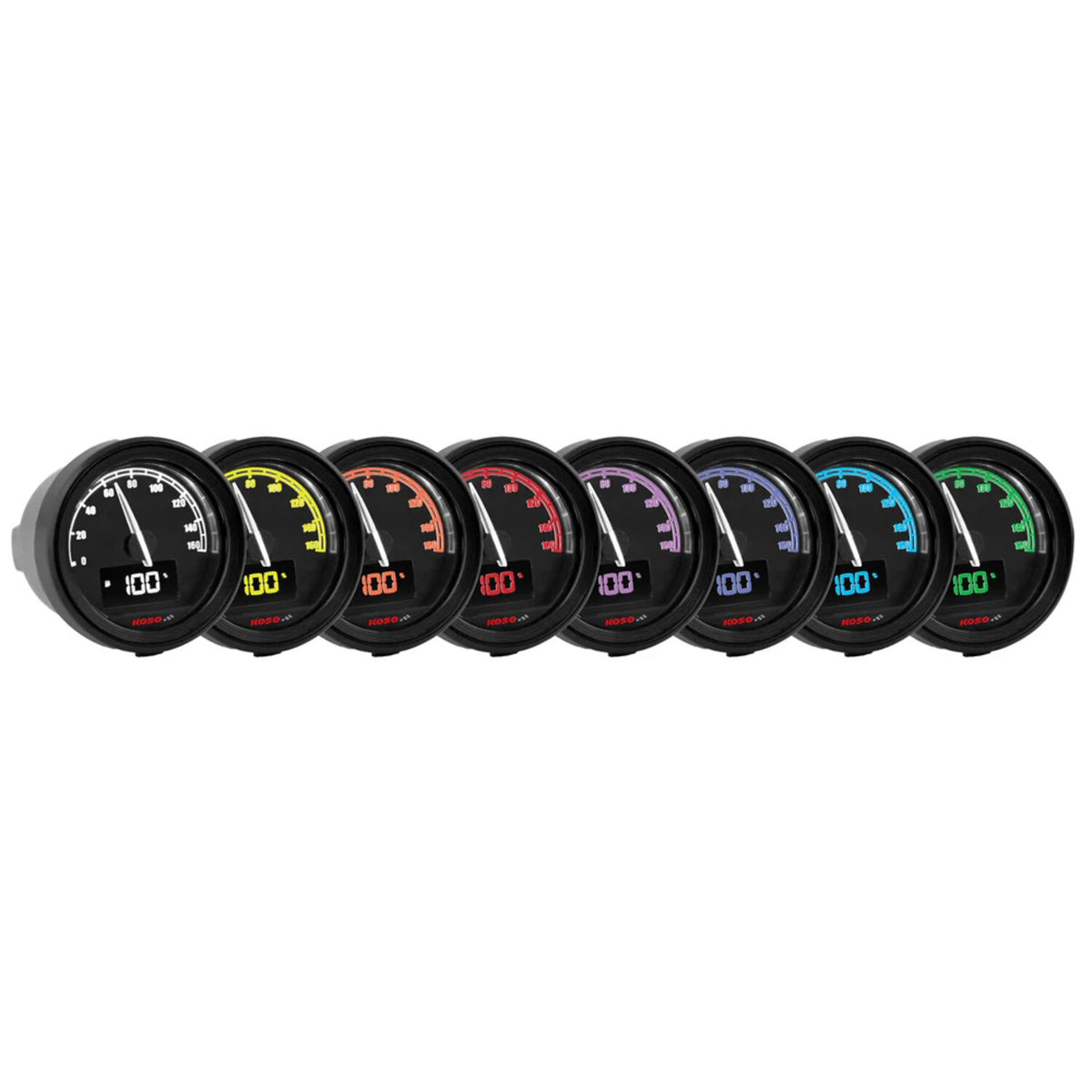

- Backlight color: White, red, orange, yellow, green, blue, light blue, violet loop switch
- Operating voltage DC 12V
- Operating temperature -10~ +60 °C
- Storage temperature -20~ +80 °C
- Standard JIS D 0203 specified instrument

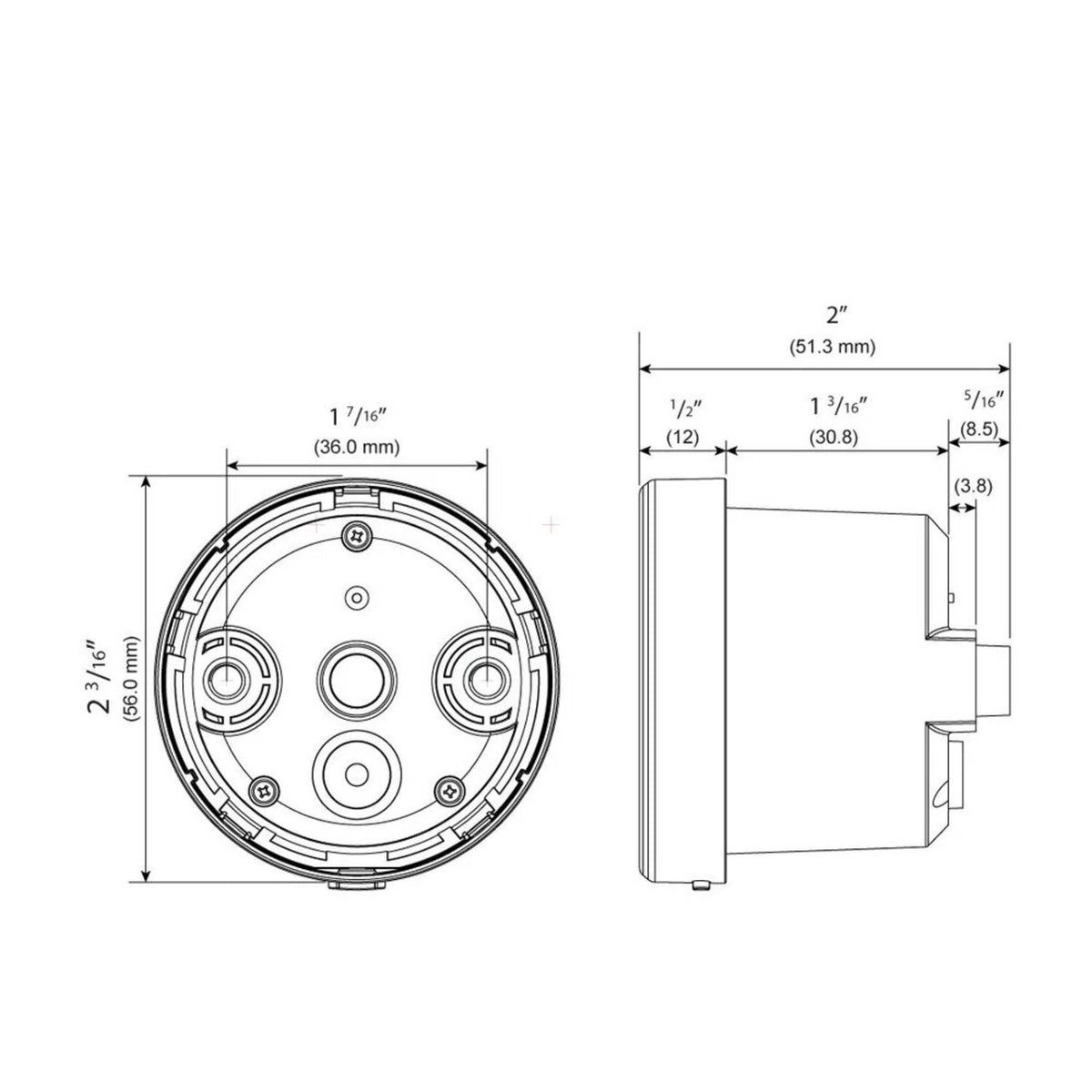

- Overall diameter 48 mm
- Weight: 60 gram
Note: Design and specifications are subject to change without notice.

Specifications

Fitment

Universal

Part numbers
