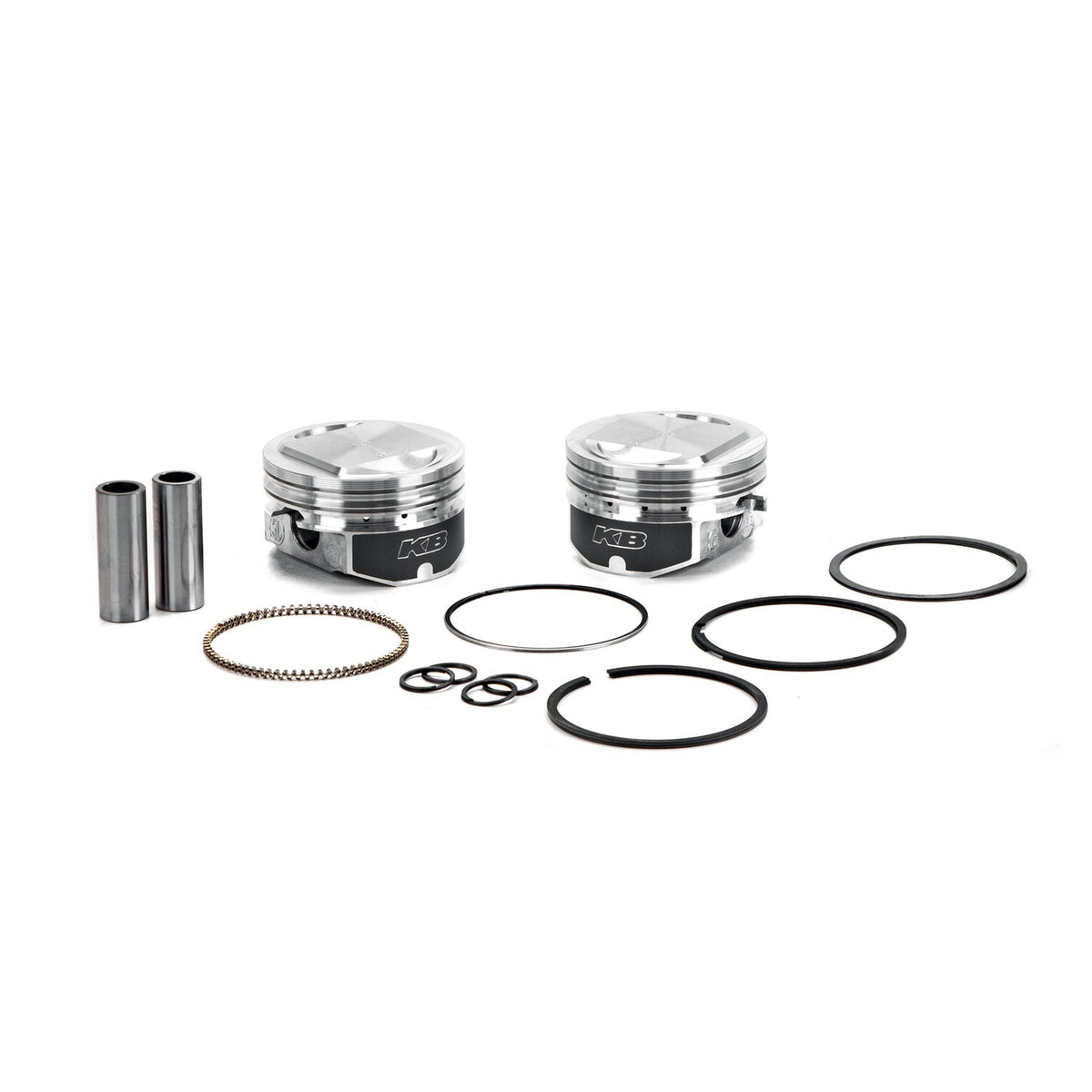

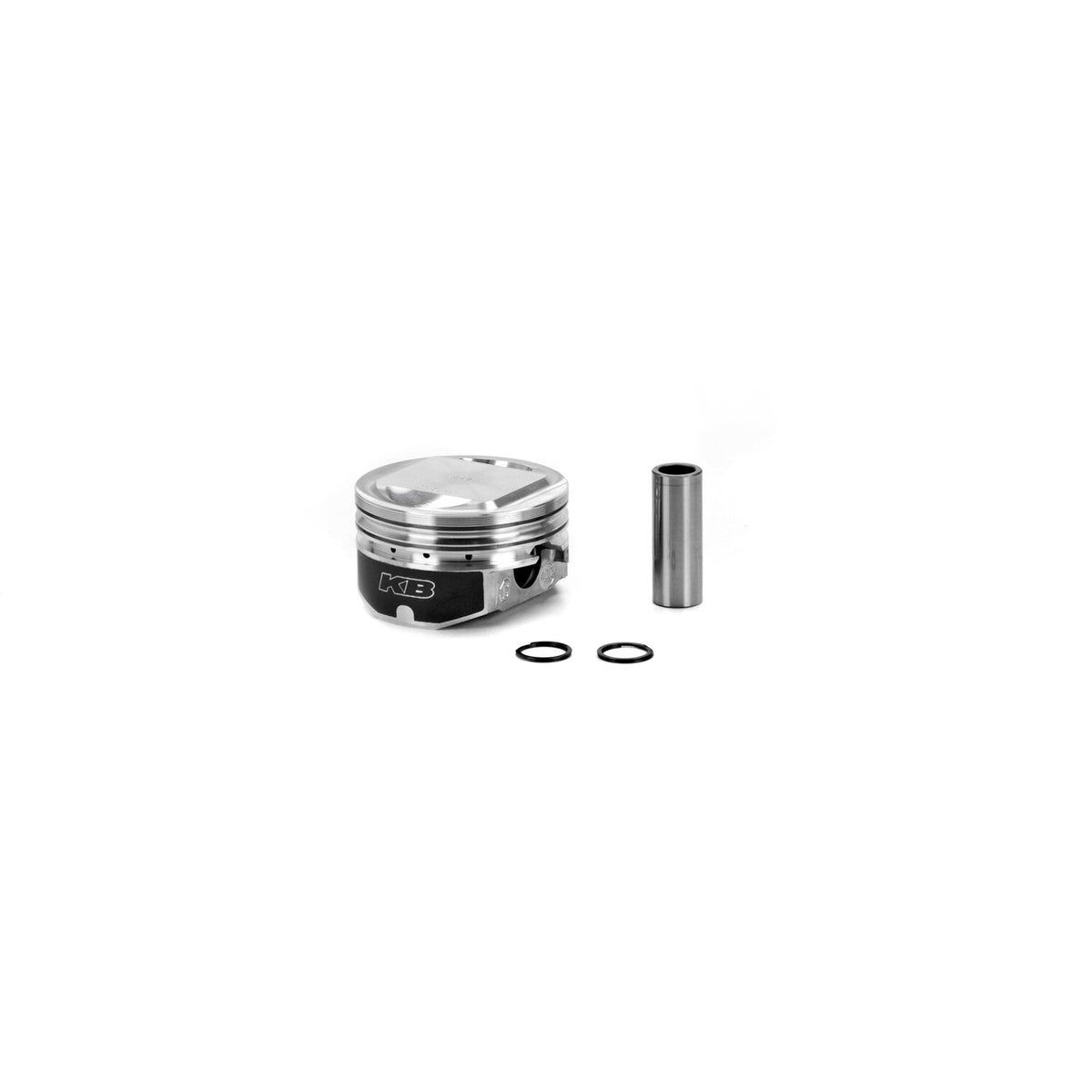

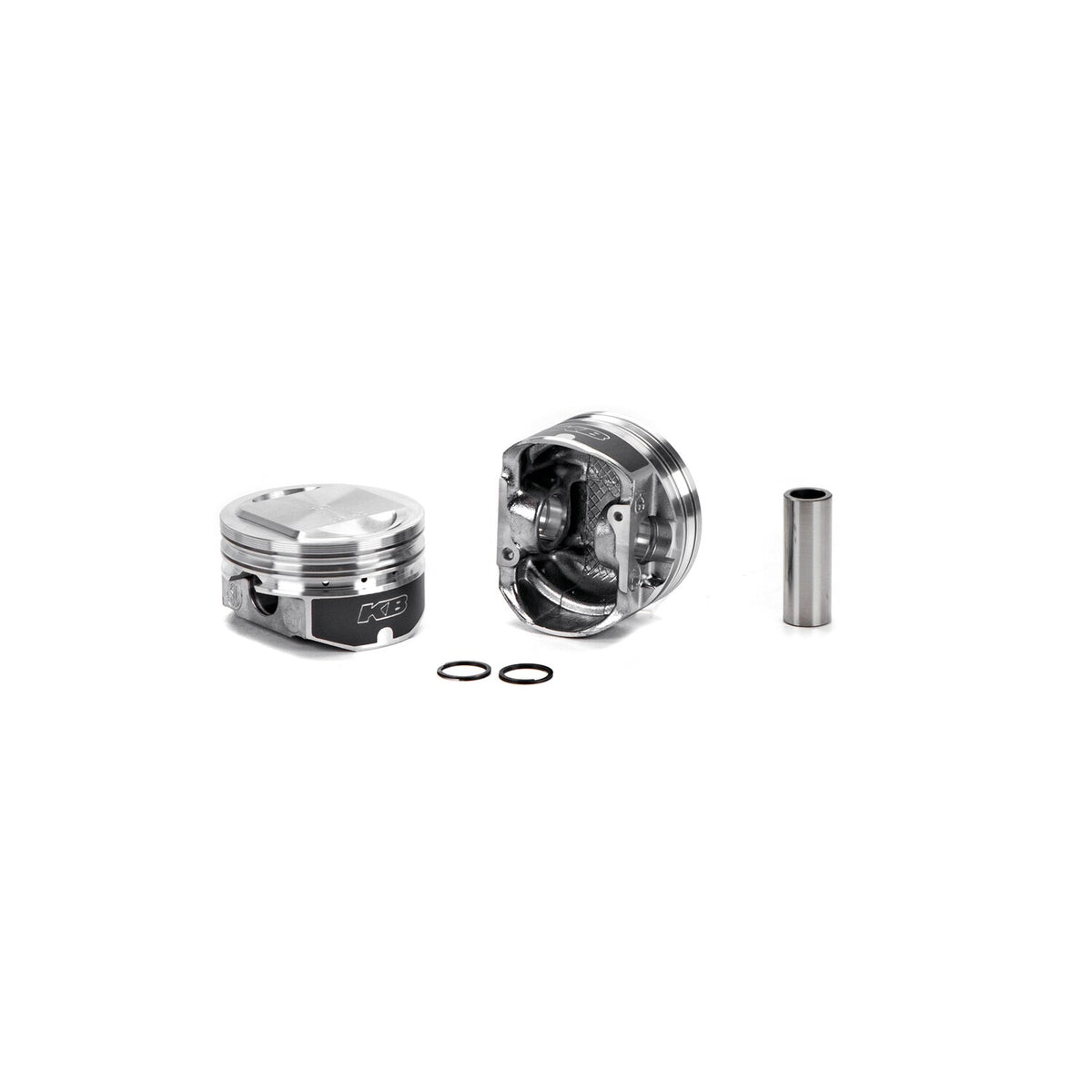

KB Performance, 88" to 95" big bore piston set. +.020"
Choose options
The details that matter
Details
Description
88" to 95" big bore conversion.
Used with stock heads and cylinders.
By boring the stock cylinders from 3-3/4" to 3-7/8" big bore size engine capacity will increase from 88" to 95".
High compression (pop-up).
10.5:1 CR.
Piston weight 437gr.
Piston pin weight 97gr. / Head type: Dome.
Dome -11.2cc / Compression height 1.270".
Bore 3.875" / Stroke 4.000".
Rod length 7.667" / Cylinder length 4.938".
Comes with T6 heat treated 390 Hypereutectic cast pistons with 16% silicone levels which enables running a very tight clearance for longevity and hardly any piston noise.
Note: Top compression ring will need additional clearance. See instructions.
Specifications
| Unit | SET |
|---|
Fitment
99-06 Twin Cam A/B (NU)
Part numbers
| Supplier SKU | 944744 |
|---|---|
| Manufacturer part | KB411020 |
Specifications
| Brand | KB Performance Piston |
|---|---|
| Category | Pistons and rings kits |
Fitment
