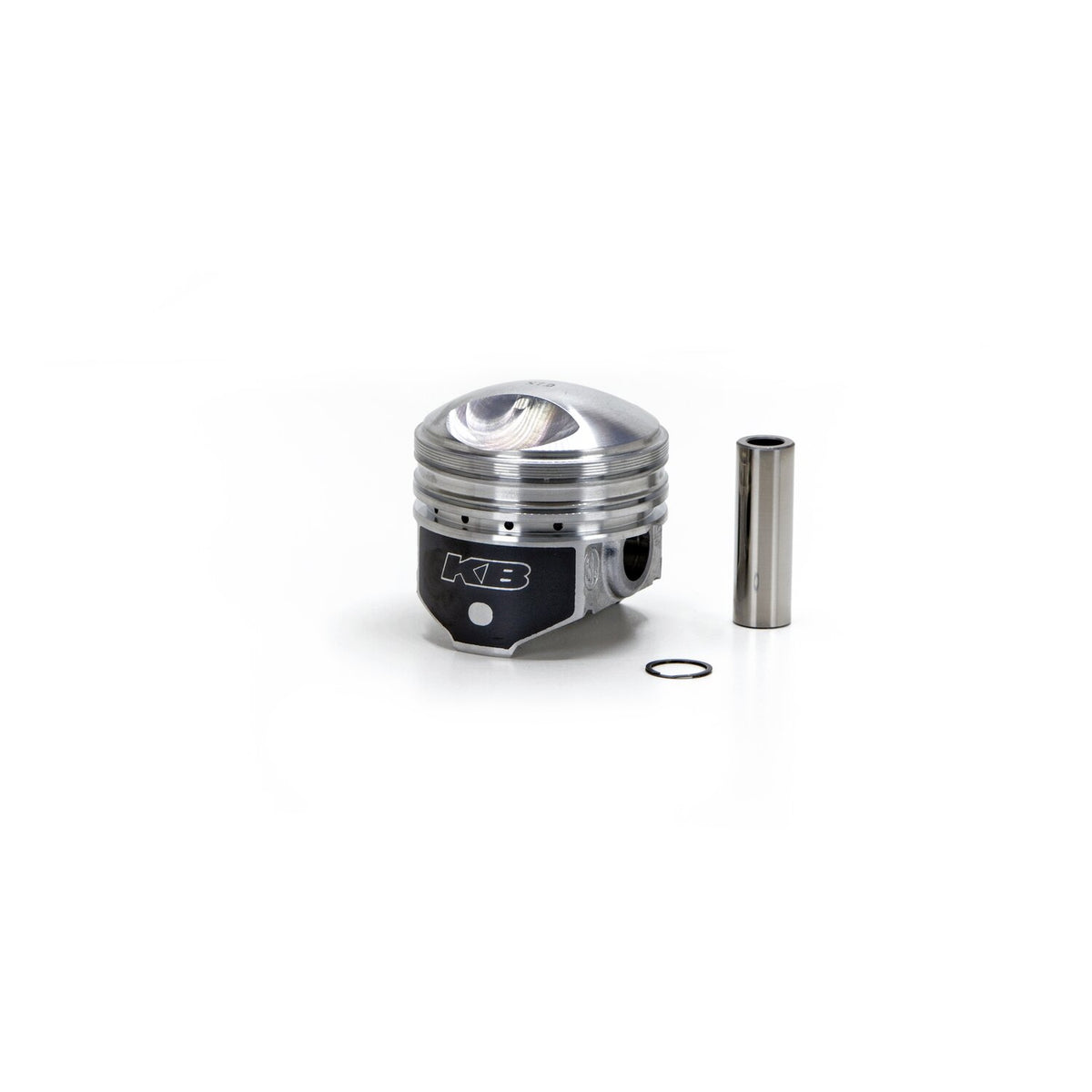

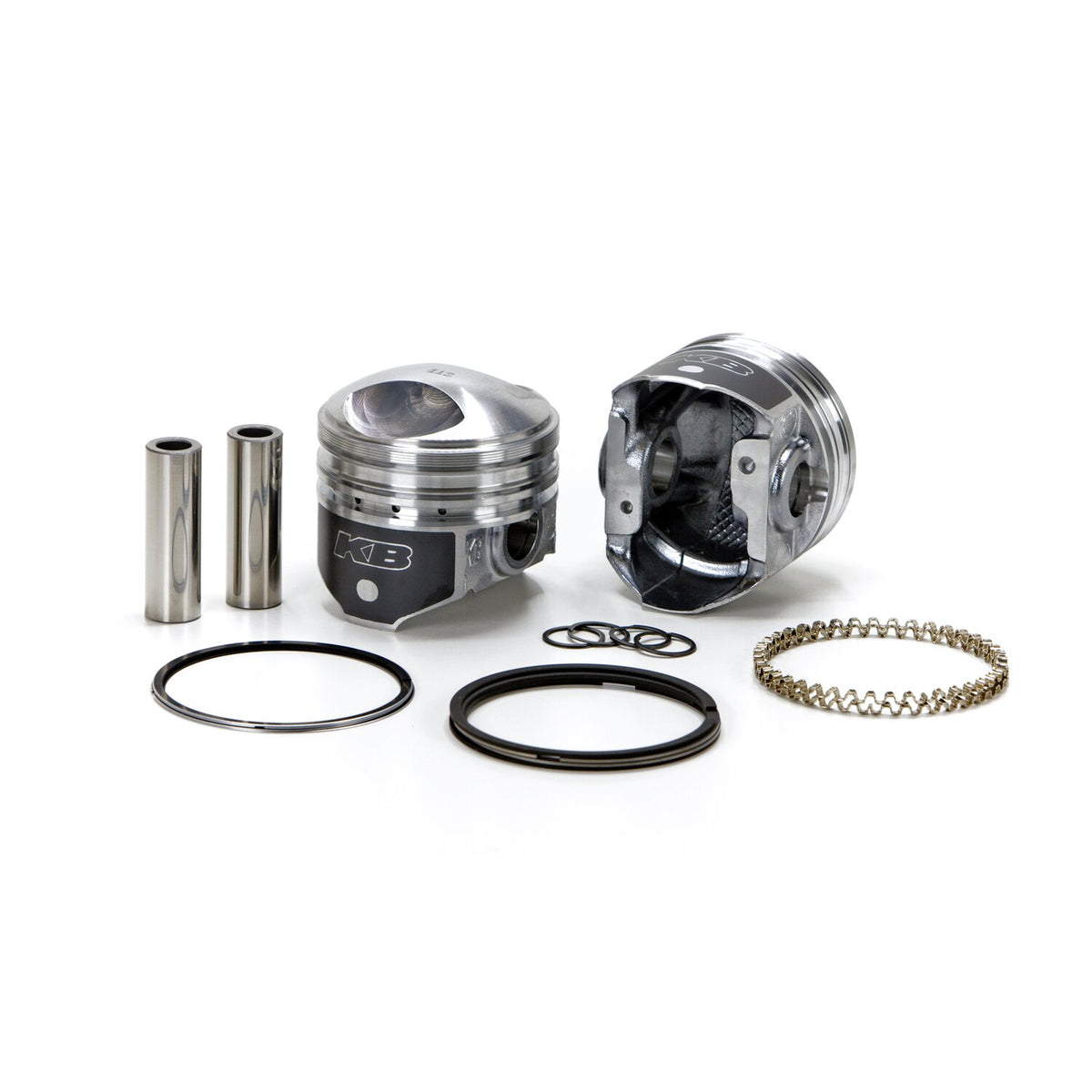

KB Performance, 1200cc B.T. piston kit. STD
Choose options
The details that matter
Details
Description
Compatible with stock cylinders and heads, gives stock compression ratio. 8.5:1 CR. Piston weight 370gr. Piston pin weight 97gr.
Head type: Dome 0.656" / Dome -57cc.
Compression height 1.450".
Bore 3.4375" / Stroke 3.969" (3-31/32").
Rod length 7.440" / Cyl. length 5.330".
Comes with T6 heat treated 390 Hypereutectic cast pistons with 16% silicone levels which enables running a very tight clearance for longevity and hardly any piston noise.
Note: Top compression ring will need additional clearance. See instructions.
Specifications
| Unit | SET |
|---|
Fitment
41-78 74"/1200cc Knuckle, Pan, Shovel (NU)
Part numbers
| Supplier SKU | 944631 |
|---|---|
| Manufacturer part | KB263STD |
Specifications
| Brand | KB Performance Piston |
|---|---|
| Category | Pistons and rings kits |
Fitment
Part numbers
