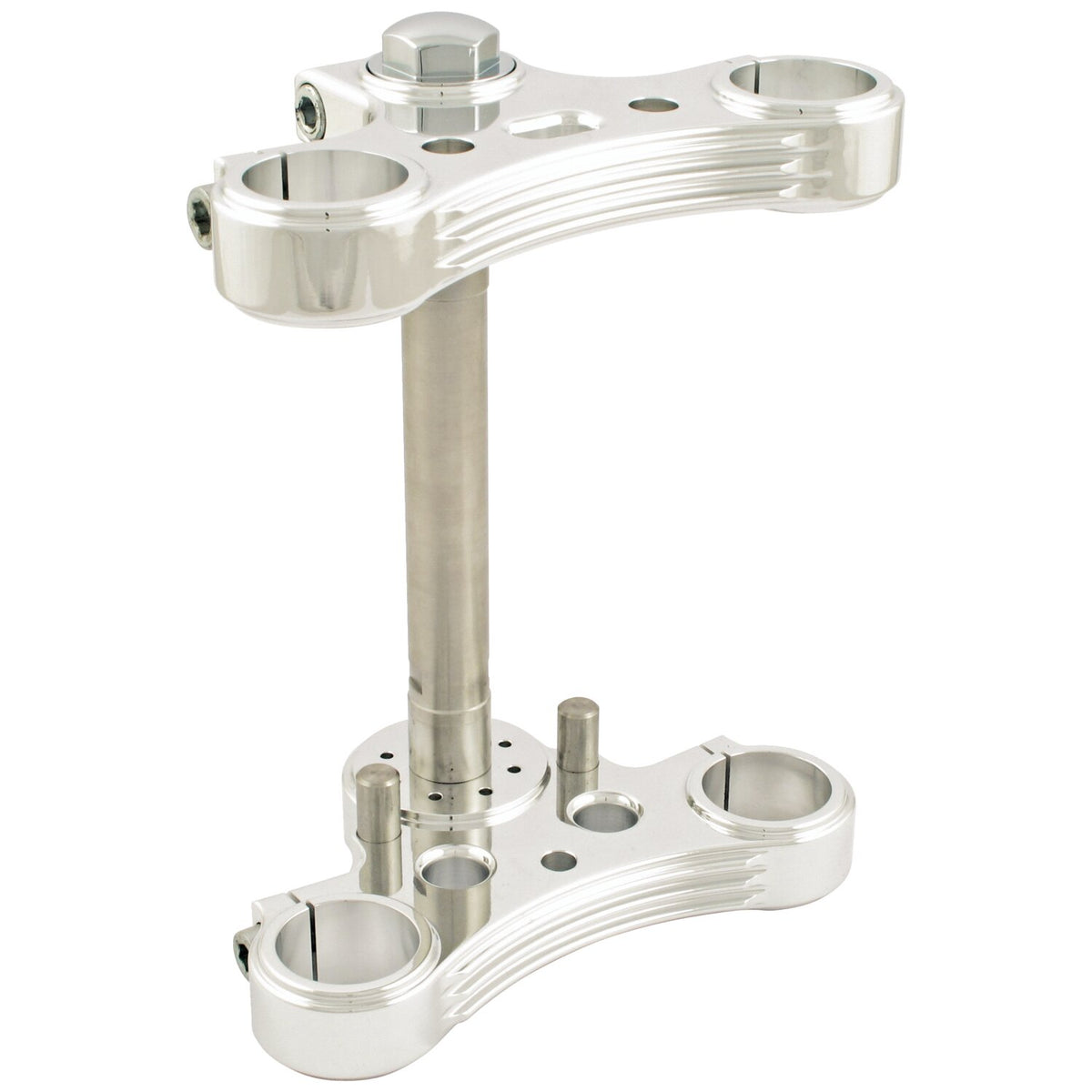

K-Tech extra narrow 39mm triple trees. Polished

Description

With hole for risers.

Kustom-Tech's billet CNC machined triple trees, for 39mm fork tubes, are super narrow. With just 146mm (5 3/4") center to center fork tubes they are 1 1/4" (31.75mm) narrower than stock Narrow Glide triple trees.

Riser holes are 2 1/2" center to center, 1" closer together than stock. Comes complete with 1" diameter steering stem, bearings and external forks tops.

Note 1: Make sure you will be able to mount the front wheel & brake set-up of your choice.

Note 2: Trees come with external fork stops. Internal forks tops can be ordered separately, if required

Note 3: Ribbed fork tube caps can be ordered separately and used with the 'No Hole' triple trees. They come with M34 x 1.5 thread. Handlebars can be welded to the fork tube caps and give an ultra clean look.

Specifications

Fitment

For models with 39mm fork tubes and regular risers.

Part numbers
