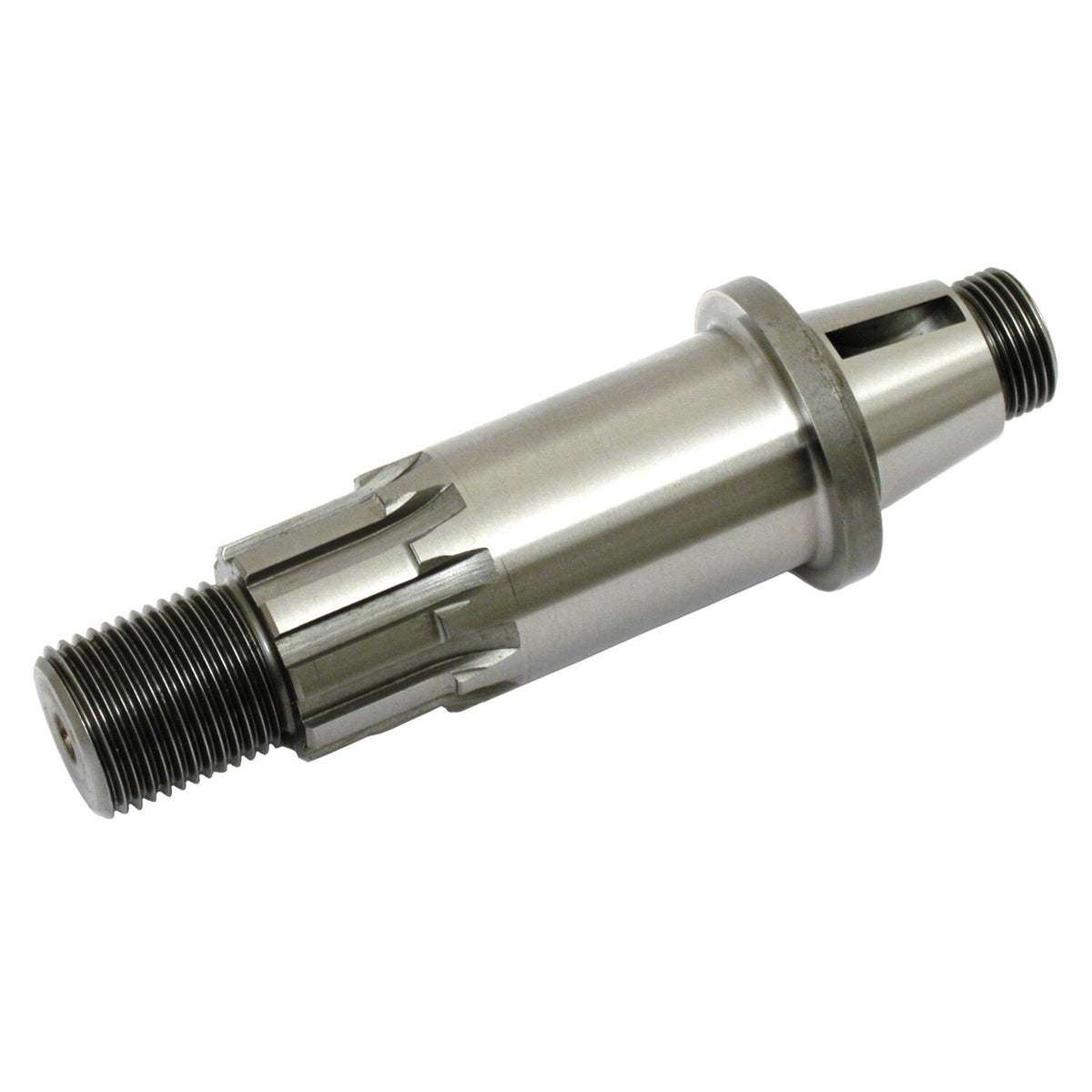

JIMS, sprocket shaft. 65-69 B.T.
Choose options
The details that matter
Details
Description
Sprocket shaft has keyway, use 23985-56 key (MCS 517960). Taper is 8-1/2°. Shaft is 3.75" long from bearing shoulder to end of smalll thread. Use 24023-36 JIMS nut (MCS 978258) on flywheel side and use 24003-55 nut (MCS 518000) on sprocket side.
JIMS shafts are precision machined in Camarillo, California from a special order steel. Each and every part is thoroughly inspected and after heat treating all threads go through a special process to make them withstand greater torque stress. All shafts are ground to a 16 micron finish or better, unless specified otherwise. All ground diameters are concentric to well within .0003", making truing and rebuilding quicker and with less effort.
Specifications
| Unit | EA |
|---|
Fitment
65-69 Big Twin (NU)
Part numbers
| Supplier SKU | 509710 |
|---|---|
| Manufacturer part | 24001-65 |
Specifications
| Brand | Jims |
|---|---|
| Category | Sprocket shafts |
Fitment
