JIMS, pinion shaft 54-57 B.T.
Estimated supplier restock: 13 November 2026
Supplier estimate, subject to change. Delivery time is additional once stock arrives.
Choose options

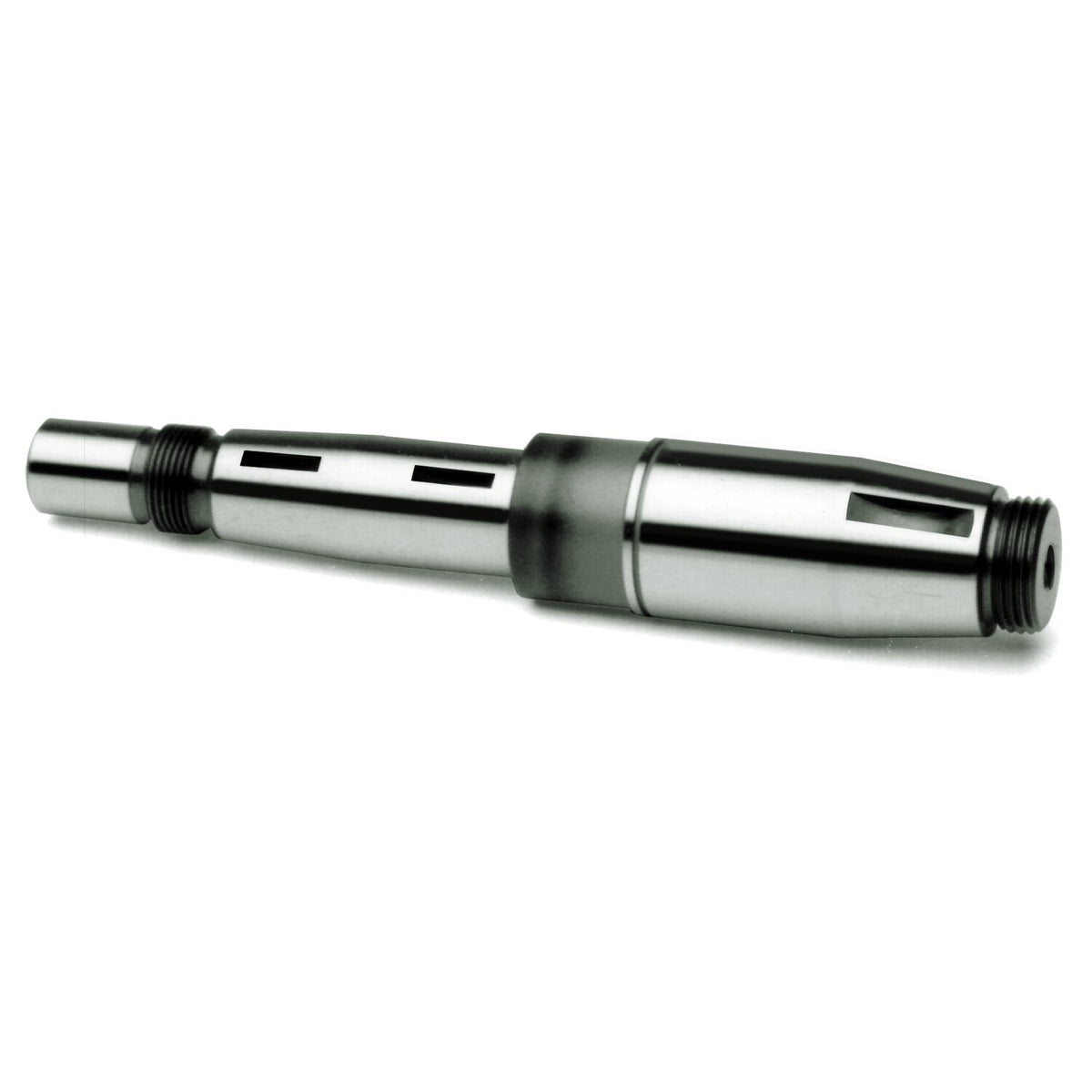

JIMS, pinion shaft 54-57 B.T.
Sale price£178.18
The details that matter
Details
Description
Use 23985-12 key (MCS 517945). Use 24023-36 JIMS nut (MCS 978258) for flywheel side and 24023-54 JIMS nut (MCS 978263) for pinion gear side. Comes with oil end plug. Side oiling. Repl. 24006-54A.
Tech tip: 58-81 B. T. pinion shaft assemblies also fit 54-57 B.T. when the stock pressed-in bearing race is removed and the cast-in bearing retainer is bored out to accept the larger 58-81 press-in bearing race (OEM 24599-58B / MCS 518110).
Specifications
| Unit | EA |
|---|
Fitment
54-57 Big Twin (NU)
Part numbers
| Supplier SKU | 510534 |
|---|---|
| Manufacturer part | 24006-54A |
Specifications
| Brand | Jims |
|---|---|
| Category | Pinion shafts |
Fitment
Part numbers
