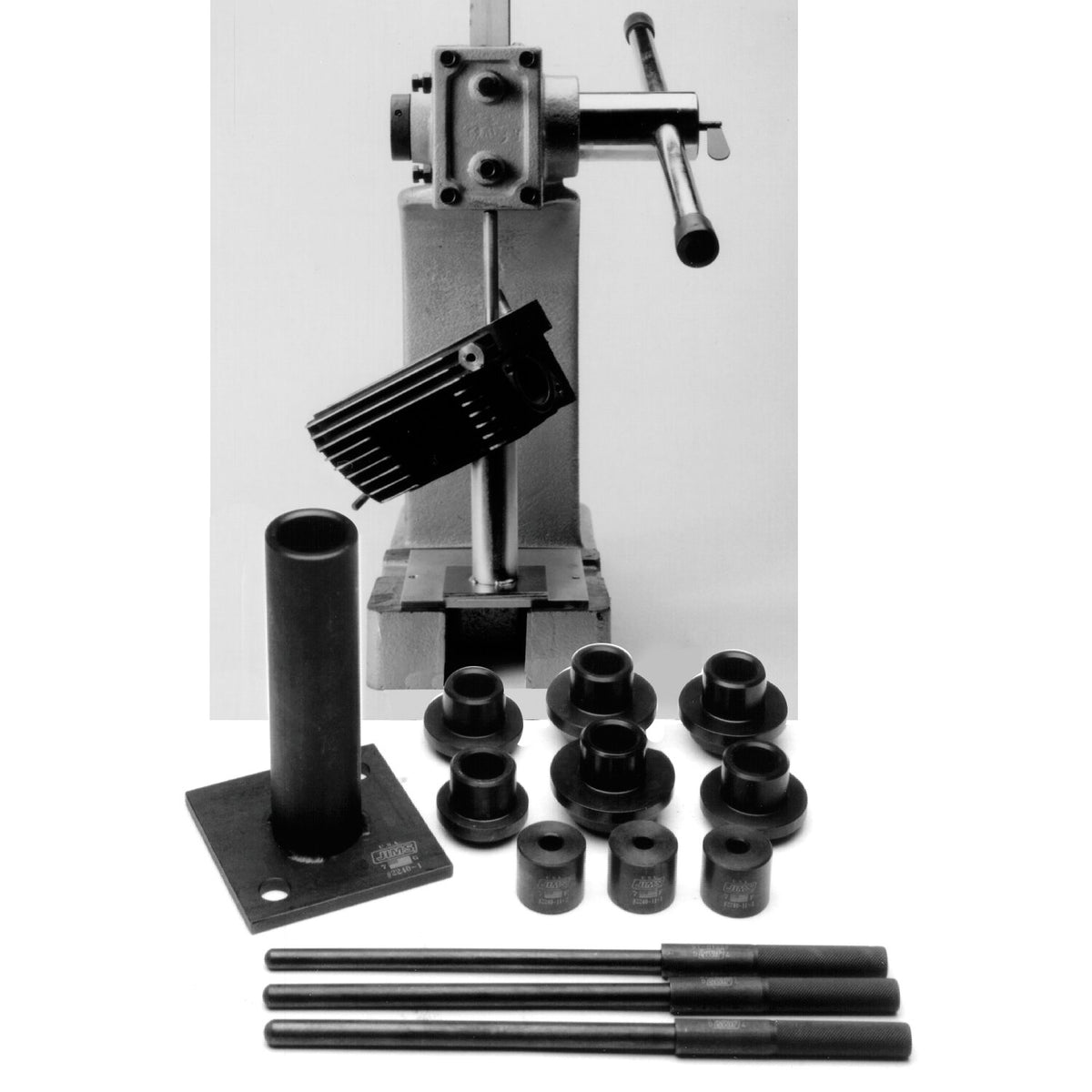

JIMS, Head Holder/Guide install & remove tool

Description

Used to hold the cylinder head (OEM & all aftermarket heads). a special valve guide alignment shaft is designed into this tool and will hold the correct angle for best possible guide installations, in line with the valve seats, for less valve seat grinding afterwards. adapters are supported by a support stand, making the pressing in & out of valve guides easy.

includes:

_ 1 base assembly 2240-I

_ 1 adapter, int, 1986-03 883 XL Sportster, all Twin Cam exh 2240-2

_ 1 adapter, int, Big Twin, EVO, 1986 XL1100 exh. Shovelhead and 1986-03 883 EVO XL Sportster 2240-3

_ 1 adapter, int, Shovelhead / exh big twin, EVO, 1986 1100, XL Sportster, most all Twin Cam 2240-4

_ 1 adapter, int / exh, Ironhead XL Sportster 2240-5

_ 1 adapter, int, 1987-1100 / 1988-03 1200 XL Sportster, EVO 2240-6

_ 1 adapter, exh, 1987-1100 / 1988-03 1200 XL Sportster, EVO 2240-7

_ 1 pilot .306 diameter 2240-16

_ 1 pilot .371 diameter 2240-17

_ 1 pilot .338 diameter 2240-18

_ 1 pilot 7mm diameter 2240-19

_ 1 insert, .310 diameter 2240-11-1

_ 1 insert, .375 diameter 2240-11-2

_ 1 insert, .342 diameter 2240-11-3

_ 1 insert, 7mm diameter 2240-11-4

_ 1 instructions 2240-is

Specifications

Fitment

66-84 Shovel; 84-99 Evo Big Twin; 99-17 Twin Cam; 57-22 XL Sportster. (Excl. M8 models)
