JIMS, cylinder torque plates
Estimated supplier restock: 15 November 2026
Supplier estimate, subject to change. Delivery time is additional once stock arrives.
Choose options

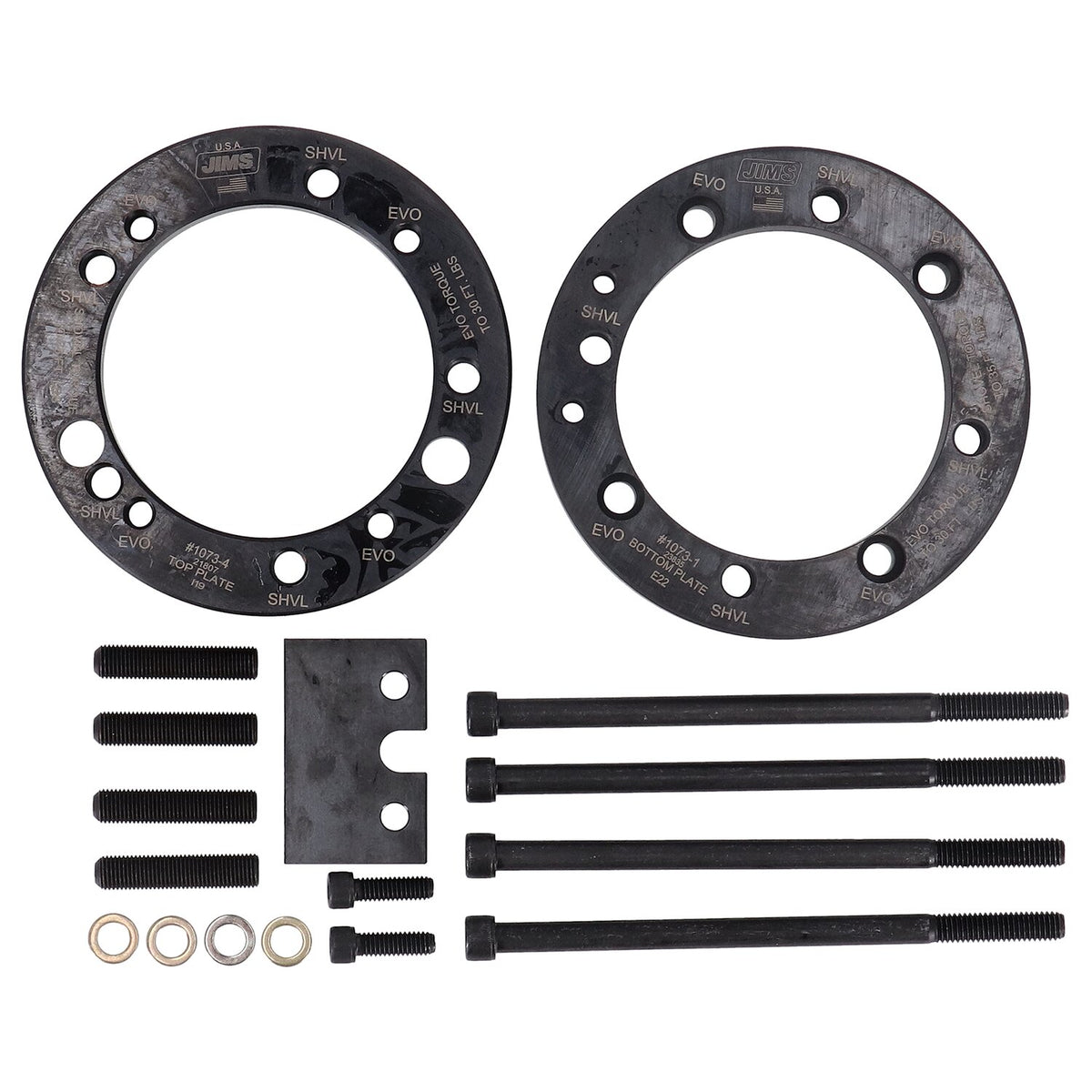

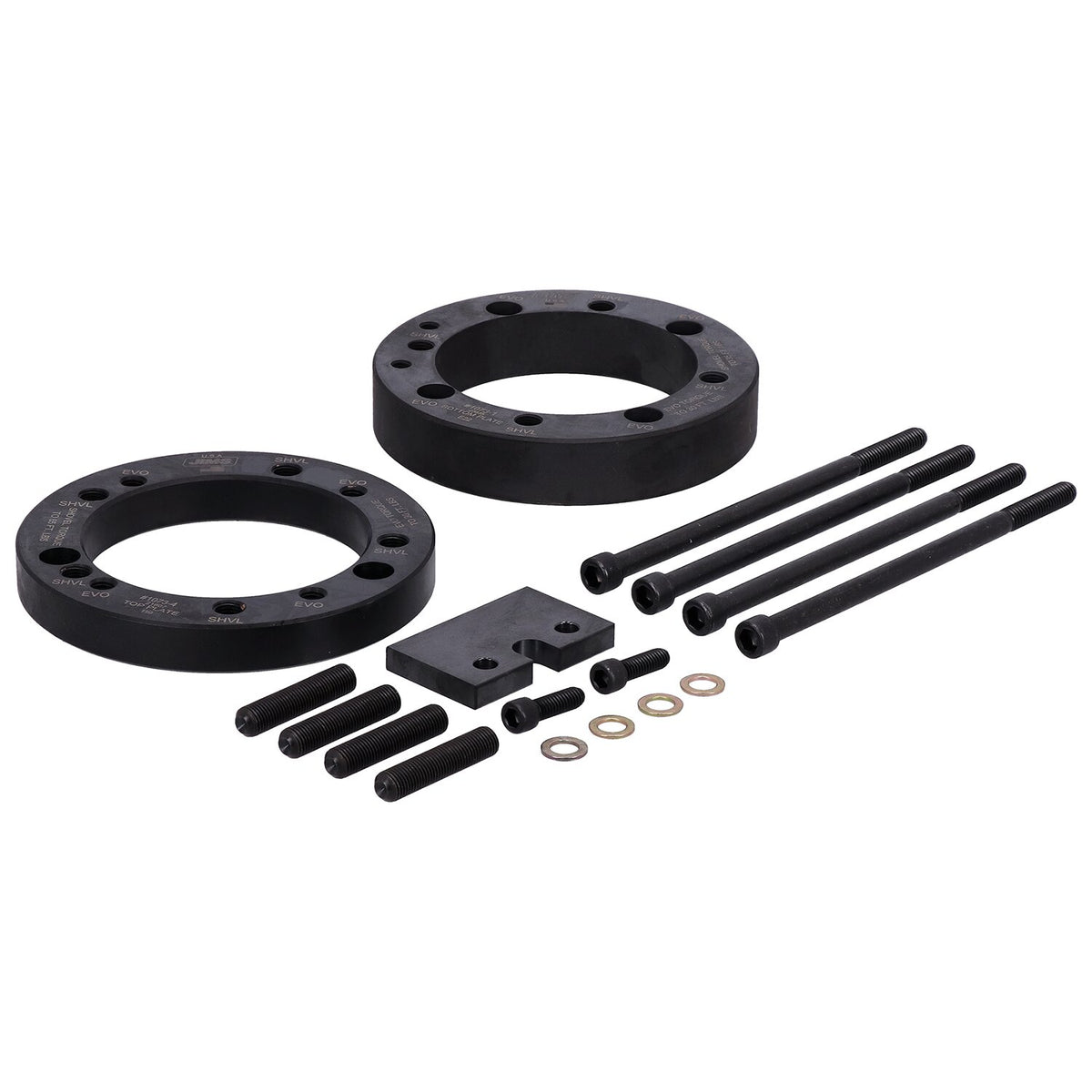

JIMS, cylinder torque plates
Sale price£745.88
The details that matter
Details
Description
Used with 3.4375" to 4" bore with OEM base pattern. Plates simulate stress conditions when boring and honing, which prevents distortion of cylinders walls once cylinders are installed. Plates are lasered with the correct torque sequence.
Note: Order MCS 519231 bolt kit only separately for XL Sportster and XR Sportster models.
Specifications
| Unit | EA |
|---|
Fitment
66-99 (NU) Big Twin; 86-22 XL Sportster; 08-12 (NU) XR1200
Part numbers
| Supplier SKU | 519229 |
|---|---|
| Manufacturer part | 1073 |
Specifications
| Brand | Jims |
|---|---|
| Category | Tools engine |
