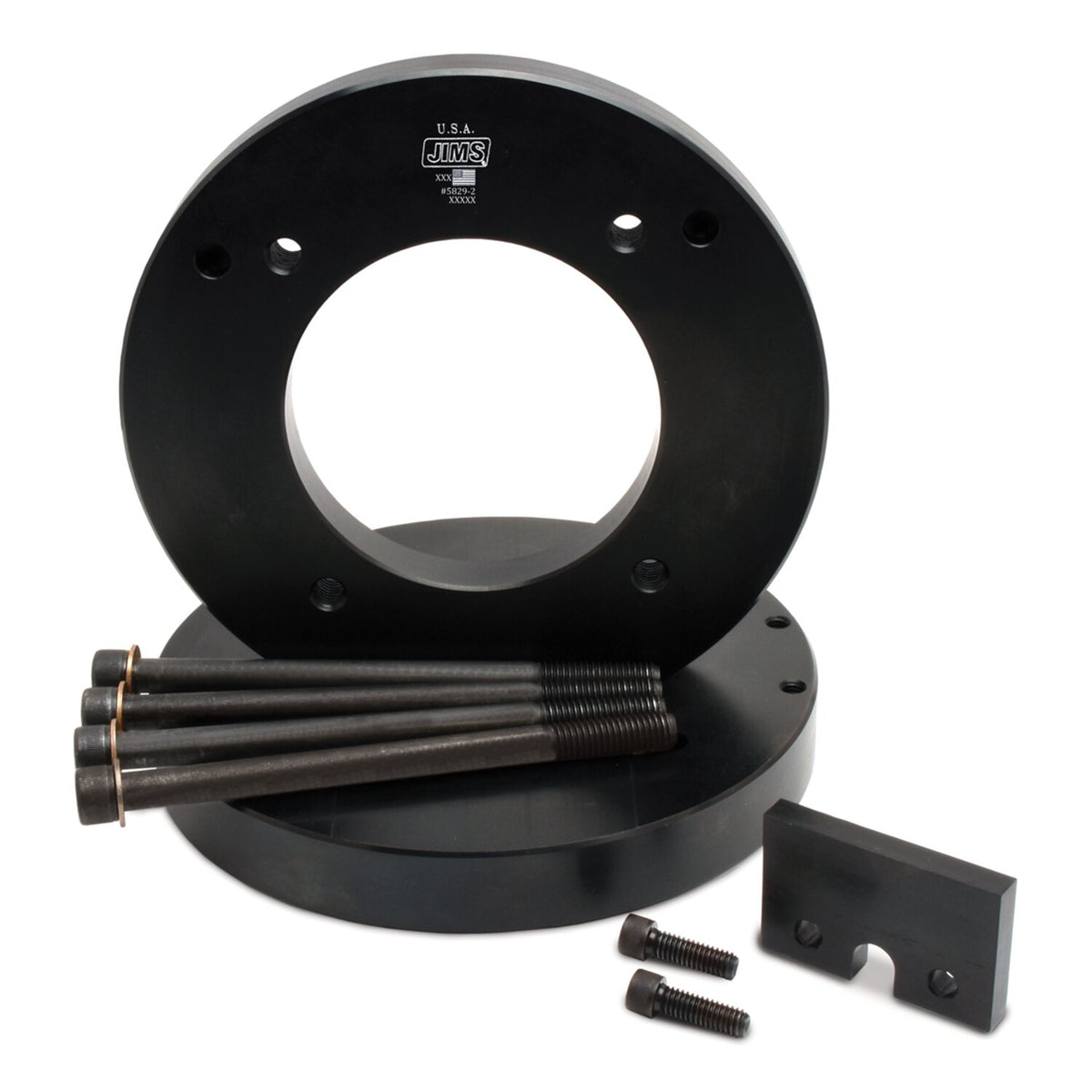

JIMS, cylinder torque plate kit
Choose options
The details that matter
Details
Description
Compatible with stock 107" (3.937") to 114" (4.016") and 117"/121" (4.075") cylinder bores with OEM bolt pattern. Used to measure cylinder measurements accurately torque plates are essential. These plates simulate stress conditions when boring and honing, which prevents distortion of cylinders walls once cylinders are back to the installed condition. Plates are lasered with the correct torque sequence.
Note: 117" & 121" engines have the same cylinder bore, just the 4.5" vs 4-5/8" stroke is different.
Specifications
| Unit | KIT |
|---|
Fitment
18-26 Softail; 17-26 Touring; 17-26 Trikes. (With stock 107", 114", 117" and 121" engines)
Part numbers
| Supplier SKU | 569212 |
|---|---|
| Manufacturer part | 5829 |
Specifications
| Brand | Jims |
|---|---|
| Category | Motor parts |
Fitment
Part numbers
