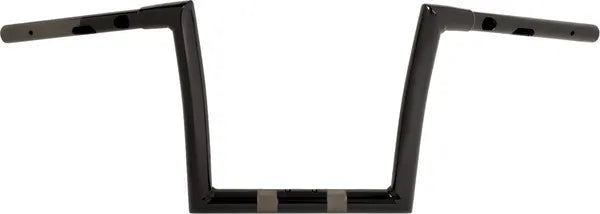

Todd'S Cycle 1-1/4" Touring Handlebar — TD-125-10B
Choose options
Todd'S Cycle 1-1/4" Touring Handlebar — TD-125-10B
Sale price£486.50
The details that matter
Details
Description
Todd'S Cycle 1-1/4" Touring Handlebar (manufacturer part TD-125-10B) is listed for the Harley-Davidson applications shown below. Key specifications: Black| Gloss; Steel. Check the exact model, year and market before ordering.
- Features 1-1/4" diameter in the clamping area
- Knurled clamping area
- Made in the U.S.A.
- Works with the OEM riser and clamps; have the correct wire exit location.
- Do not need to remove the stock pin in the OEM mount clamps; bars still have more than 35° of adjustment.
- Will work with hydraulic clutches.
Specifications
| Type/Bend | Ape Hanger |
|---|---|
| Center Width | 24 cm (9-1/2") |
| Controls Diameter Metric | 25.4 mm |
| Product Name | Handlebar |
| Clamping Diameter Metric | 32 mm |
| Color/Finish | Black| Gloss |
| Controls Diameter Imperial | 1" |
| Pullback/Sweep | 14,5 cm (5-3/4") |
| Material | Steel |
| Width Metric | 80.6 cm |
| End Rise | 25,5 cm (10") |
| Height | 28 cm (11") |
| Controls Diameter | 25,4 mm (1") |
| Width | 80,6 cm (31-3/4") |
| Handlebar Diameter Imperial | 1-1/4" |
| Handlebar Diameter | 32 mm (1-1/4") |
| Height Imperial | 11" |
| Rise Metric | 28 cm |
| Clamping Diameter Imperial | 1-1/4" |
| Pullback/Sweep Imperial | 5-3/4" |
| Center Width Metric | 24 cm |
| Pullback/Sweep Metric | 14.5 cm |
| Rise Imperial | 11" |
| Features | Accepts Heated Grips| Adjustable| For Hydraulic Clutch| Internal Wiring| Knurled Center| Notched for Throttle-By-Wire |
| Handlebar Diameter Metric | 32 mm |
| End Rise Metric | 25.5 cm |
| Units | Each |
| Base Finish | Gloss |
| Clamping Diameter | 32 mm (1-1/4") |
| End Rise Imperial | 10" |
| Base Color | Black |
| Rise | 28 cm (11") |
| Width Imperial | 31-3/4" |
| Height Metric | 28 cm |
| Center Width Imperial | 9-1/2" |
| Riding Style | Street |
Fitment
View exact Harley-Davidson applications
| Model | Years | Market | Position / notes |
|---|---|---|---|
| Harley Davidson FLTRX 1923 ABS Road Glide 117 | 2024, 2025 | ALL | |
| Harley Davidson FLTRXRRSE 2147 ABS Road Glide RR CVO 131 | 2025 | ALL | |
| Harley Davidson FLTRXSE 1977 ABS Road Glide CVO 121 | 2023, 2024, 2025 | ALL | |
| Harley Davidson FLTRXSTSE 1977 ABS Road Glide ST CVO 121 | 2024, 2025 | ALL |
Part Numbers
| Supplier SKU (Parts Europe) | 06016535 |
|---|---|
| Manufacturer Part Number | TD-125-10B |
Specifications
| Brand | TODD'S CYCLE |
|---|
