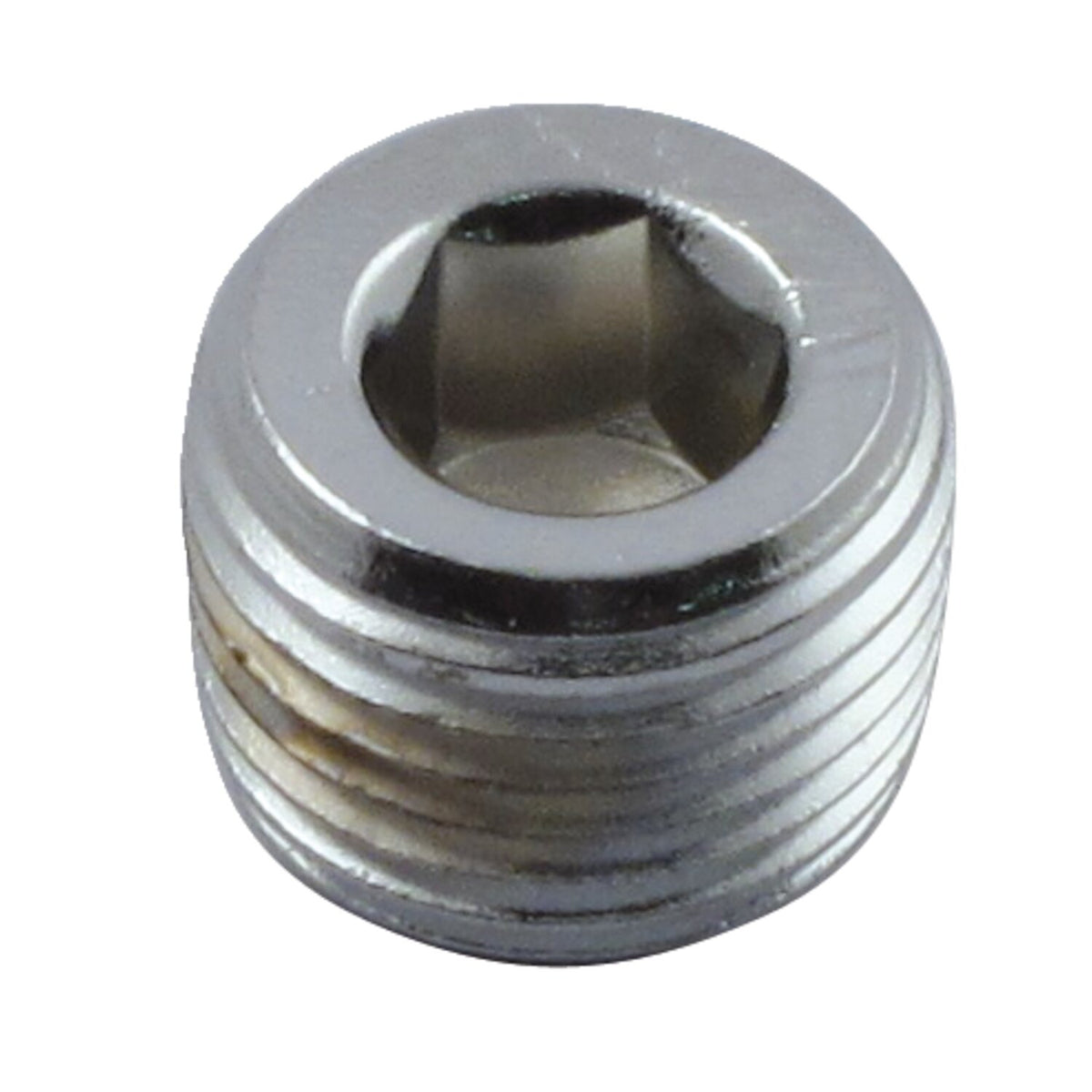

GW, 1/8-27 NPT allen pipe plug. Chrome

Description

NPT threads are 'self sealing' since they are slightly tapered, the diameter slowly becomes bigger towards to top.
OEM replacement reference 45830-48.
Note: 10.1mm is the approx. diameter of this plug in the middle of the plug, including the thread itself.
Note: For easier identification of the correct plug, the diameter (approximately measured in the middle of the plug, including the thread itself) is given in millimeters.
Note: Pipe plug sizes are totally different when compared to common US bolt sizes.

Specifications

Fitment

Fork slider drain plug: 49-E77 FL (NU).
Crankcase drain plug: 77-22 XL Sportster; 08-12 XR1200 (2 used).
Transmission: 01-16 Dyna, FLT/Touring;
Oil pump: 68-99 Big Twin
Oil tank & transmission.: 00-16 Softail.
Primary: 79-84 FLT/Touring; 82-84 FXR; 07-16 Softail, Dyna, FLT/Touring; 04-22 XL Sportster.
