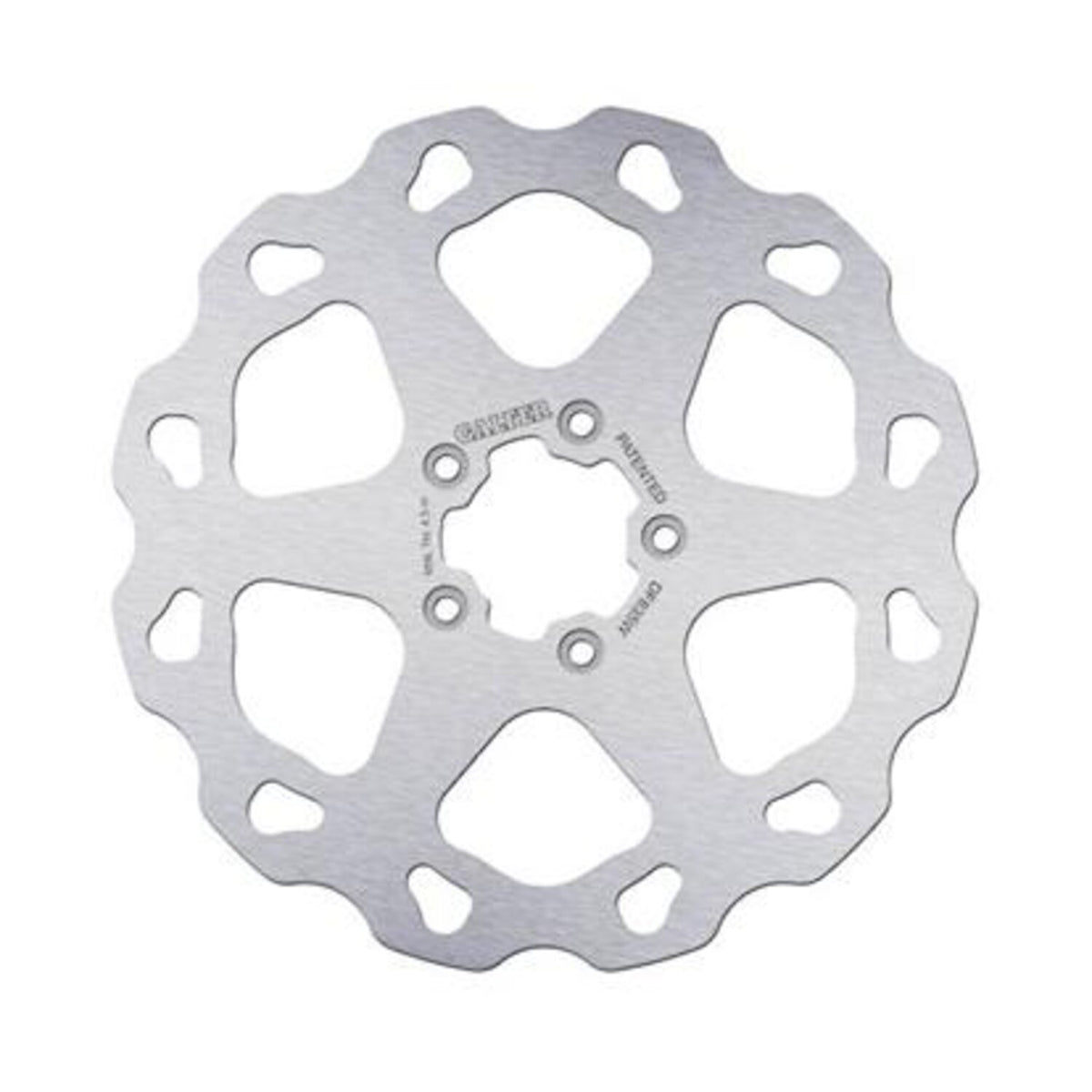

Galfer brake rotor. Wave. Fixed. 300x5mm

Description

300mm (11.8") OD, 5mm thick, 56.3mm ID, 8mm (5/16") counterbored mount holes, 3.25" BCD. Mount style B.
Fits OEM or accessory cast & laced wheels with 3.25" bolt circle mount holes.
Replacement reference 41500022 (left only) & 41500068 (right only), 41500172.
Note: With approval. Check your local MCS dealer or the MCS sales department for exact type of approval and validity on bike model and years on the test report.
Note: With approval. Check your local MCS dealer or the MCS sales department for exact type of approval and validity on bike model and years on the test report.
Note: All Galfer brake rotor designs are symmetrical. This allows left or right side installation without optical issues.

Galfer Disc Wave® discs are the most popular. Thanks to their larger brake track perimeter, they enhance cooling capacity and allow for even wear of the brake pads. They undergo a cathodic electrocoating treatment to prevent corrosion. In the case of floating discs, they offer an improvement in weight reduction, and there are two variants: those with a high-strength anodized aluminum center (7075 T6 - 6082 T6) and those with a steel core (AISI 420).

Specifications

Fitment

Front: 15-26 Softail (excl. 2017 FXSE); 06-17 (NU) Dyna (excl. 2017 FXDLS); 08-25 (NU) FLT/Touring (excl. 23-25 FLHXSE; 23-25 FLTRXSE; 24-25 FLTRXSTSE; 24-25 FLHX; 24-25 FLTRX); 09-26 Trikes; 14-22 (NU) XL. (Models with 3.25" bolt circle mount holes only)

Part numbers
