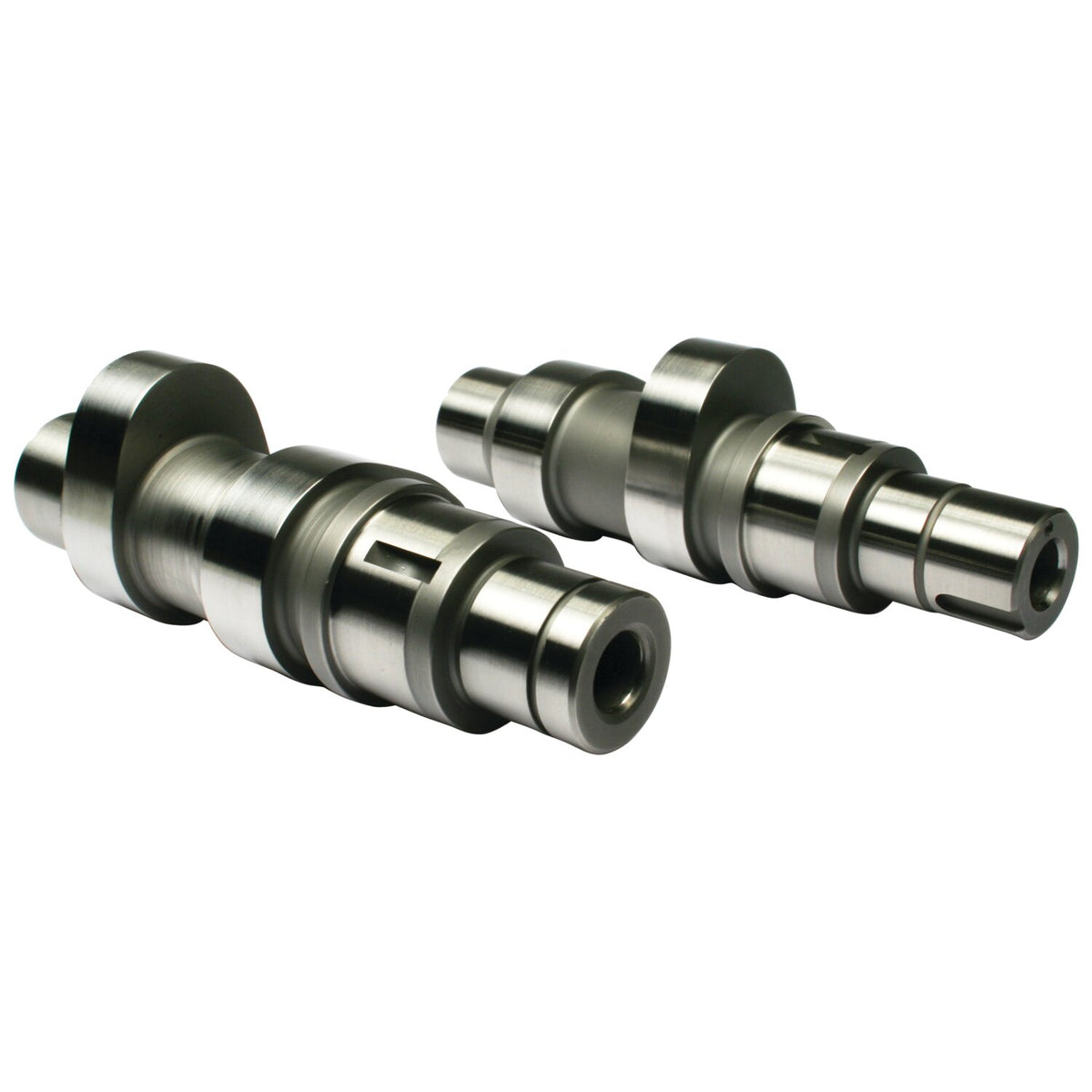

Feuling, Reaper gear driven 594G camshaft set

Description

Gear drive. .594" intake, .594" exhaust valve lift. Camshafts come without inner & outer drive gears.

Large displacement 103/110/124". Power band 2200-6250 RPM with excellent performance in heavy bikes. For 95" high compression engines upper RPM power. Works well with higher compression ratio but smaller engines require it. High lift springs, pushrods, lifters, carburetor / throttle body work, performance exhaust, intake & clutch work required.



Note: These high lift cams come with smaller base circles and will therefore require adjustable pushrods to compensate for the additional length required.

Note: Gears must be purchased separately. Installation is a simple press-on installation. If you have gears from your current, Andrews or S&S gear drive cam, these can be re-used or a new S&S set (503606) purchased.

Specifications

Fitment

99-06 Twin Cam A/B (NU) (Excl. 2006 Dyna)
