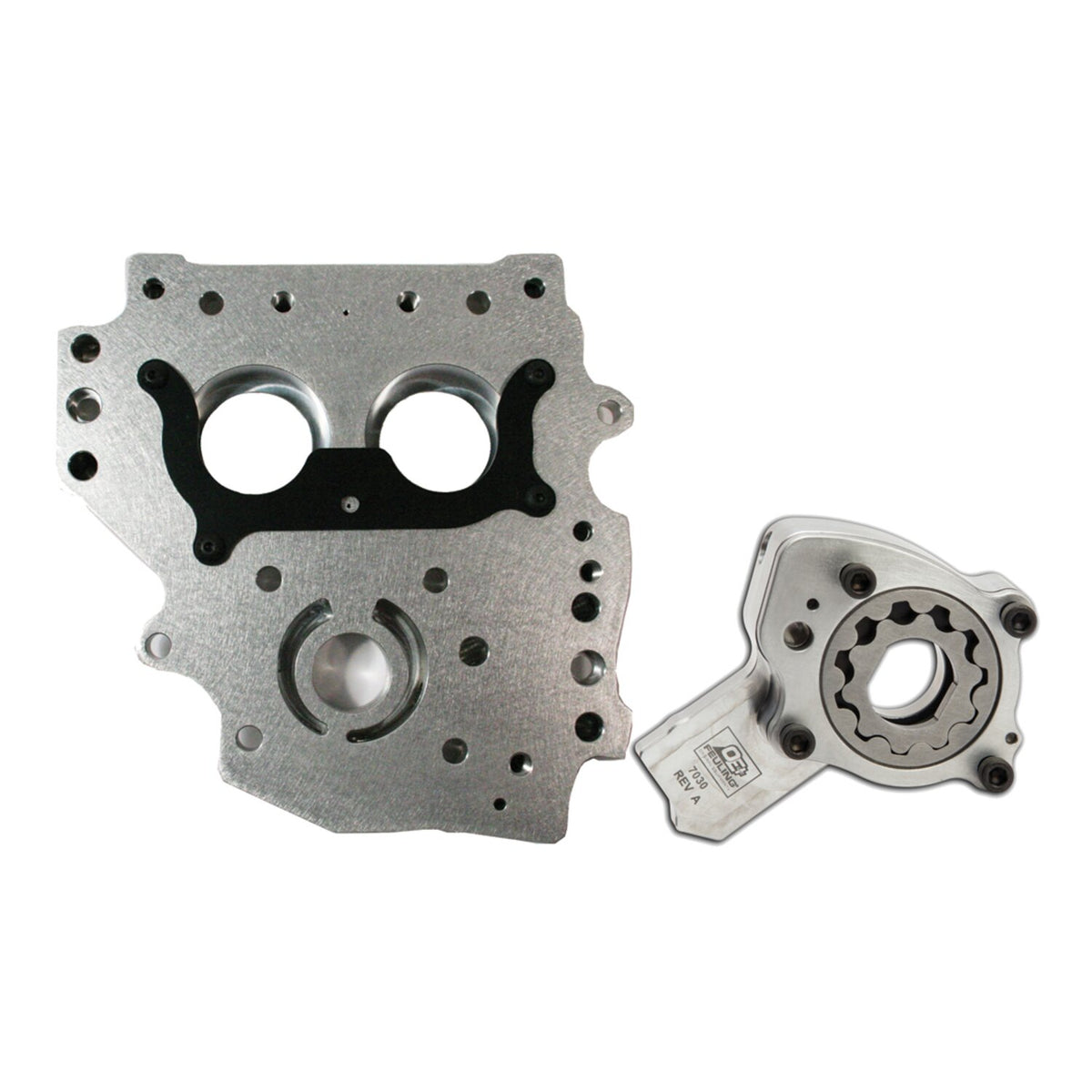

Feuling, OE+ Oiling System 99-06 to 06-17 conversion

Description

With a special 99-06 to 06-17 conversion cam plate, designed to run the early 99-06 Twin Cam style chain drive camshafts, while upgrading from the stock mechanical to the later and improved 07-17 hydraulic style chain tensioner system.

A competitive priced upgrade to the stock oiling system. The Feuling OE+ billet oil pump and matched OE+ billet cam plate help increase oil pressure and return scavenge volumes. The OE+ billet cam plates have better rigidity and are machined to tighter tolerances than stock. The OE+ cam plate pressure relief valve and spring are seated and pre-set with a 50-60 psi pop off. OE+ oil pumps assemble without O-rings on the pump housings, similar to the OEM and SE oil pumps. Includes bearing retainer plate and hardware.

Note: Requires separate purchase of OEM style hydraulic chain drive tensioners, chains & front sprockets, available as Feuling kit 566031 (for 01-06 Softail; 01-05 Dyna; 02-06 Touring, models without a cam chain position sensor) or 707251 (for 99-00 Twin Cam; 2001 FLT, models with a cam chain position sensor).

Specifications

Fitment

99-06 Twin Cam (excl. 2006 Dyna) (NU)

Part numbers
