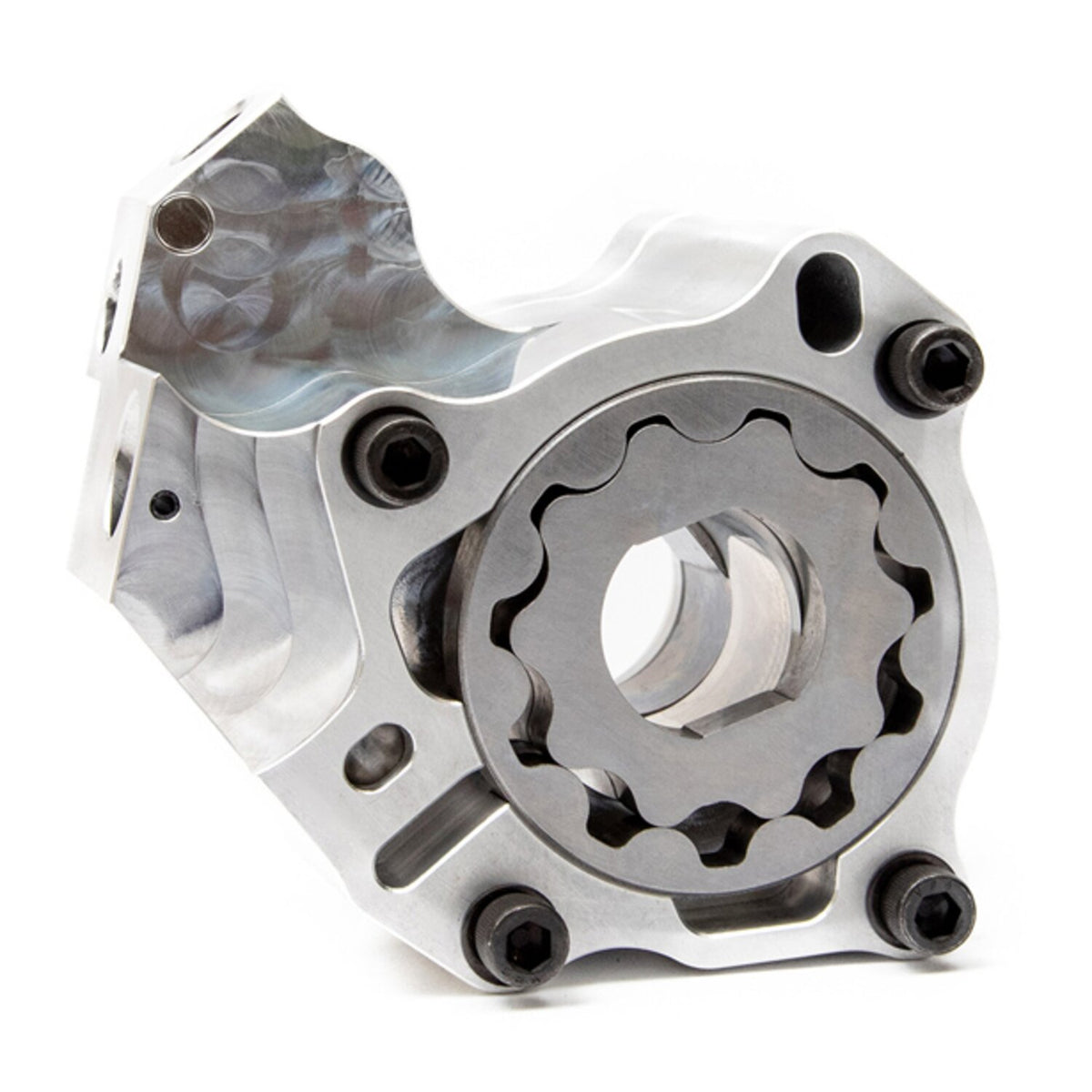

Feuling, HP+ High volume oil pump. Water Cooled.
Choose options
The details that matter
Details
Description

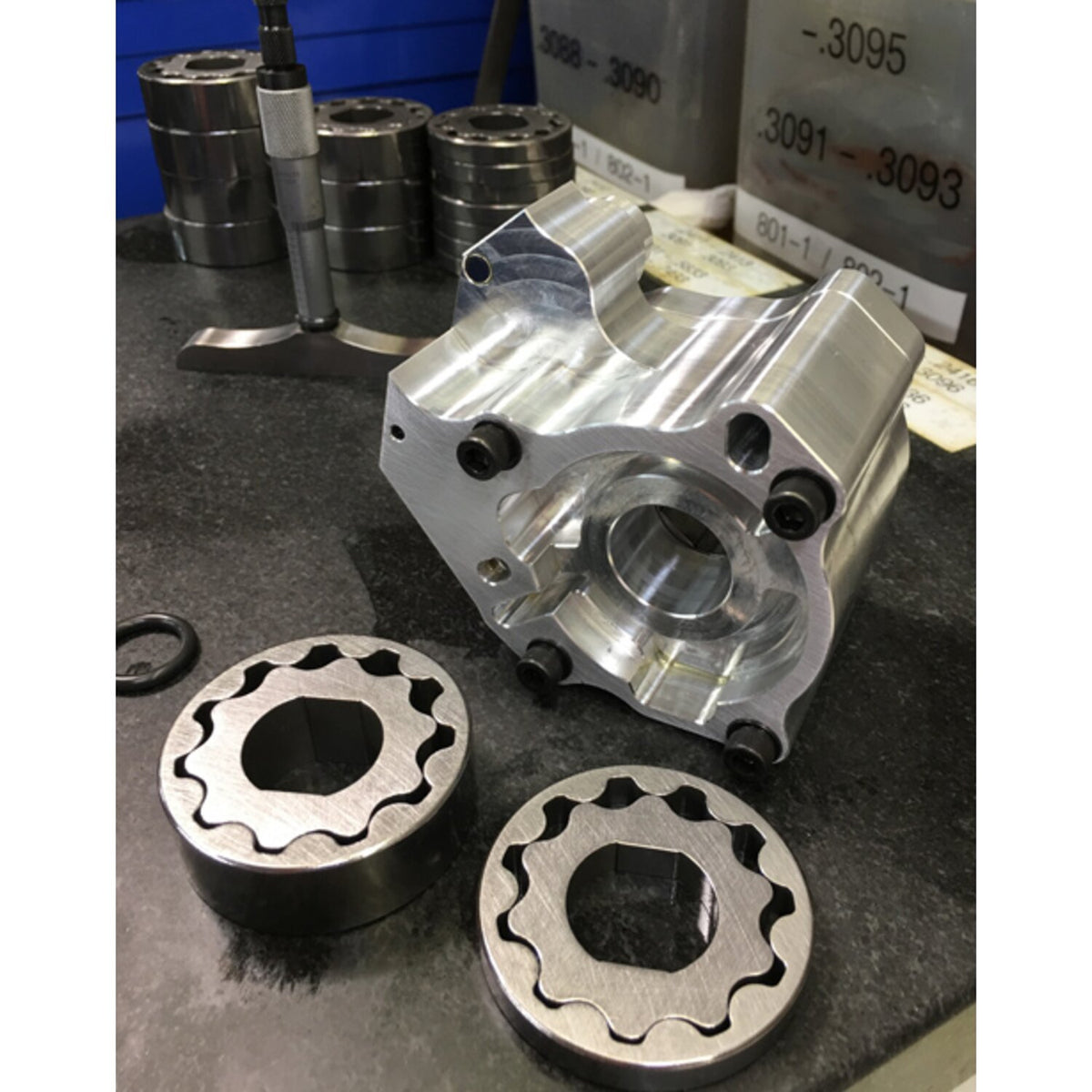

Billet CNC machined 6061 aluminum with high flow 2.250" chromoly gerotors. Offers 68% oil feed volume, 42% more scavenge volume, +27% pressure and scavenge gear over stock. Magnets catch small steel particles and help prevent oil pump damage. Each pump is bench tested before it is shipped. The relief valve is seated and sealed to a minimum of 30 psi with full pop off at 55-60 psi. The optimized passages, port holes and galleys requiring them to be matched up to the Feuling 588056 High Flow cam plate.
Note: When running the Feuling HP+ oil pump you must use Feuling 588056 high flow cam plate.
Note: Gear drive cam requires the use of 566113 block-off plate.
Specifications
| Unit | 1 |
|---|
Fitment
17-26 M8 Touring. (Water cooled models only)
Part numbers
| Supplier SKU | 588054 |
|---|---|
| Manufacturer part | 7019 |
Specifications
| Brand | Feuling |
|---|---|
| Category | Oil pumps |
